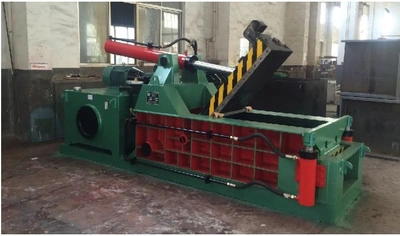

NEW 2021 ZUICK ZK-1350

Sr. No.


Type name


Model or Data




Main cylinder


Cover cylinder


Cylinder of Bale-out




1


Nominal pressure


1350KN


500KN


300KN




2


Inner diameter of cylinder


φ255mm


φ160mm


2*φ110mm




3


Piston diameter


φ180mm


φ105mm


φ70mm




4


Stroke


1700mm


1360mm


260mm




5


System Max.pressure


25Mpa


25Mpa


15Mpa




6


Bale density


≥2.0 t/m3 (Light & Thin material)




7


Motor Power


22KW




8


Oil Pump


80YCY14-1B




9


Single cycle time


90 seconds (no-load)




10


Material box size


1400*600*600mm




11


Bale size


600*250*(250-500)mm




12


Bale weight


80-120kg




12


Bale-out


Forward out




13


Operation mode


Manual




14


Productivity


1-2 ton / hour (scrap iron)




15

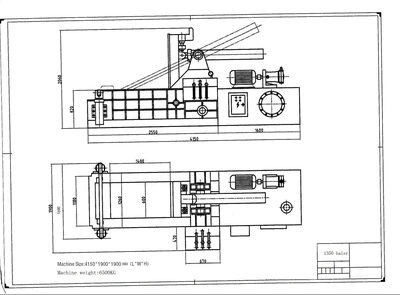

Machine size


4150*1900*1900mm




16


Voltage


230V/60HZ 3 Phase




17


Other


1. There are blades on both sides of door cover and material box

2. The whole machine is free of installation

Type: Selling
ETI: EE#040621
Status: In warehouse
Tonnage: 1350
tn
Power: 22 Kw
Delivery time: 4-5 weeks
