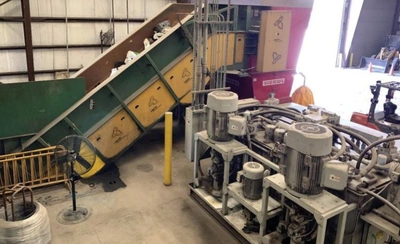

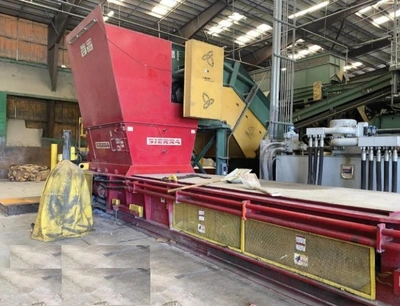

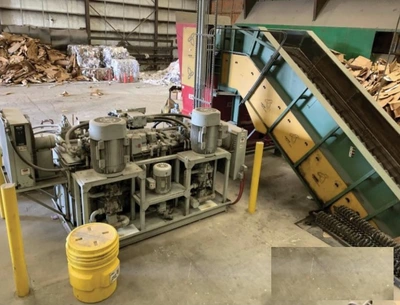

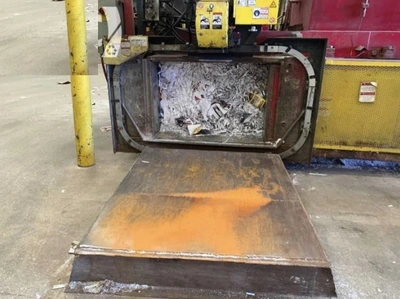

USED 2013 SIERRA REB-2 REB-2

Pirce Ex-Works  eastern USA.........US$ 220,000

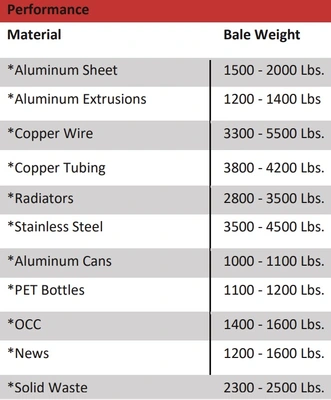

The REB-2 will also bale ALL your OCC, Paper and PET.

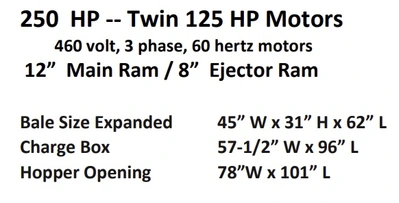

250 HP -- Twin 125 HP Motors
460 v/3/60 kz motors
12” Main Ram / 8” Ejector Ram
Bale Size Expanded 45” W x 31” H x 62” L
Charge Box 57-1/2” W x 96” L
Hopper Opening 78”W x 101” L

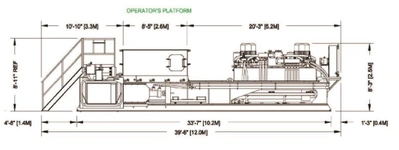

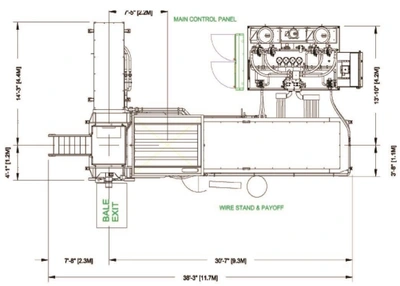

GENERAL LAY OUT --- LEFT HAND UNIT

TWO MACHINES AVAILABLE:
MACHINE#1:   RH Eject  machine HOURS: 19,277

MACHINE#2:   LH Eject   machine HOURS: 19,531

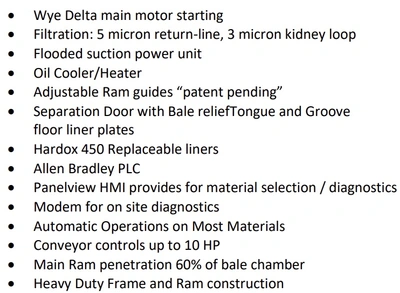

• Wye Delta main motor starting
• Filtration: 5 micron return-line, 3 micron kidney loop
• Flooded suction power unit
• Oil Cooler/Heater
• Adjustable Ram guides “patent pending”
• Separation Door with Bale reliefTongue and Groove floor liner plates
• Hardox 450 Replaceable liners
• Allen Bradley PLC
• Panelview HMI provides for material selection / diagnostics
• Modem for on site diagnostics
• Automatic Operations on Most Materials
• Conveyor controls up to 10 HP
• Main Ram penetration 60% of bale chamber
• Heavy Duty Frame and Ram construction

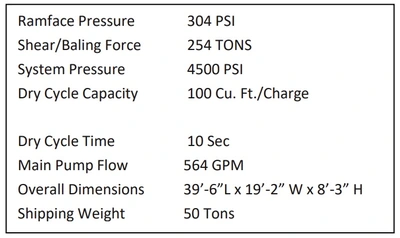

Ramface Pressure 304 PSI
Shear/Baling Force 254 TONS
System Pressure 4500 PSI
Dry Cycle Capacity 100 Cu. Ft./Charge
Dry Cycle Time 10 Sec
Main Pump Flow 564 GPM
Overall Dimensions 39’-6”L x 19’-2” W x 8’-3” H
Shipping Weight 50 Tons

Type: Selling
ETI: 76.000
Status: In warehouse
Power: 250 Kw
Hours: 19277
Delivery time: 1-3 weeks
