NEW 2024 ZUICK TIRE SHREDDERS ZUICK TZ-1800 (72
Overview
Description
SELLING: ESCOBAR TRADING, INC. - MIAMI,
???? ENRIQUE J. ESCOBAR
Name

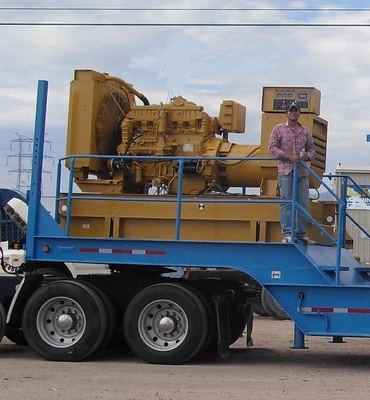

Diesel generating set
Diesel Generator set
500 kilo watts
Weight
5.2t
Size
3800*1700*2200mm
Oil consumption
158g/kw
Fuel
Diesel
Name

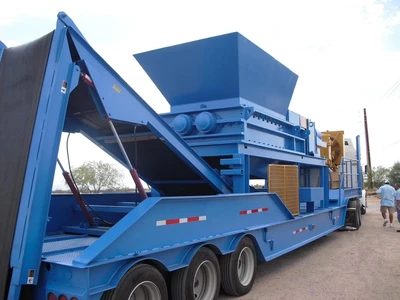

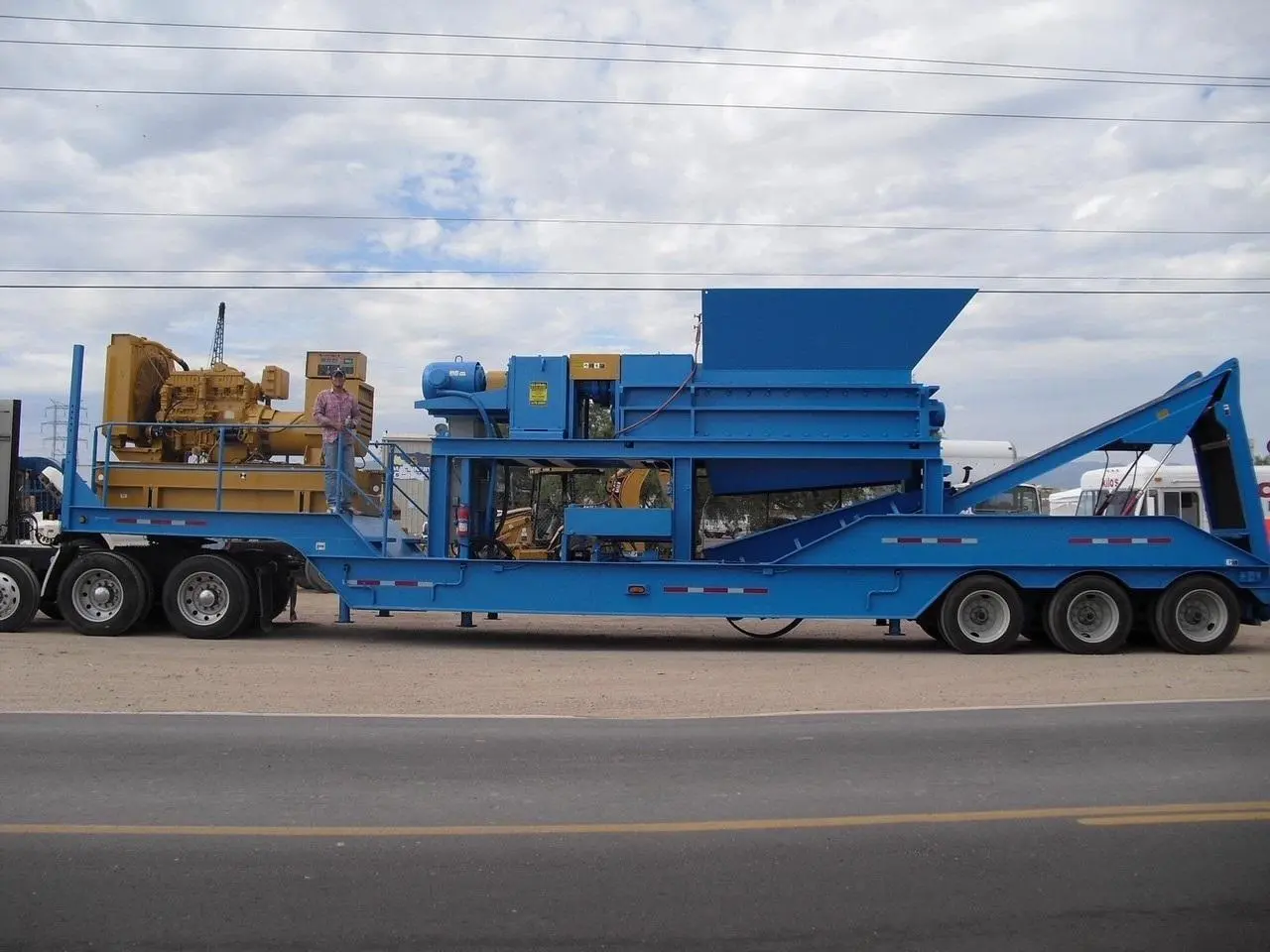

Moving trailer bed
Moving trailer size
10m x 2.5m
Height
0.7m
Load-bearing
15t
Weight
8 tons
Model
TZ-1800
Power
2 X 110 kW
Capacity
25 tons / hour
Input Size (diameter)
1850 mm
Output Size
200 mm
Blade quantity
24 pcs
Blade Material
H13K
Dimension
5.6*2*3.4 m
Blade’s corner
4 pcs
Blades thickness
75mm

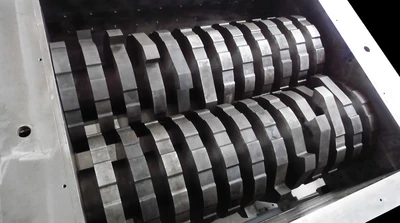

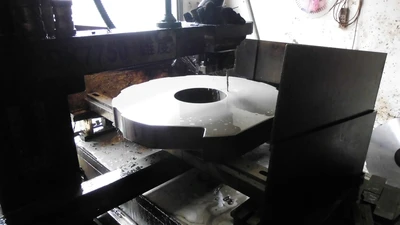

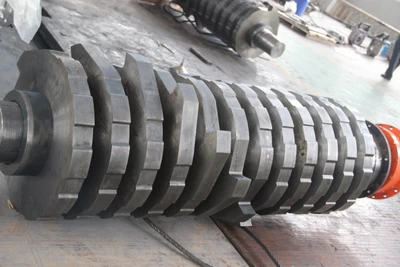

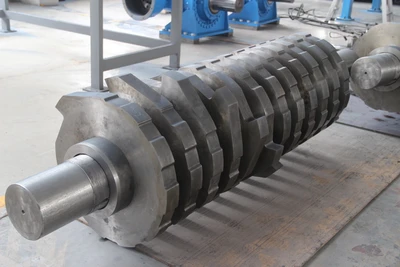

ZUICK TZ-1800 two shaft shredders are specially designed for rough shredding, low speed, high torgue operation minimize the noise and power consumption whist high throughput rates. The shredder blades are made from best quality steel and heatreated by Bodycote for optimal shredding performance. All the shredder blades thickness ranges from 25mm-152mm depending on type of material, output, final product.
Advantages:
? Overloading Automatic reversal function.
? Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
? The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.

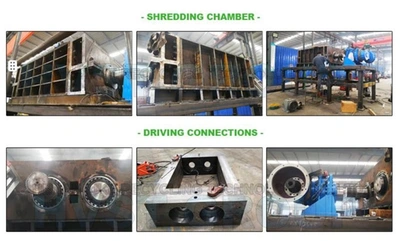

? Crushing chamber is open structure, easily for maintenance.
? High torque and strong power, ensures low noise and power consumption with high productivity.
? Blades are made of best material H13, long service life.
? Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
TERMS
1. Trading Terms
FOB Qingdao Port CHINA
2. Input Tire
≤ diameter 1850mm (car, truck, passenger, OTR tires, etc)
3. Output Size
50-200mm
4. Capacity
25 tons/hour
5. Power Consumption
Approximately 154 kWh per hour
6. Operators Required
1~2 operators
7. Terms of Payment
40% deposit in advance, the balance paid before shipment
8. Lead Time
About 2 months after the deposit received
9. Warranty
2 years for all the main machines. Wear parts and man-made damages are not covered by this warranty
10. Install & Training
1. We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
2. We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer
Specifications
Type: Selling
ETI: JESSIE
Status: In warehouse
Capacity: 25
Kg/Hr
Hours: 1
Delivery time: 70 -80 DA weeks
