NEW 2024 ZUICK ZUICK ZJ-1800

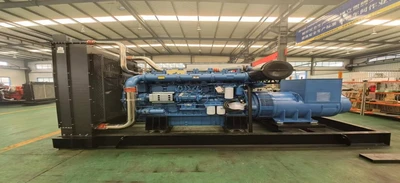

One.  LT-W900GF   900kw diesel generator

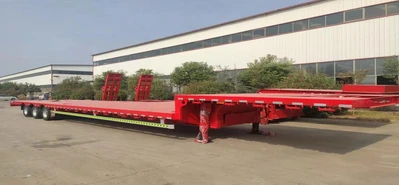

One Low deck tri-axel trailer  Size: 17.5m x 3.0 m  x  0.9m

PRICE EX-WORKS CHINA....US$262,500

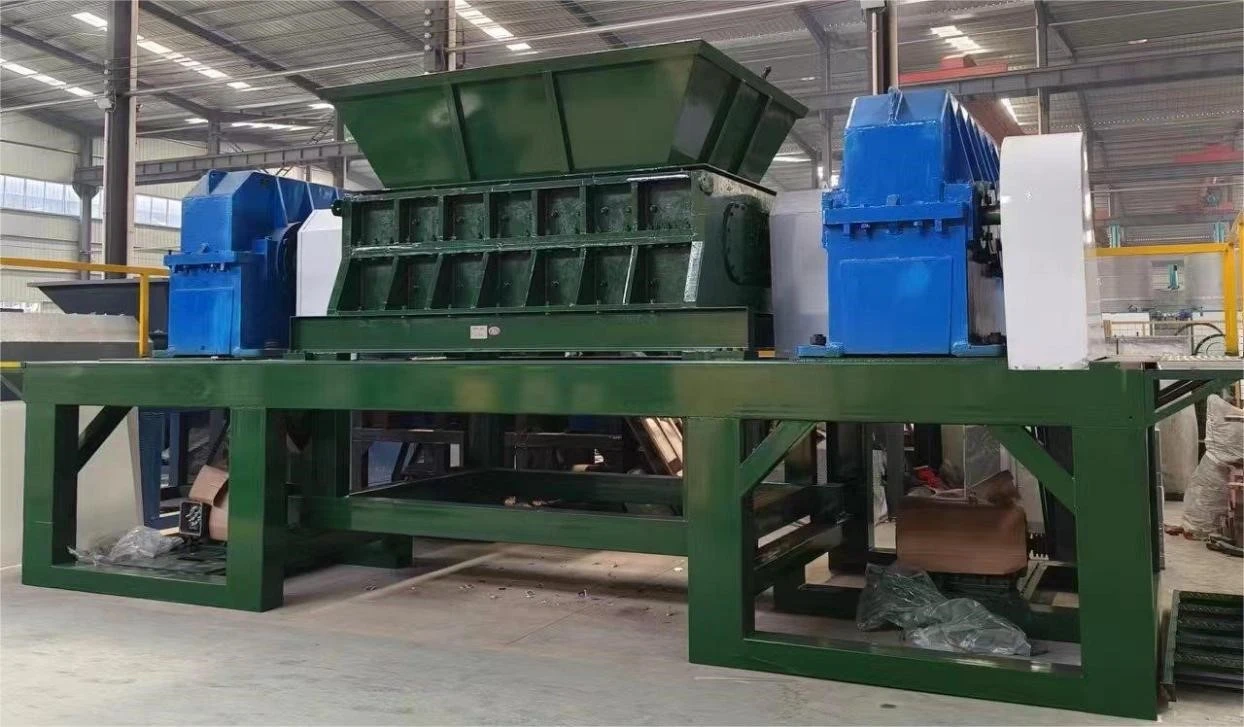

Shredder machine


Model


ZUICK   ZJ-1800 Shredder




Host machine


It is convenient to disassemble, with Q235 steel plate is welded.




Overall Demension?mm?


6500*2000*3800




Chamber size?mm?


1800*1500




Rotating speed?r/min?


8-10




Power?kw?


220kw-6class x2




Motor brand


Copper national standard




Gear box


Square BOX 750




Gear box speed ration


           80




Frame


300x400 Square tube welded



Blade


Qty?pcs?


customize




Material


H13




Hardness range


53-55 hardness




Diameter


800mm




Thickness


customize




Shape of blade


The outer teeth adopt the shape of small hook Angle outer triangle teeth, and the inner hole is eight square






Shaft


Shape of shaft


8 square




material


40#




Diameter?mm?


420




Length?mm?


2680




Spacer


Material


55CiCr




Qty?pcs?


customize




Bearing


Brand


haerbin




Power link


Host link mode


Chain coupling




Electric Control cabinet


Switch


triangle connection




Protection


Automatic reversal when current overload

Type?LT-W900GF


Steady-state voltage adjustment rate?%??≤±0.5




Rated Power?900Kw


Voltage fluctuation?%??≤±0.5




Rated Power factor?COSΦ=0.8????


Transient voltage adjustment rate?%???20??15




Output voltage?400V/230V


Load sudden voltage stabilization time?s??≤2




Rated current?1620A


Steady state frequency adjustment rate?%??≤±1




Rated Frequency?50Hz


Frequency fluctuation?%??≤±2




Speed?1500rpm


Transient frequency adjustment rate?%???10??7




Start Mode: Electrical Starting


Load mutation frequency stable time?S??≤2




Static speaker size?5200X2100X2550?L×W×Hmm?


Weight?6500kg

Type: Selling
ETI: #105.000
Status: In production
Capacity: 8
Kg/Hr
Power: 440 Kw
Hours: 1
Delivery time: 70-90 days weeks
