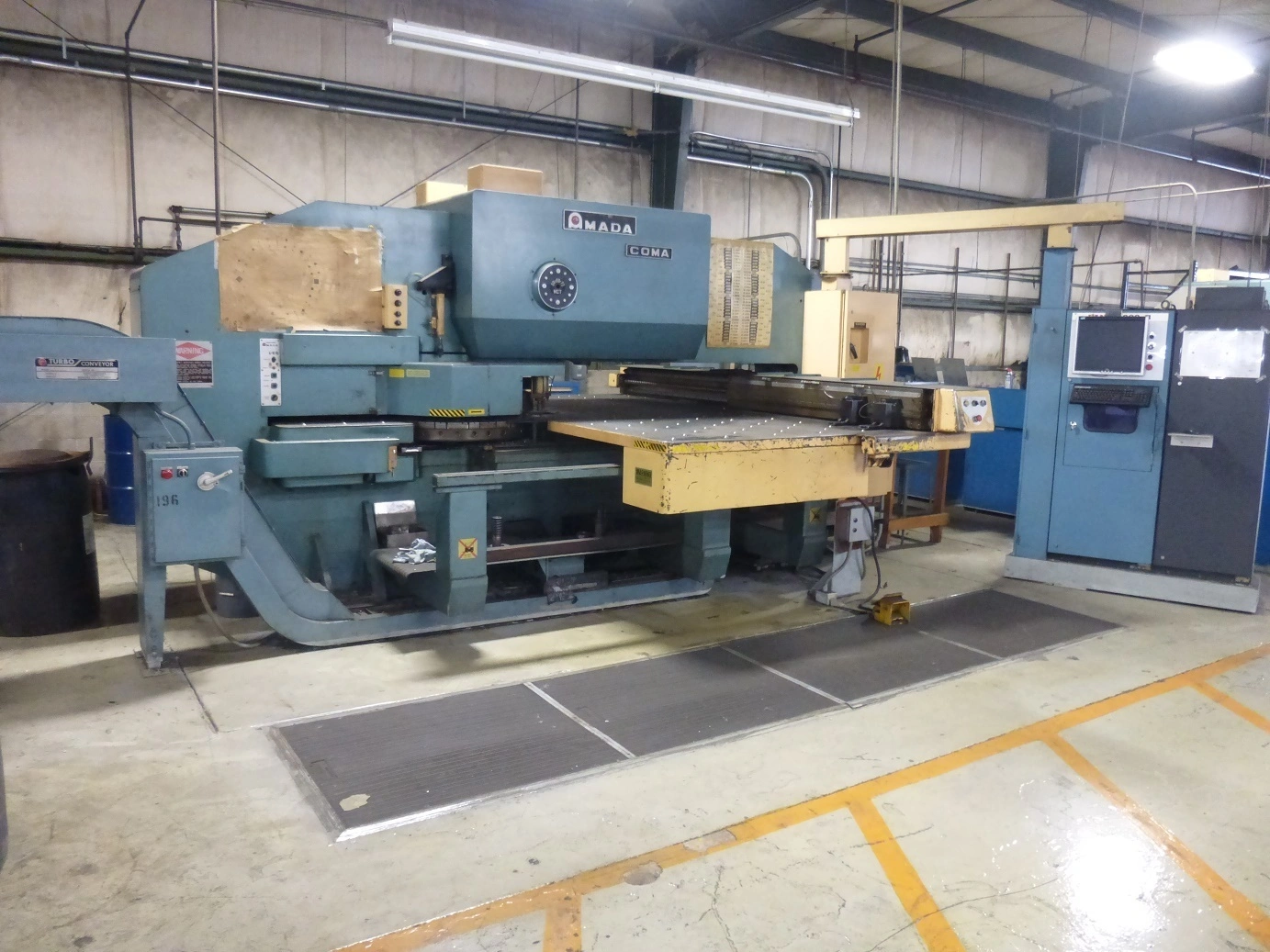

USED 1981 AMADA COMA 506072 CNC TURRET PUNCH

55 Ton, 60" Throat, 46 Station, Chip Conveyor, Under Power

Amada Model COMA 506072 CNC Turret Punch
Max. punch tonnage: 55 Tons Max. sheet thickness:
Throat depth: 60
Max punch diameter: 6
Ram stroke length: 1-1/4"
Max. strokes per minute: 300
Nibbling rate: 300 SPM
Hits per minute 1 move: 180
Working range w/o repositioning: 60" x 72"
Number of clamps: 2
Number of tool stations: 46
Turret speed: 20 RPM
Positioning speed x-axis: 1,575 IPM
Positioning speed y-axis: 1,575 IPM
Horsepower: 7.5 HP
Table type: Ball transfers
Air supply: 80 PSI
Control: Amadan 04PC
Voltage: 220/440
Dimensions: 204x150x93
Weight: 39,600 Lbs.
Equipped With
Fanuc 200B
Chip Conveyor
