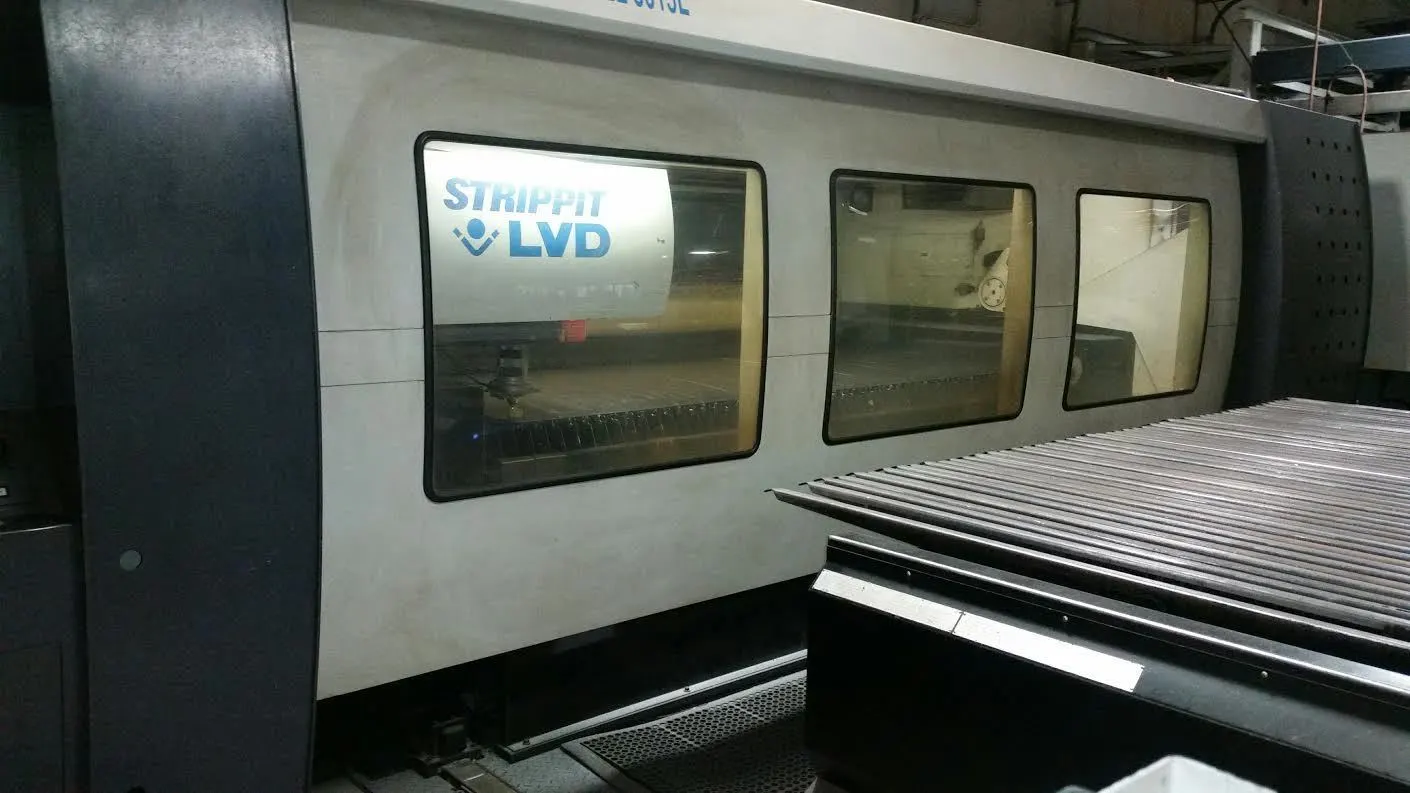

USED 2004 LVD STRIPPIT 3015L CNC LASER

LVD Strippit Axel 3015L CNC Laser Cutting System
Laser Output (Simultaneous): 4000 Watts
Maximum Sheet Size: 5' x 10'
X-Axis travel: 124"
Y-Axis travel: 62.8"
Z-Axis travel: 3.9"
Daylight: 11.8"
Maximum Positioning Speeds
X-Axis: 4724 IPM
Y-Axis: 724 IPM
X-Y Simultaneous: 6654 IPM
Z-Axis: 590 IPM
Repetitive Accuracy: +- 0.0008
Positioning Accuracy: +- 0.002"/M
Laser:
Type: GE-Fanuc HF excited fast axial flow O2 laser
Laser Power (+-2%): 4000W
Power Stability: +-2%
Wave Length: 10,6 micrometer
Mode: D
Divergence: < 2mrad
Directional Stability: < 0.2mrad
Pulses: up to 2kHz
Polarization: circular
Material Capacity:
Max. Sheet Thickness:
Steel: 3/4"
Stainless Steel (N2): 9/16"
Aluminum: 3/16"
Machine Options installed:
Quick change lens system equipped with 5" and 7.5' lenses
Crash protection
NC-focus
Capacitive height sensing built into the cutting head
High pressure cutting head
Built-in scrap conveyor
Edge and startup function
Beam compensation
3 assist gas system (Oxygen, Nitrogen, Shop Air)
Joblist
¯
Equipped With
Fanuc 160iLB CNC Control
30 Shelf Load Unload System
** 4000 hours on the blower **
