4 Axis (2) 19.6" X 19.6" Pallets, 50 Taper, 60 ATC, 12,000 RPM, 40 HP, Fanuc 16M CNC.
| size | 19" x 19" | 19" x 19" |
| X | 32 mm | 1.2598" |
| Y | 29 mm | 1.1417" |
| Z | 32 mm | 1.2598" |
| RPM | 15,000 RPM | 15,000 RPM |
| Taper | 50 | 50 |
| Pallet-W | 19.6 mm | 0.7717" |
| Pallet-L | 19.6 mm | 0.7717" |
| # Axis | 4 | 4 |

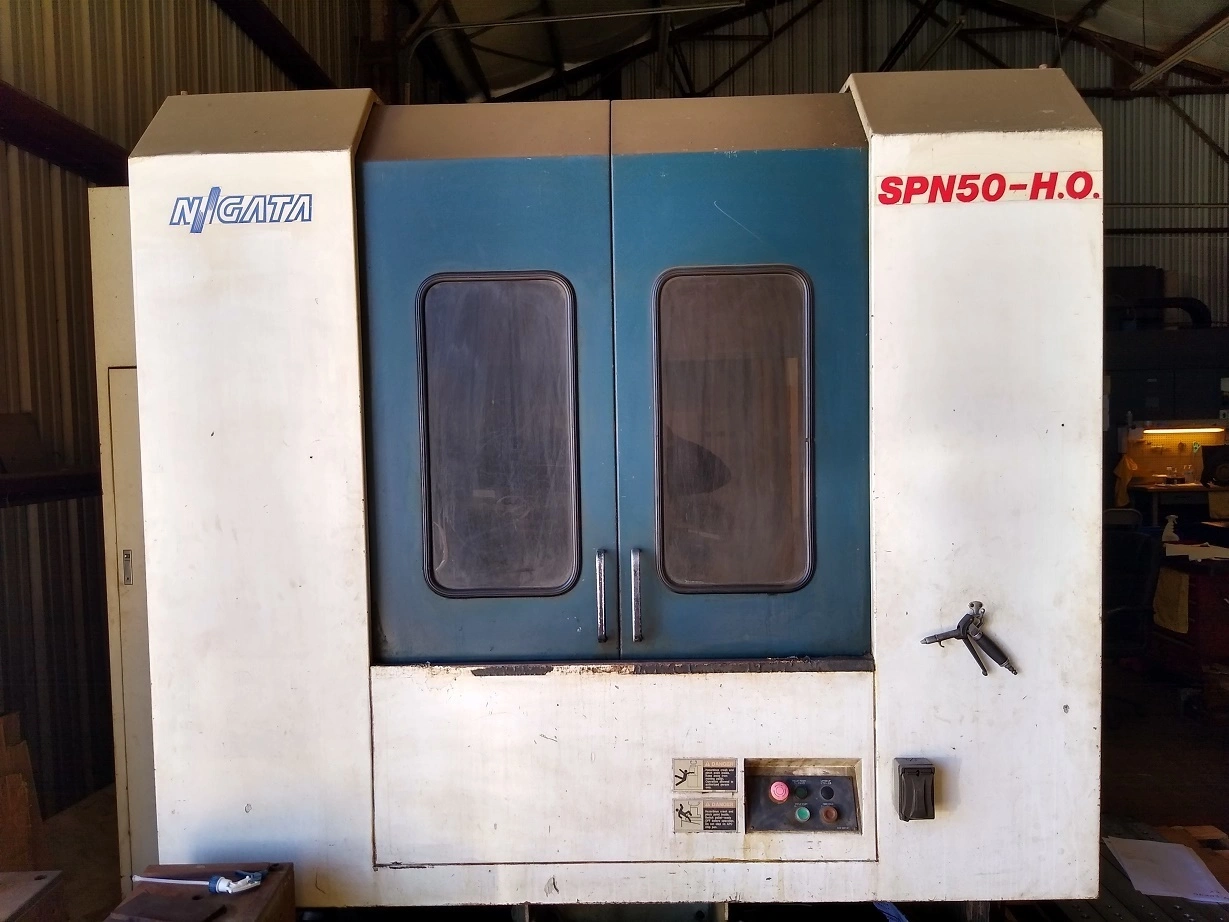

Niigata Model SPN50-H.O. 4 Axis Horizontal Machining Center
Specifications:
Pallet Size 19.65" x 19.65" (2)
Travels: X-Axis 32.49"
Y-Axis 29.52"
Z-Axis 32.28"
Spindle Speeds 50 to 15,000 Rpm
Max. Plallet Load 1,320 Lbs.
Spindle Taper Cat 50
Pallet Indexing Full 4th B Axis
Spindle Motor 40 Hp
Rapid Traverse Rate 2,362 Ipm X/Y/Z
Tool Changer 60 Atc
No. of Pallets (2)
Max. Cutting Feed Rate .04 to 1.575 Ipm
Spindle Center to Pallet 3.15" to 32.7"
Spindle Nose to Pallet 5.9" to 35.4" To Pallet Center
Current Electrical Set Up 400/3/60
Equipped With:
Fanuc 61iMB CNC
Hogh Pressure Coolant Through Spindle
Chip Conveyor
(1) Tombstone
