12" x 16" Capacity, Automatic, Blade Size 1" x 144", Blade Speed 50 - 450 FPM
| size | 12" | 12" |
| Rect-Cap (H) | 12" | 304.8 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 12.75" | 323.85 mm |

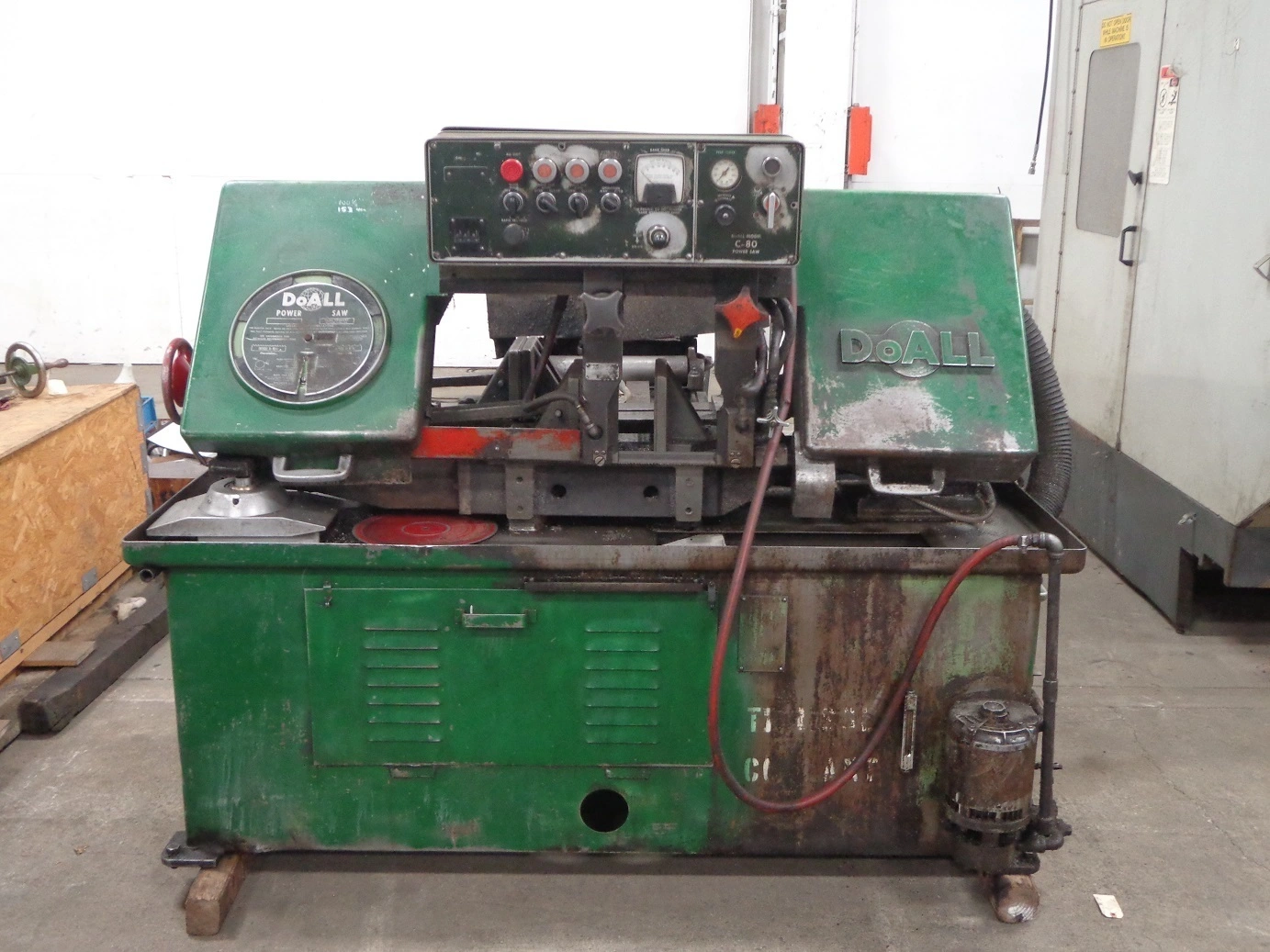

Do-All Model C-80 Automatic Horizontal Band Saw
Cutting Capacity: 12" x 16" & 12-3/4" Round
Blade Size: 1" x 144" x .035"
Carbide Blade Guides
Hydraulic Blade Tensioning
Variable Blade Speeds: 85 to 450 FPM with Tachometer
Variable Pressure Hydraulic Downfeed to Blade
Auto Bar Feed with Up to 20" Stroke & Multi Index
Hydraulic Shuttle Vise
Hydraulic Machine Vise
Parts Discharge Table: 42" L x 19" W
Infeed Table: 68" L with (3) 3-1/2" Dia. x 16" L Infeed Rollers on
16" Centers & Hydraulic Shuttle Vise
Blade Drive Motor: 5 HP, 3 Phase, 60 Cycle, Presently 220 Volts
Hydraulic Pump Motor:
Coolant Pump Motor: 1/3 HP, 3 Phase, 60 Cycle, 230-460 Volts
Overall Dimensions: 11' L x 7' W x 60" H
