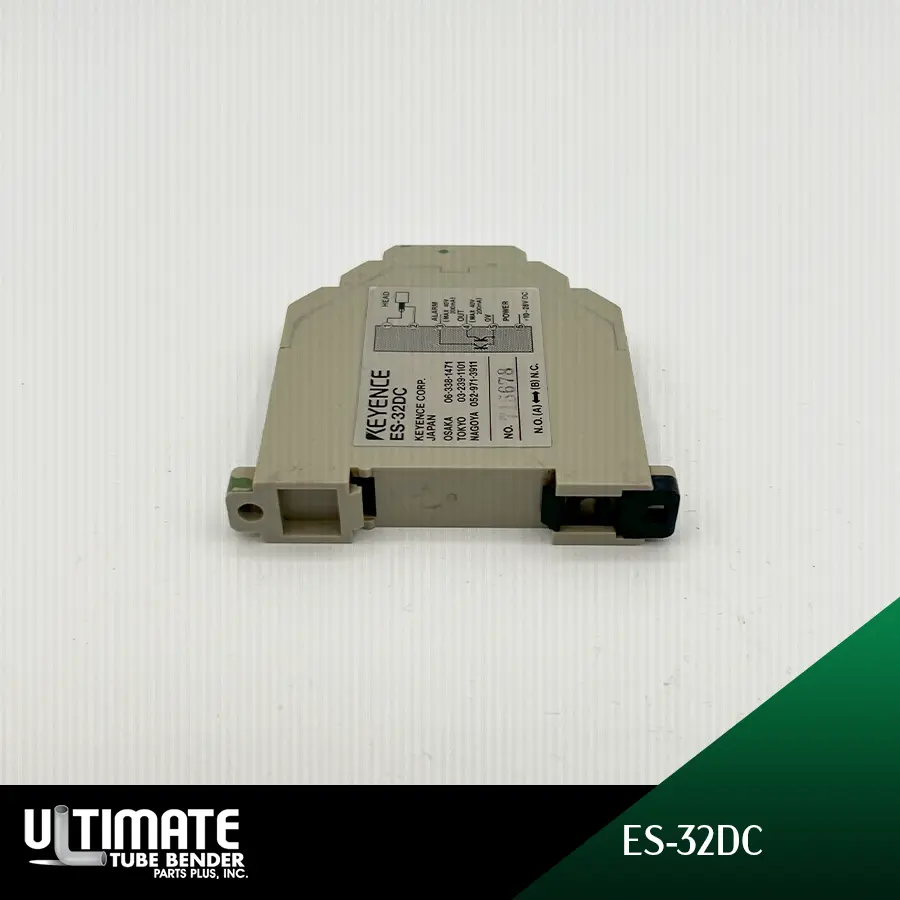

USED KEYENCE ES-32DC

Keyence ES-32DC NPN Amplifier Unit

Type: DC NPN output amplifier unit

Operation Mode: Switch-selectable NO/NC operation

Indicator: Equipped with a red LED output indicator

Output Control:

Control output up to 200 mA (40 V) maximum
Residual voltage: 1 V maximum

Disconnection Alarm Output:

100 mA (40 V) maximum
Residual voltage: 1 V maximum

Response Time: 1 ms maximum

Temperature Characteristics: ±8% of detecting distance at 23°C, within a range of 0 to 50°C

Sensitivity Adjustment: Features a 15-turn trimmer for precise settings

Power Requirements: 10 to 28 VDC, Ripple (P-P) 10% or less

Current/Power Consumption: 18 mA maximum

Environmental Resistance:

Ambient temperature range from 0 to +50 °C
Relative humidity from 35 to 85% RH (no condensation)

Weight: Approximately 48 grams


1 In Stock
