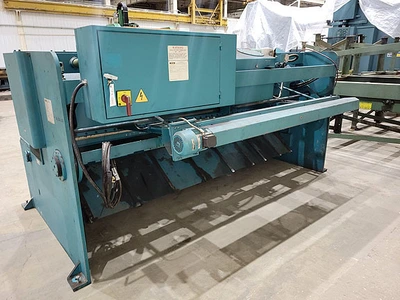

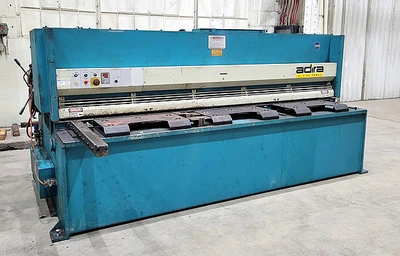

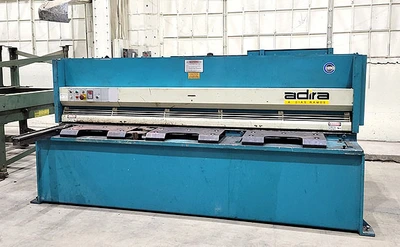

USED 2002 ADIRA GHS-0630

Type:

Power Squaring Shears (Inch)

Manufacturer: ADIRA

Model: GHS-0630

Condition: Used – Good

Year: 2002

Stock #: 3182

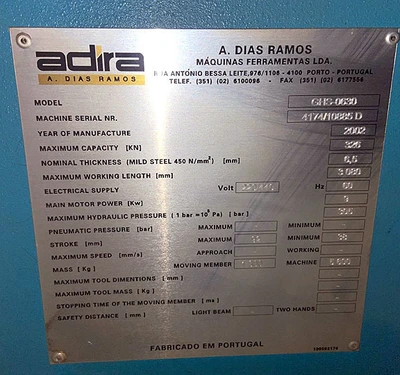

Serial #: 4174/10885
Description

CAPACITY:

MAXIMUM CUTTING THICKNESS 1/4″

MAXIMUM CUTTING LENGTH 120″

BACK GAUGE DEPTH 29″

NUMBER OF HYDRAULIC HOLD DOWNS 16

BLADE SIZE .25″ X 2.5″ X 122″

THROAT DEPTH 12″

TABLE HEIGHT 34″

RAKE ANGLE, FIXED 1-1/4 DEG

GAP ADJUSTMENT(12) .002” – .043”

MAIN MOTOR 12 HP

ELECTRICS 220/440 V, 3 PH

ELECTRICS, AS CURRENTLY WIRED 440 V, 3 PH

APPROX. DIMENSIONS, NO ARMS 140” X 68” X 69”

APPROX. WEIGHT 12,350 LBS

EQUIPPED WITH:

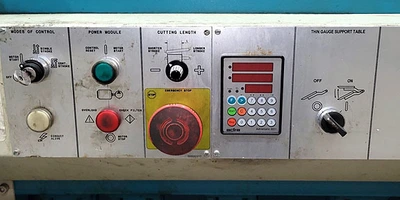

ADIRAMATIC 2011 SELF POSITIONING BACK GAUGE CONTROL WITH LED READOUT

SQUARING ARM

ADJUSTABLE STROKE LENGTH

INFINITELY VARIABLE BLADE GAP ADJUSTMENT

FLUSH FLOOR (NO PIT)
