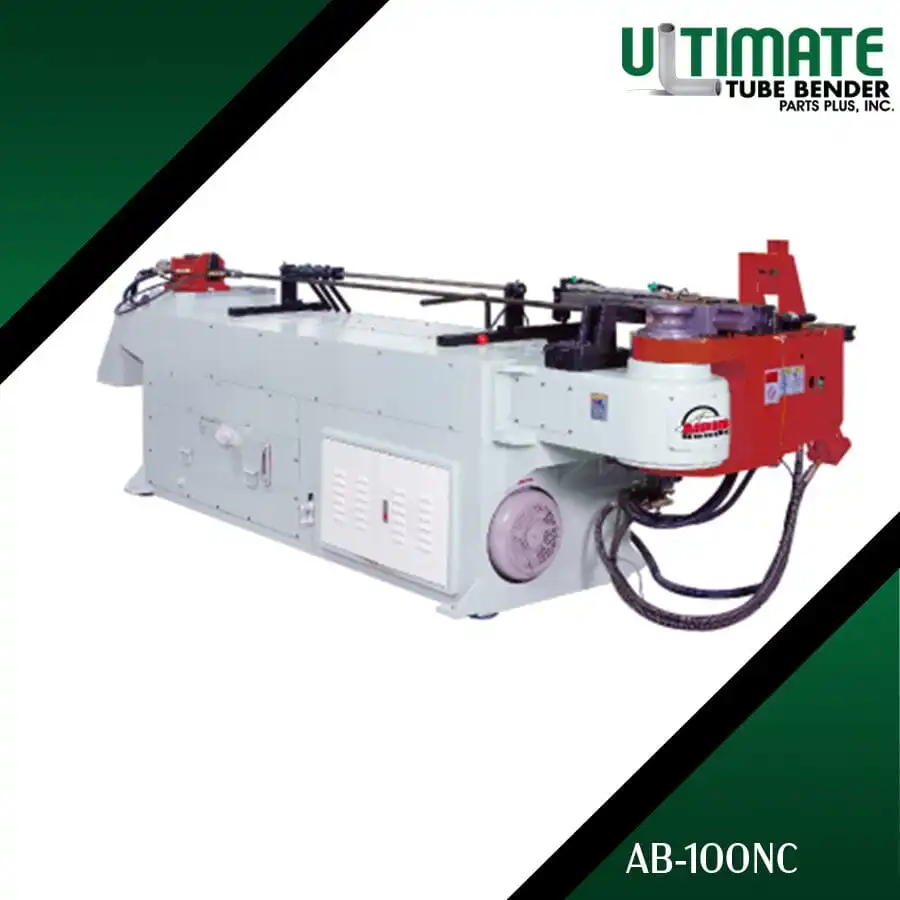

Alpine AB-100NC Hydraulic Tube Bender

Alpine AB100NC: Elevating Industrial Bending Capabilities
The Alpine AB100NC Hydraulic Tube Bender is the solution for industries seeking to push the boundaries of tube bending. Its power, precision, and versatility make it an essential tool for any operation aiming to enhance productivity and tackle complex bending tasks.
Key Features:
Broad Range: Capable of bending tubes up to 100mm in diameter, the AB100NC is suited for extensive industrial applications requiring substantial bending capacity.
Precise Bending: Features advanced technology for precise control over every bend, ensuring accuracy and consistency.
Heavy-Duty Performance: With its sturdy build, the AB100NC stands up to the demands of heavy industrial use, maintaining performance over time.
Integrated Safety: Equipped with enhanced safety measures, it provides a safe working environment while maintaining high operational standards.
Applications:
Suited for heavy industries such as construction equipment manufacturing, large vehicle assembly, and infrastructure projects requiring large diameter tube bending.
Standard Machine and Accessories
Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
