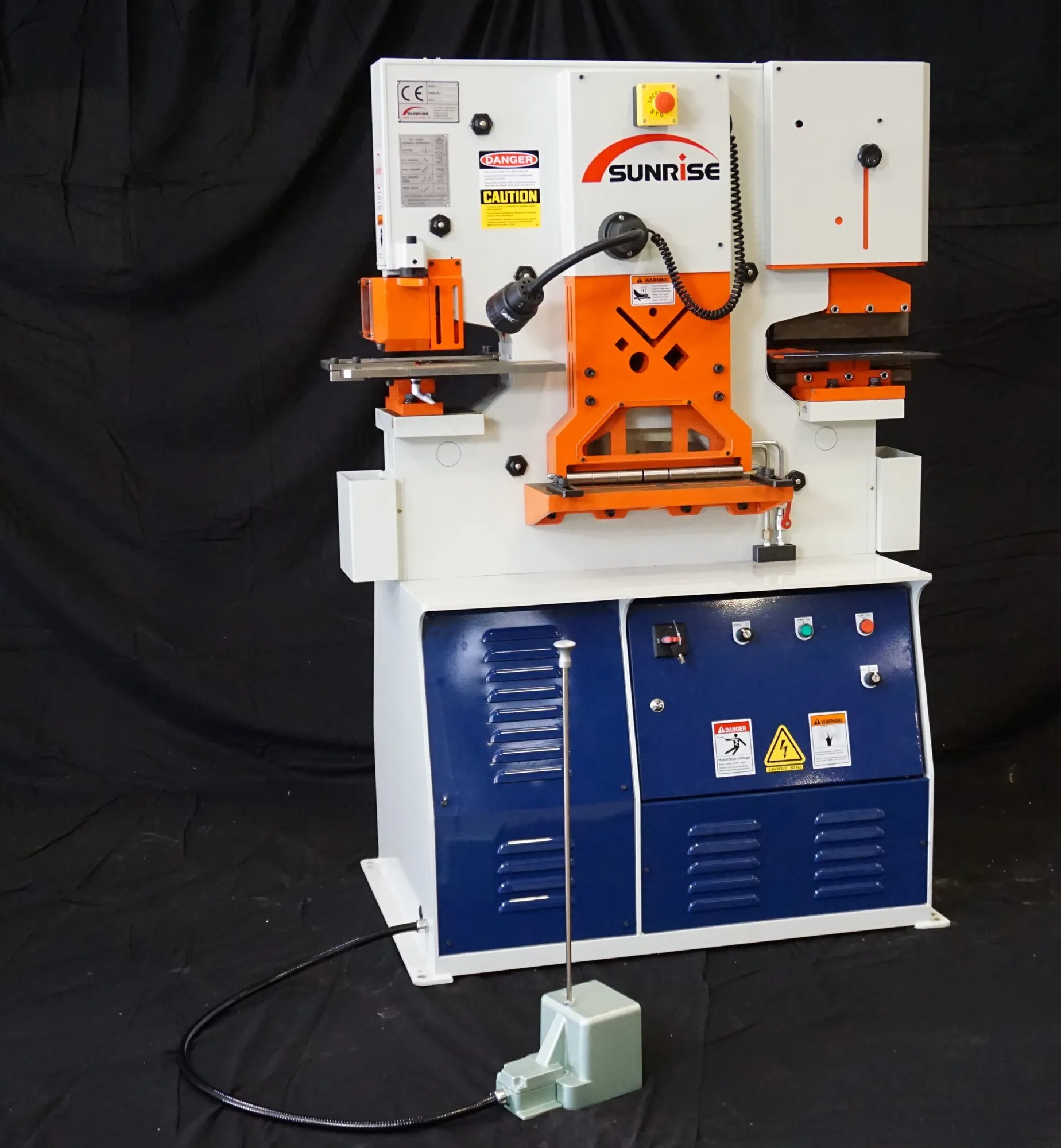

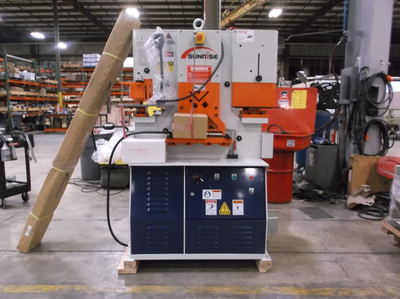

NEW SUNRISE IW-66KB

SUNRISE IW-66KB

The IW-66KB is the latest member of the popular K-Series ironworkers by SUNRISE. The 66KB includes an integrated 12″ press brake with full gauging system at a comfortable working height as well as a hydraulic hold-down for all shearing functions. A new leader in multi-process ironworkers.
SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:

40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)

Machined Punch Gauge Table with X-Y Positioning System

Machined Notcher Gauge Table with X-Y Positioning

LED Magnetic-Base Work Light

Set of 11 Punches & Dies from 3/8″ – 1-1/2″

Structural Die Block for up to 1.5″ diameter hole capacity including overhang for angle.

Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB

Full tank of Hydraulic Oil

NEW HD Start Up Video including safety, maintenance and operation

Hydraulic Shearing Hold-Downs (Standard on IW-66K/KB)

Extensive List of Optional Equipment: Accessory PDF

SUNRISE offers one of the widest ranges of CNC options on the market today including semi and fully automatic punches, automatic shearing and new complete processing systems.
Model IW-66KB
66 Tons
8″ Throat
1-½”” in 7/16″ & 7/8″ in ¾“ Punch Capacity
4″ x 4″ x ⅜” Angle Shear
14″ x ⅝” Plate Shear
12″ Press Brake with Multi-Vee Die and Gauge System Notcher
7.5 hp Motor
2725 lbs
