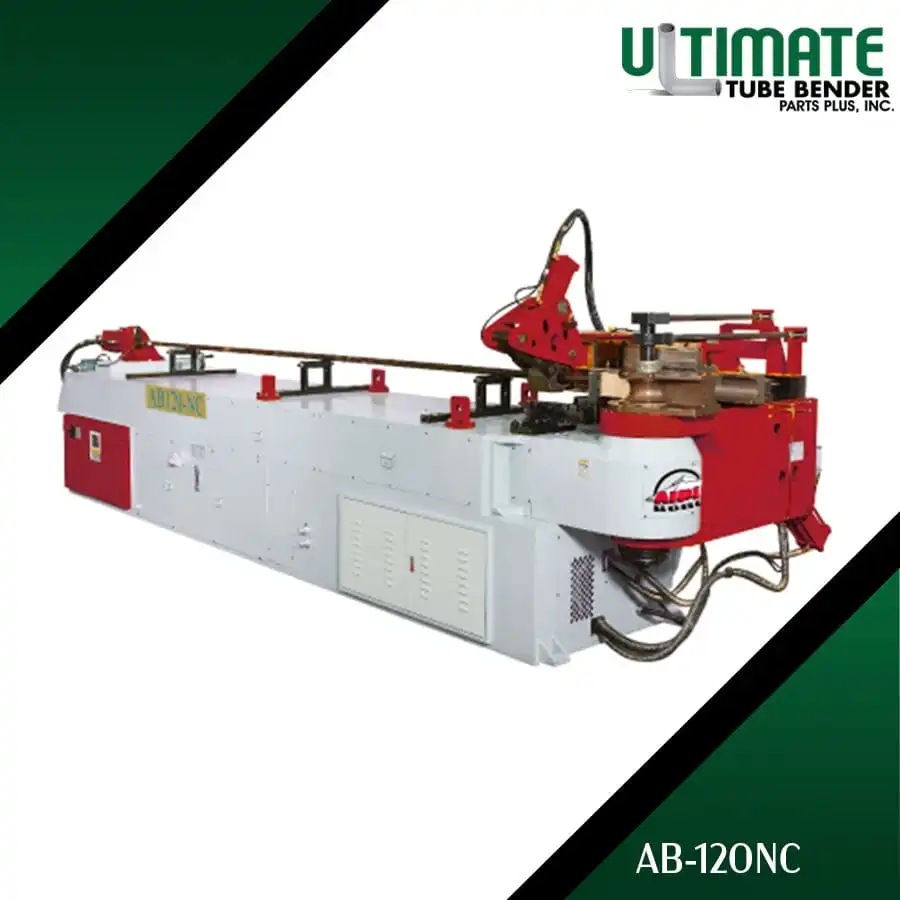

Alpine AB-120NC Hydraulic Tube Bender
Overview
Description
Alpine AB120NC: A Giant in Precision Bending
The Alpine AB120NC Hydraulic Tube Bender is a powerhouse designed for the most challenging bending operations. It’s the go-to machine for businesses that require both large capacity and precision to meet the demands of large-scale projects efficiently.
Key Features:
Exceptional Capacity: The AB120NC brings extraordinary bending capacity to your workshop, handling tubes up to 120mm in diameter for the most demanding projects.
Unmatched Precision: Delivers precise bends time after time, making it a reliable tool for critical applications where accuracy is paramount.
Durability: Its robust design ensures long-term reliability and performance, even in the toughest industrial environments.
Safety Oriented: Features top-tier safety protocols to protect operators, reinforcing its role as a key asset in any safety-conscious operation.
Applications:
Ideal for maritime, large-scale metal fabrication, and heavy machinery manufacturing, where size and precision matter.
Standard Machine and Accessories
Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
