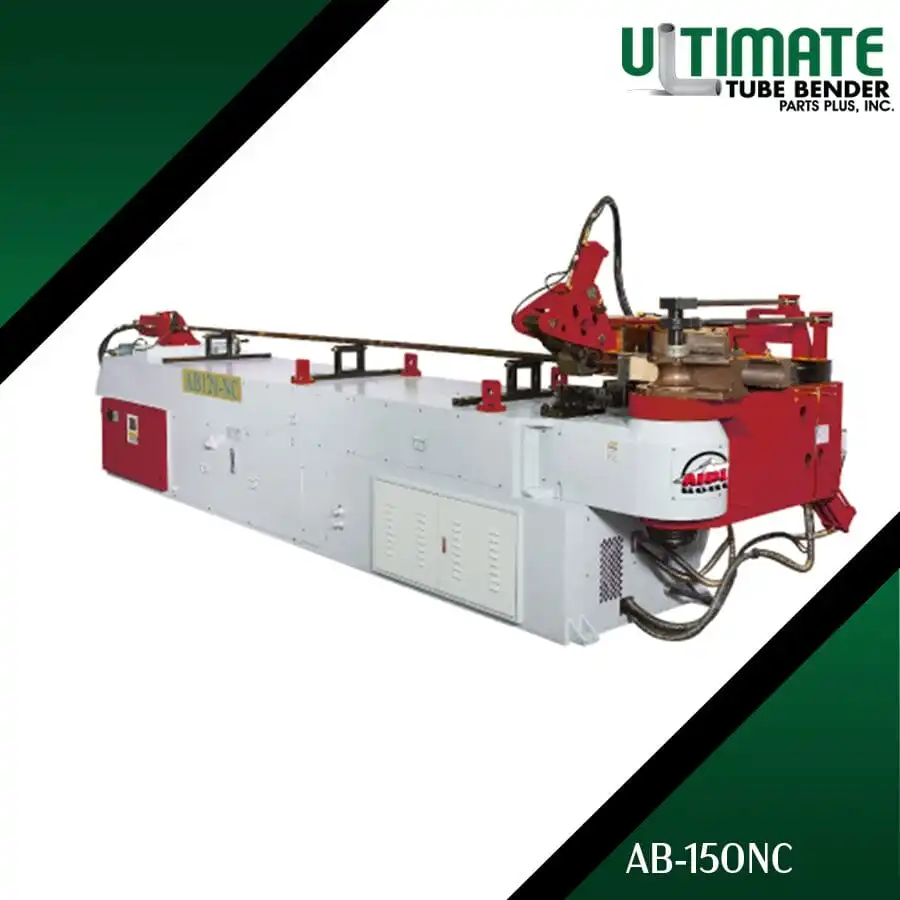

Alpine AB-150NC Hydraulic Tube Bender

Alpine AB150NC: Mastering the Art of Heavy-Duty Bending
With the Alpine AB150NC Hydraulic Tube Bender, tackling the most substantial and demanding bending tasks becomes not just possible, but efficient and reliable. It’s the ultimate tool for those who need to bend large diameter tubes with precision and confidence.
Key Features:
Superior Bending Power: Tailored for the most challenging projects, the AB150NC accurately bends tubes up to 150mm, offering unparalleled bending capabilities.
Advanced Precision: Utilizes cutting-edge technology to achieve precise bending results, ensuring operational excellence and product quality.
Industrial Strength: Crafted for durability, it withstands continuous operation in demanding settings, promising long-term dependability.
Safety Commitment: Designed with the operator’s safety in mind, incorporating multiple safety features to mitigate risks.
Applications:
Essential for very large industrial applications, including structural engineering projects, large industrial machinery, and in the energy sector for pipeline constructions.
Standard Machine and Accessories
Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
The Alpine AB-150NC Hydraulic Tube Bender is a robust tool engineered for precision bending of tubes up to 150mm in diameter. Ideal for heavy-duty applications in industries such as automotive, shipbuilding, and construction, this NC (Numerically Controlled) machine offers exceptional control and accuracy, ensuring high-quality bends with consistent results. The AB-150NC combines hydraulic power with advanced programming capabilities, making it versatile for both simple and complex bending operations.
AB38NC Specifications (up to 1.5″ OD Capacity)
