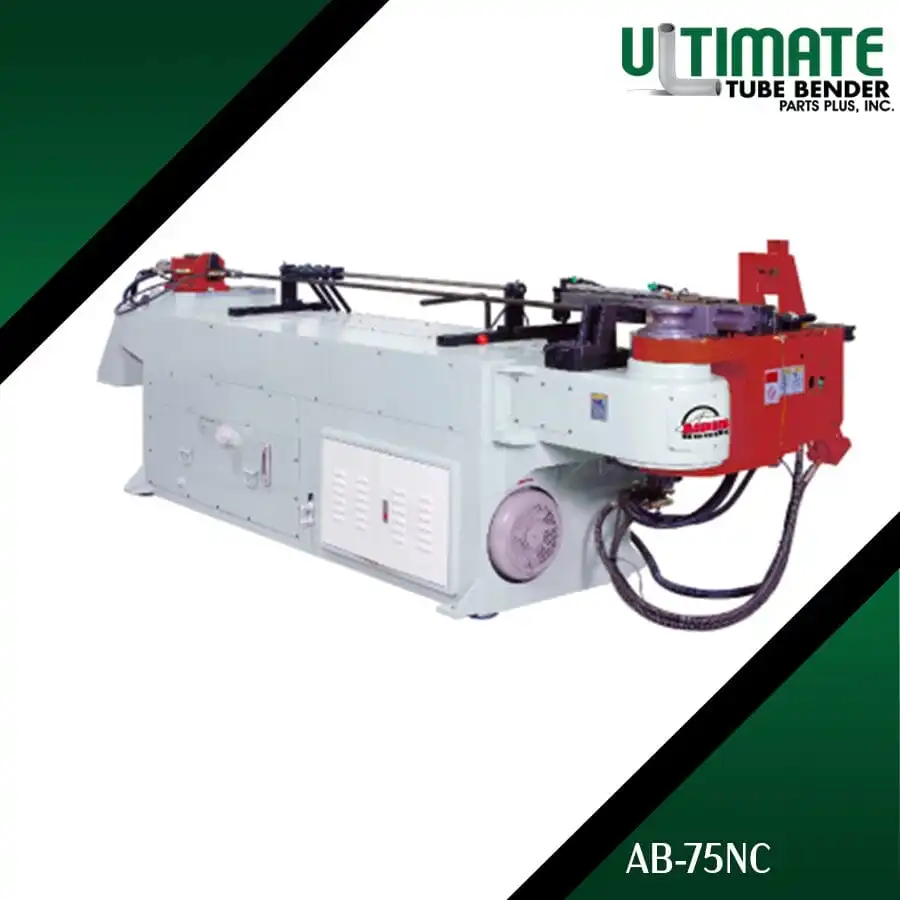

Alpine AB-75NC Hydraulic Tube Bender

Standard Machine and Accessories
Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal

AB38NC Specifications (up to 1.5″ OD Capacity)
