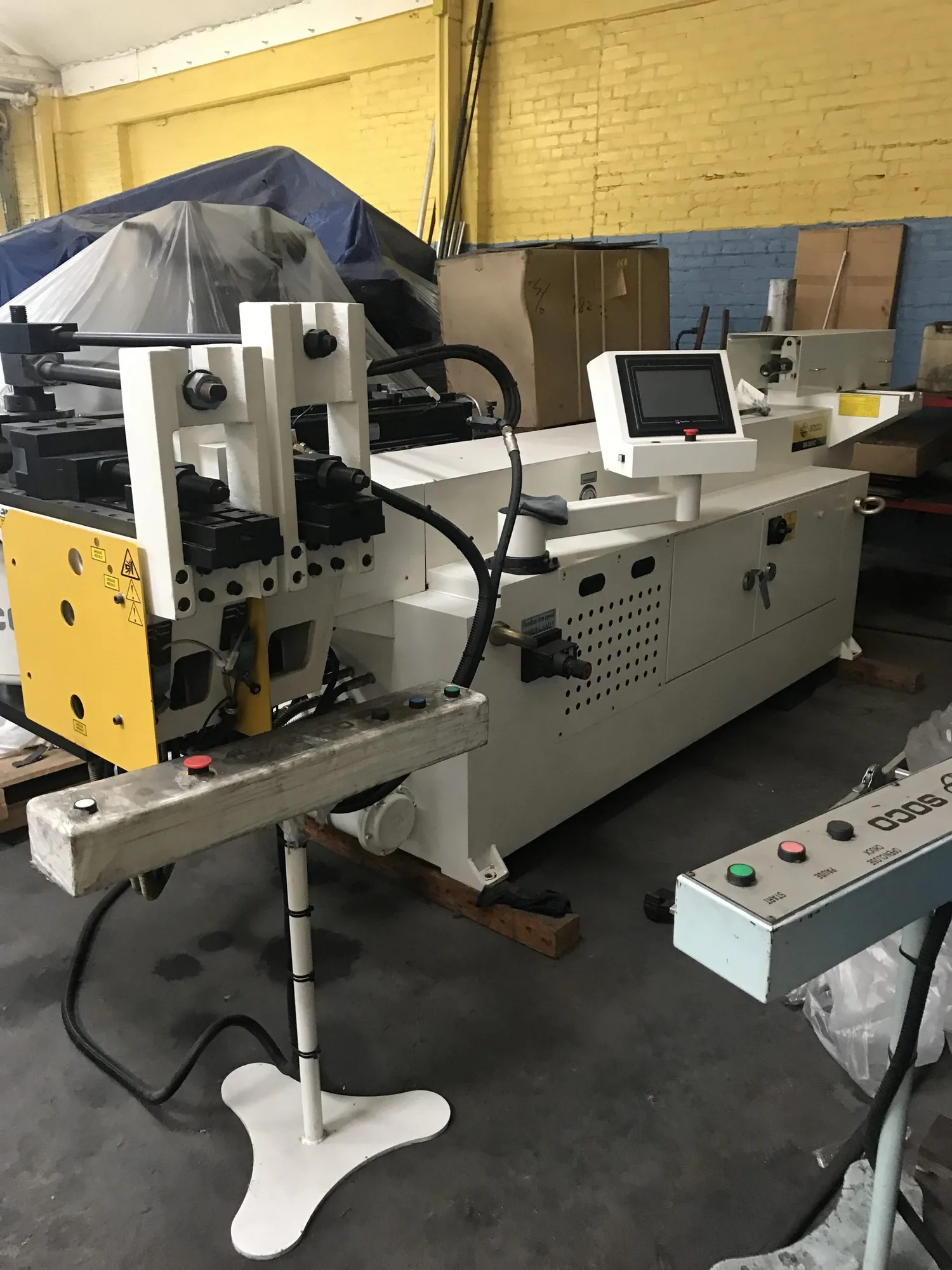

NEW 2009 SOCO SB-80NC

A) Control Features:

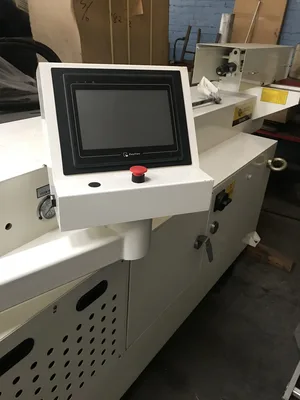

NC Control Unit with Touch Screen, providing an easy operational interface for machine control and easy data input.
Large capacity program storage facility (350+ programs)
Electronic self diagnosis and error display on screen
Programmable hydraulic mandrel extracting function

B) Machine Features:

Clockwise rotation with one stack radius
Heavily hydraulic powered with digital settings on screen and NC control for easy operation and maintenance.
Fast bending speed with settable degree of slow-down speed for final stage of each bend.

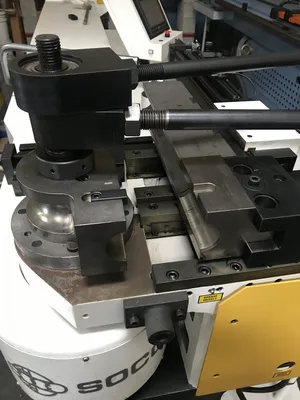

Standard with sliding type pressure die and optional hydraulic assistance boosting system.
Built-on wiper die seat and mandrel mast bar with connector.
Repeatability in bending accuracy of +/- 0.15 degrees.


C) Standard Accesories

One set of standard mandrel rod and master bar
One set of a hydraulic mandrel extraction system
One package of hands tools
One installed copy of SOCO’s proprietary control software
One mobile control panel and touch screen interface
One copy of the operation manual (English Edition)

D) Capacity:

Max. Tube OD mild steel                                                                    3.5” X 0.079” X CLR 1.5 D
(88.9 mm X 2.0 t X CLR 1.5 D)
Max. Tube OD mild steel                                                                   3.25” X 0.095” X CLR 1.5 D
(82.55 mm X 2.4 t X CLR 1.5 D)
Max. Tube OD stainless steel                                                              3.25” X 0.071” X CLR 1.5D
(82.55 mm X 1.8 t X CLR 1.5 D)
Max. Rectangular Tube dimensions (Mild Steel)                         3.54” X 1.77” X 0.126”
90 X 45 X 3.2 t
Max. Tube length with Mandrel                                                                                    112” (2850 mm)
Max. Bending Radius                                                                                                      10” (250 mm)
Max. Bending Angle                                                                                                                  185 degrees
Max. Hydraulic Pressure                                                                                                                       140 kg / cm2
Motor Power for Hydraulic system                                                                                                                15 HP
Gross weight                                                                                                                           5500 lbs. (2500 kgs.)
Machine dimensions                                                                                                     148” X 77” X 48”
376 cm X 196 cm X 123 cm
Power Specifications                                                                               Voltage _____ Hz / 3 phases
