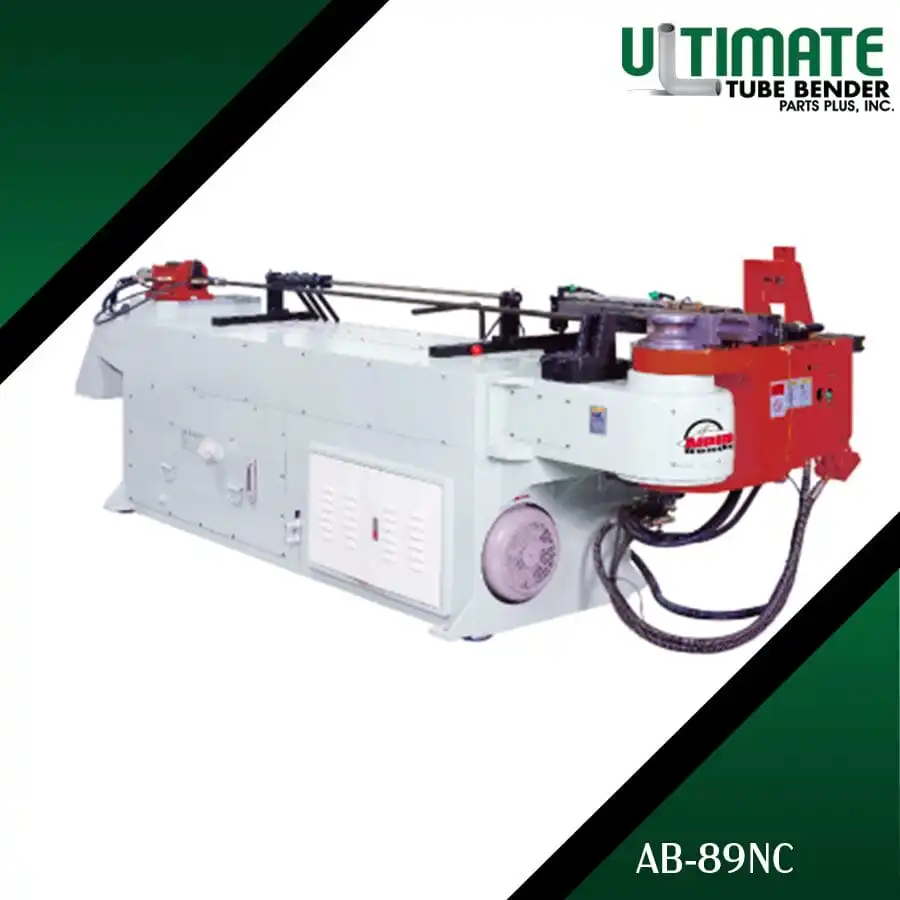

Alpine 89NC Hydraulic Tube Bender

Alpine 89NC: Power and Precision for Heavy-Duty Bending
The Alpine 89NC Hydraulic Tube Bender represents the pinnacle of bending power and accuracy. It is the ideal choice for businesses looking to enhance their capacity for large diameter tube bending with a machine that combines reliability, safety, and precision.

Key Features:
Enhanced Capability: Perfect for heavy-duty tasks, the 89NC handles tubes up to 89mm, providing the power needed for large diameter bending operations.
Superior Accuracy: This model boasts precise bending capabilities, ensuring every bend is executed flawlessly for high-quality results.
Durable Construction: Built to withstand industrial wear and tear, the 89NC offers unmatched durability and reliability.
Safety Features: Prioritizing operator safety, it is equipped with comprehensive safety systems to prevent accidents during use.

Applications:
Perfect for applications demanding large diameter bending such as petrochemical, power generation, and large-scale construction projects.

Standard Machine and Accessories
Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
