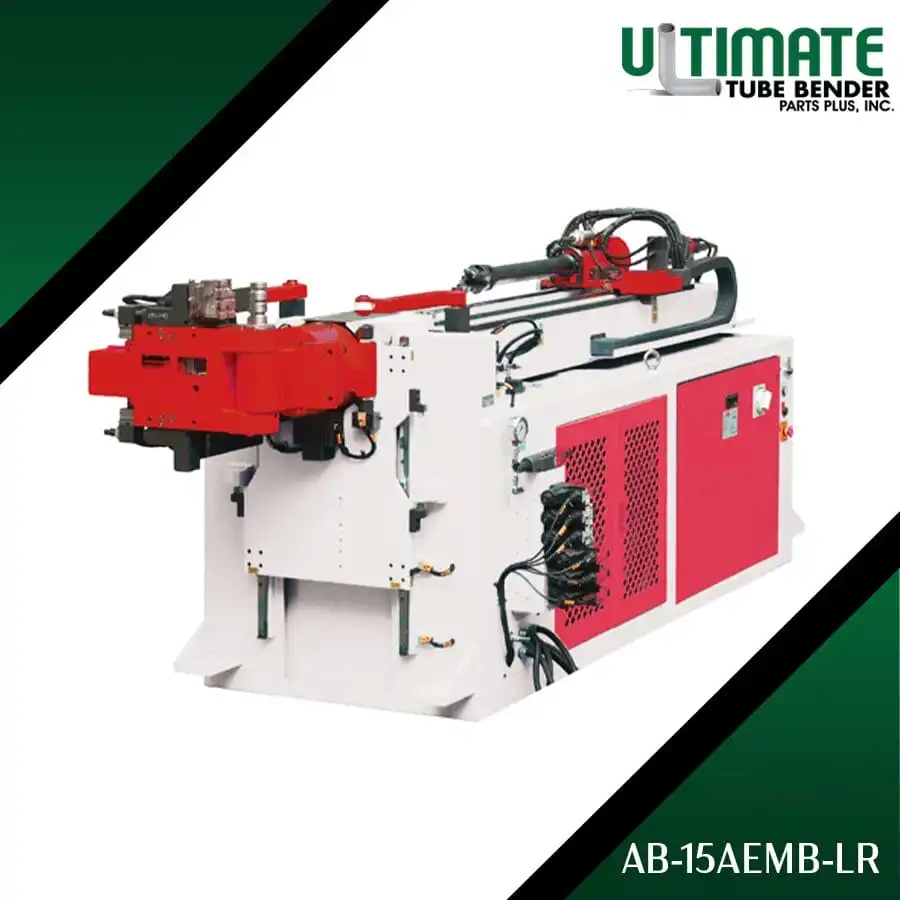

Alpine 15AEMB-LR All Electric Tube Bender

Alpine 15AEMB-LR All-Electric Tube Bender
Introduction:
Embrace advanced bending technology with the Alpine 15AEMB-LR, a compact all-electric tube bender designed for precision and efficiency. Tailored for small diameter tubes up to 15mm, it’s the ideal choice for industries that demand high accuracy and eco-friendly operations. From automotive parts to aerospace components, this machine delivers consistent, perfect bends every time, thanks to its electric servo motors and user-friendly interface.
Key Features:
All-Electric Precision: Delivers exceptional accuracy and repeatability in bending, courtesy of sophisticated electric servomotors.

Compact and Eco-Friendly: Offers a space-saving design with a reduced environmental footprint, moving away from hydraulic fluids and lowering energy consumption.

Intuitive User Experience: Features an easy-to-navigate control system, making precise bending accessible to operators of varying skill levels.
Applications:
With its precise control and compact, eco-conscious design, the Alpine 15AEMB-LR is perfectly suited for precision-demanding sectors like automotive, aerospace, and electronics. It is a pivotal tool for achieving flawless bends in small diameter tubing.
Alpine 15AEMB-LR: Precision Bending Redefined
Leverage the Alpine 15AEMB-LR in your production line for unmatched bending accuracy and environmental efficiency. This all-electric tube bender is your answer to meeting stringent quality requirements while advancing towards greener manufacturing practices.
Standard Machine and Accessories
Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right and Left Hand Bending
Multi Stack Tooling — Double Bending on Left and Right
Patented Direct drive A/C servo motor bending head — Less interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Tool included to measure push or roll bending radius
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)
Safety Mat
Upgrade Options
AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
