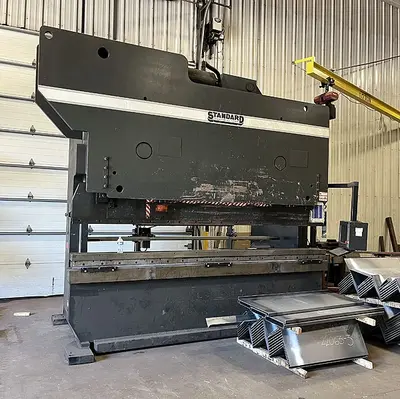

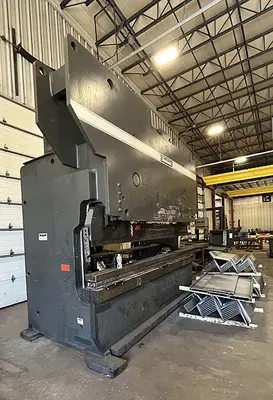

USED 2011 STANDARD AB-400

Standard AB-400 Press Brake 12′ Overall Bed Tooling -FLUSH MOUNT- 2011
Description

Forming: 400 Tons

Punching: 265 Tons

Bed/Ram Length: 12′

Between Frames: 10′ 5″

Open Height: 20″

Stroke: 10″

Closed Height: 10″

Throat Depth: 10″
EQUIPPED WITH:

Auto Lube System

FLUSH MOUNT ON FLOOR

# 575 Custom Tooling Package

Willa e-Wide Single Point Crown Adustment

Automec EVC 800 3-Axis CNC Back Gauge
Standard Features:
Full-tonnage throughout stroke

Solid, non-moveable lower beam substantially more rigid than “bed level” press brakes

+/- 0.001″ ram repeatability

Off-center loading capability

The most heavy duty press brake built in the USA

Extremely heavy duty lower beams allowing the least amount of deflection. Less deflection = longer tool life = more profitability

Groove in bed for tooling is standard on all brakes

Precision mechanical in-line depth stop as back-up for any CNC control

Weight: approx. 58,000 lbs.
