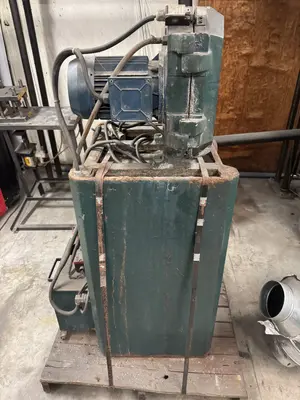

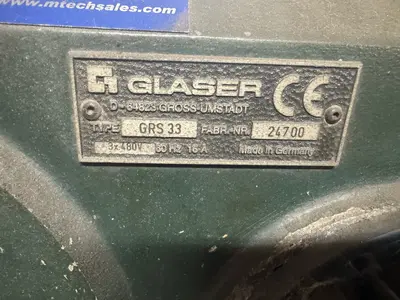

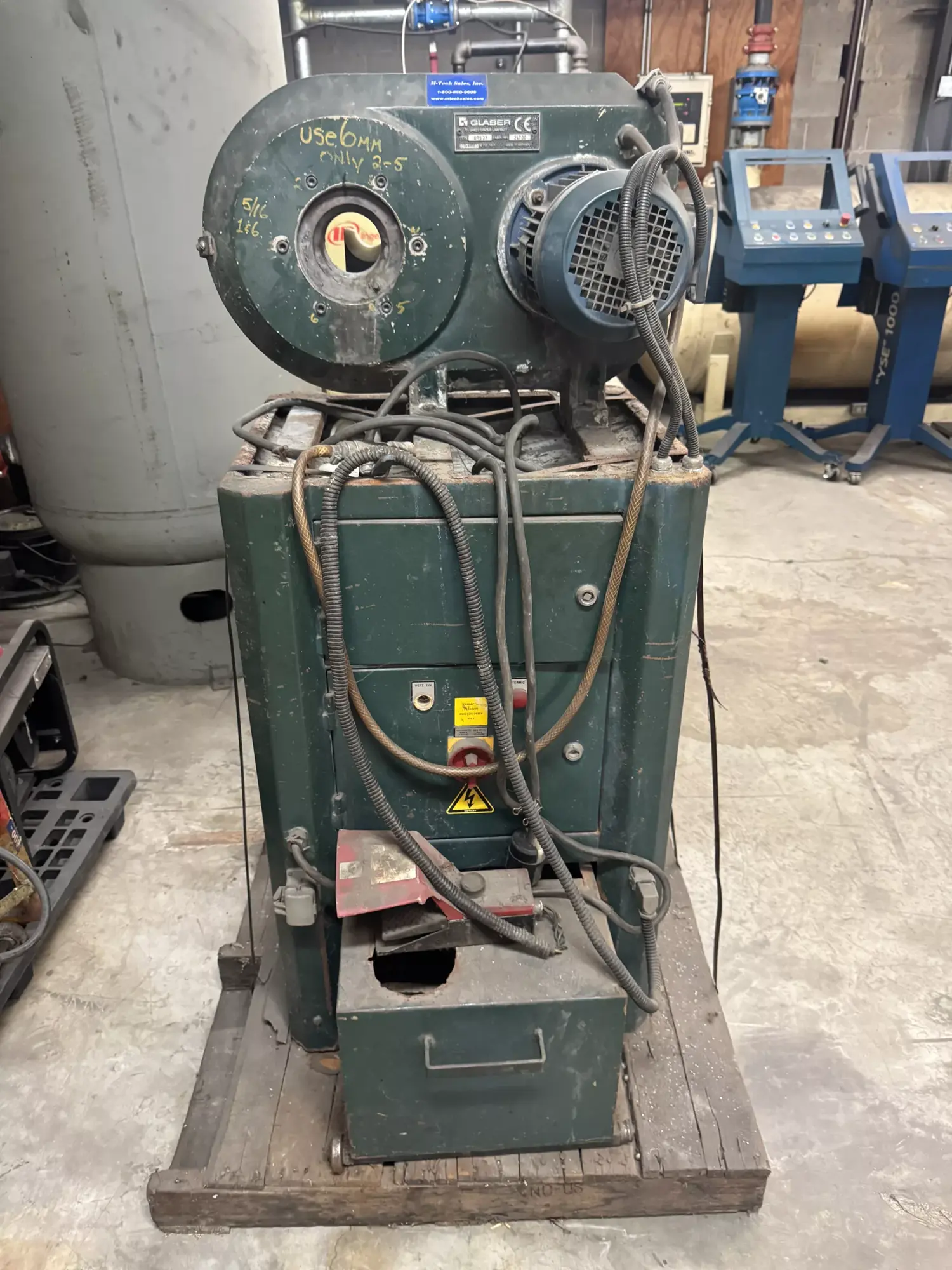

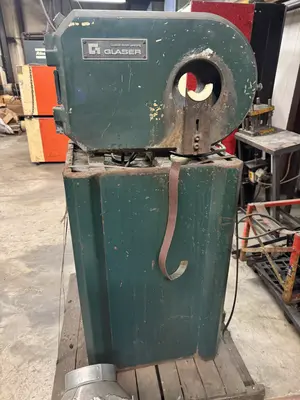

Used Pipe bend grinding machine Glaser GRS 33
Wet grinding device
Foot switch
Workpieces from Ø 10mm to Ø 80mm
Drive motor: 2.2 kW
Revolutions: 1450 rpm.
Power supply: 380-400 V three-phase, 16 A, 50 Hz
Weight: approx. 165 kg
The GRS 33 pipe bend grinding machine is suitable for grinding round or elliptical workpieces such as pipes or round material made of stainless steel, iron, aluminum, brass, copper and wood.
The pipe cross-section can be round or elliptical. The pipe bend can be up to approximately 140°. (The exact angle depends on the pipe diameter.)
The pipe bends can be ground dry or wet. The grinding machine is equipped with a coolant system for wet grinding.
