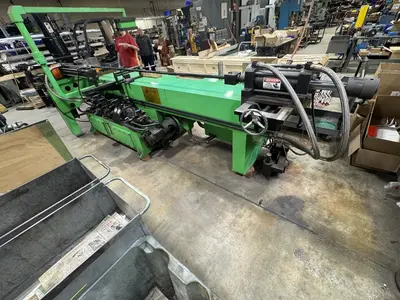

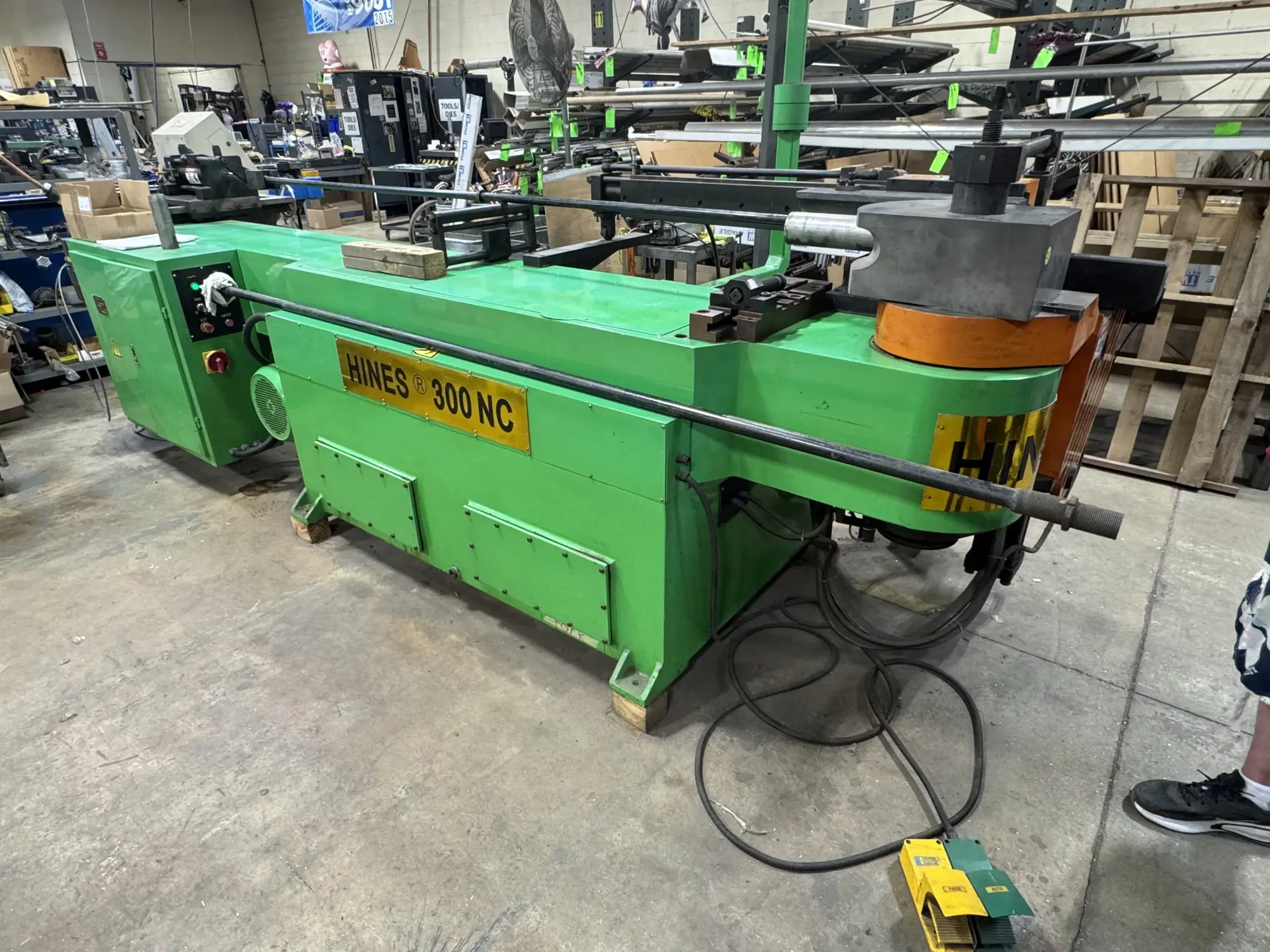

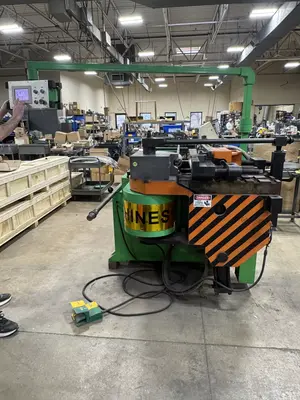

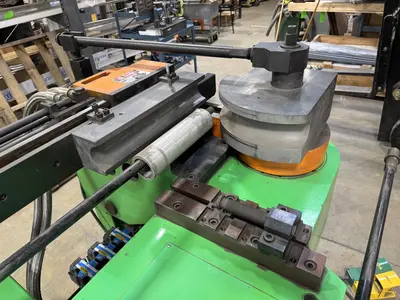

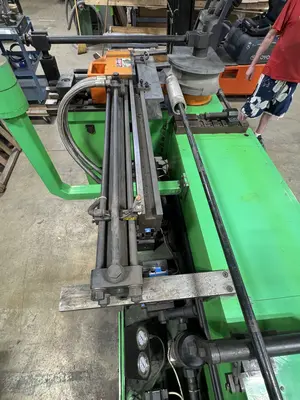

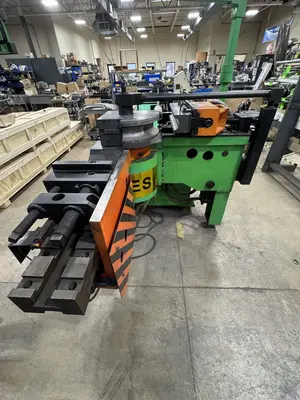

USED HINES 300

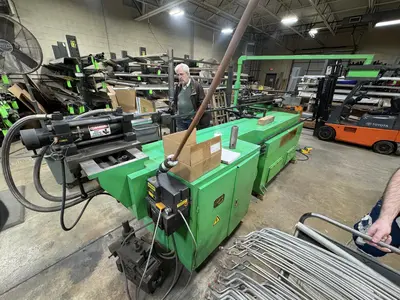

This bender was used for only 45 bends on a project that never took off for the aerospace. My customer mainly does small OD tubes so this is way too big for them. Excellent condition & can be seen under power.
FEATURES OF THE 300 NC TUBE BENDER

Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.)
Solid Machined Steel Bend Arms
Easy Touch Screen Operation
Includes All Die Holders
Operator Safety Features

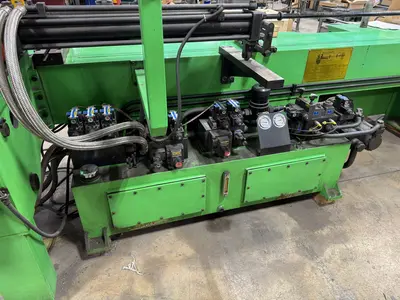

Manifold Style Hydraulic and High Pressure Filter

STANDARD

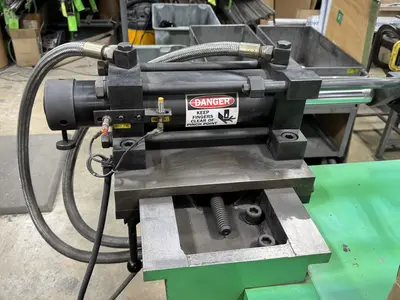

Pressure Die Holder
Wiper Die Holder
Overhead Tie Bar (Eliminates Die Deflection)

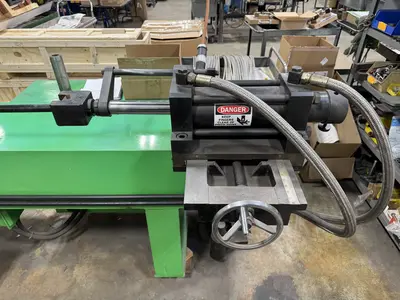

Pressure Die Assist
Pressure Die Assist Rear Support Roller
Mandrel Rod SAE Thread Supplied (1)

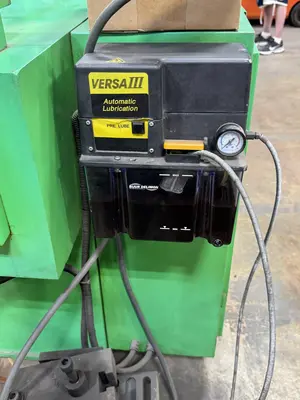

Mandrel Lubricator
Mandrel Extractor
Mandrel Early Out Programmable
PLC Controller – Mitsubishi FX3U
Memory Capacity: 100 job storage, 6 bends per part
Touch Screen (Proface America)
Tube Piece Counter
Clockwise Rotation

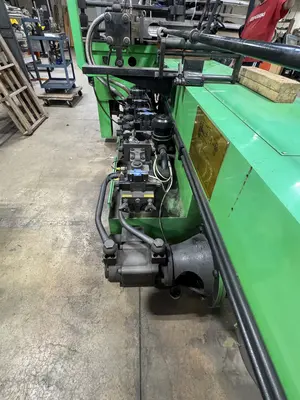

Dual Stage Pump Hydraulic System

ADDITIONAL SPECIFICATIONS FOR THE 300 NC

Capacity: 4″ OD x .226 Wall
Standard Maximum Radius: 18 inch
Maximum Bend Angle: 190 degrees
Bend Angle Accuracy (+ / -): 0.1 degree
Bend Arm Speed: 3.5 RPM
Maximum Tube Length Over Mandrel: 10 feet
Motor: 20 HP
Operating Pressure: 2000 psi
Reservoir Capacity: 150 U.S. Gallons
Approximate Weight: 13800 lbs
Approximate Dimensions: 15′ L x 6′ W x 5.5′ H
