USED YLM CR-T38D

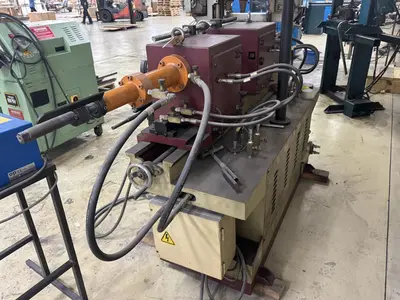

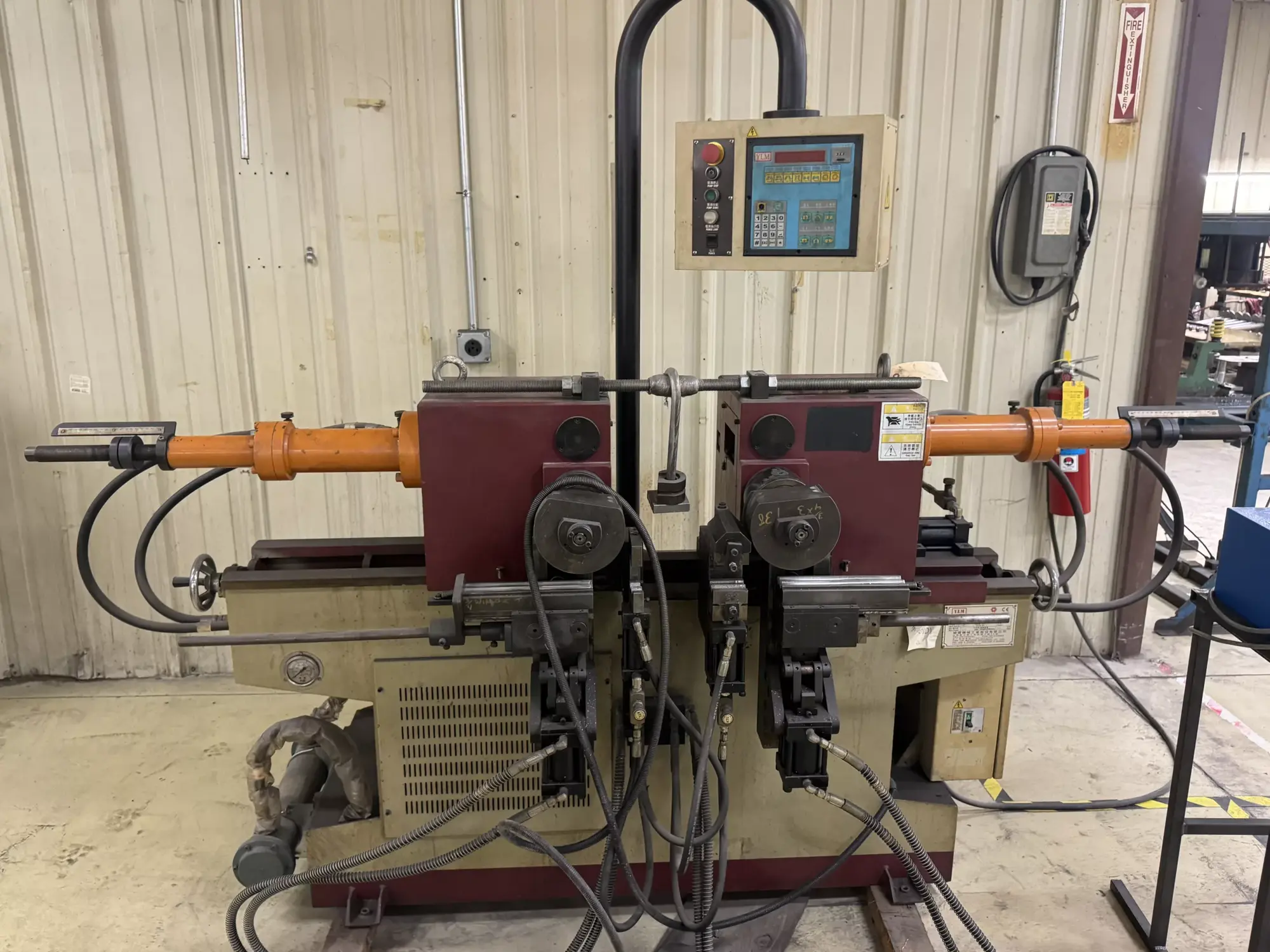

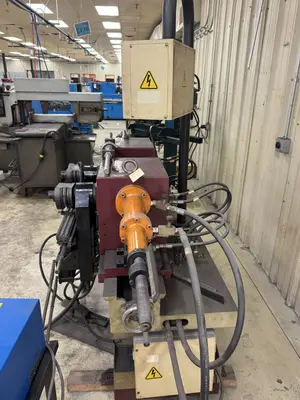

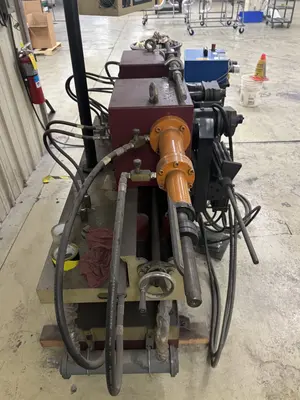

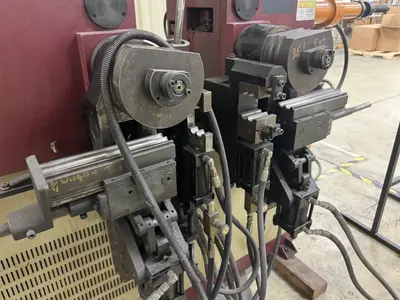

Used YLM CR-T38D Twin Head Tube Bender


High production capacity: Max.720 pcs of two-end bending pipes in one hour.

Bending angles are adjustable from 0°~180°.

Conventional models tube bender – twin-head double-bend tube bender

With the proportional pressure control, you can hand 2 pipes synchronously & rapidly and get the final production with precise angles & beautiful surface without wrinkles. The 2 angles can be different & adjustable. So this machine is the most proper machine for general two-end bending.

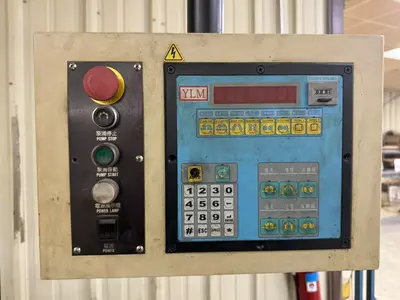

Both manual and automatic operations are available.
The machines is equipped with emergency stop device.
Bending angles are adjustable from 0˚ ~ 180˚.
High production capacity: Max.720 pcs of two-end bending pipes in one hour.
The distance between the center line of 2 main shafts are 180 m/m (Min.) & 930 m/m (Max.) for CR-T38 type.

Production capacity for CR-T38:

(1) produce 1 pipe each time for O.D. 38 m/m pipe.

(2) Produce 2 pipes at the same time for O.D. 25 m/m pipe.

(3) Produce 3 pipes (Max.) at the same time for O.D. 19 m/m & smaller pipes. (Tube w.t ≤ 1.5 m/m)

Specification

TYPE
O.D. * Wall

(mm)
Range of Radius

(mm)
Range of Bending
Horse Power
Total Length
Total Width
Total Height
Total Weight
Range of Bending Speed

CR-T38D
38*2.0
25~170
0°~180°
7.5HP
2500mm
950mm
2000mm
1400kg
90°3~4/sec
