USED 2012 EATON LEOANRD VB60C-1-LH

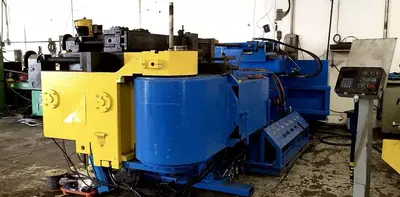

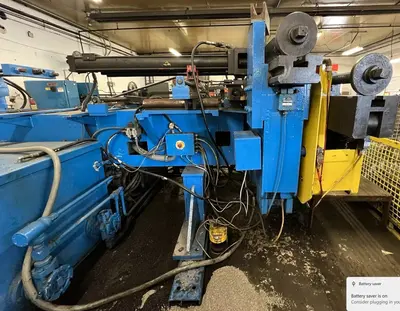

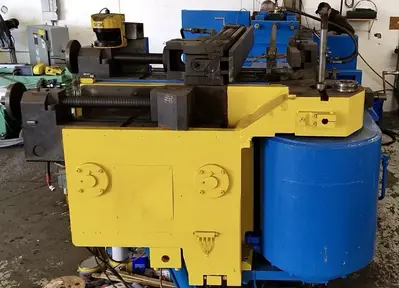

🔧 Used Eaton Leonard VB60C-1-LH Hydraulic Tube Bender (2012)

Converted CNC to NC – Powerful, Precise, Proven
The Eaton Leonard VB60C-1-LH is a high-capacity, heavy-duty hydraulic tube bender designed for precision forming of large-diameter tubes. This 2012 model is configured for left-hand (counterclockwise) bending and features a hydraulic mandrel extractor, pressure die assist, and a Current Tech CAB control system.
The machine has been CNC-converted to NC, delivering streamlined numeric control for high-volume production while reducing complexity. Whether you work in automotive, aerospace, energy, or heavy industrial fabrication, this unit delivers robust performance for challenging tube geometries and materials.

⚙️ Key Specifications

Feature
Description

Model
Eaton Leonard VB60C-1-LH

Year Built
2012

Rotation Direction
LH (Counterclockwise)

Controller
Current Tech CAB Controller (CNC converted to NC)

Motor
60 HP / 480V / 3PH / 125 Amps

Bend Angle
Up to 190°

Bend Speed (C-Axis)
2 RPM

DBB (Y-Axis) Speed
900 IPM

Centerline Radius Range
2″ to 25″

Mandrel System
Hydraulic Mandrel Extractor

Pressure Die
Assist Included

🔩 Tube Bending Capacity by Material

Material Type
Max OD Size
Wall Thickness

Stainless Steel
6″
0.18″

Mild Steel
6″
0.22″

Aluminum
6″
0.50″

Carbon Steel
6″
0.337″

✅ Features & Benefits

Large Diameter Bending: Handles up to 6″ OD tubing in various materials.

Heavy-Duty Drive System: 60 HP motor for high-performance bending with consistent results.

Simplified NC Operation: CNC converted to NC for user-friendly operation with numeric controls.

Hydraulic Mandrel Extractor: Ensures optimal internal support for tight-radius bends.

Pressure Die Assist: Maintains wall integrity and reduces deformation on heavier tubes.

Current Tech CAB Controller: Reliable, modern control system with one-year board warranty (if applicable).

Proven OEM Platform: Built on Eaton Leonard’s globally recognized hydraulic bending architecture.

🏭 Ideal For Industries Like:

Heavy Equipment Manufacturing

Energy & Power Systems

Aerospace & Defense

Shipbuilding & Rail

Custom Exhaust & Chassis Bending

Oil & Gas Infrastructure

📞 Looking for High-Torque Precision Tube Bending?

The Used Eaton Leonard VB60C-1-LH offers extreme power, refined control, and wide-ranging material compatibility. Ready for production and equipped to handle your toughest large-radius and large-diameter applications.
👉 Contact us now for pricing, tooling options, and shipping quotes.
Used Eaton Leonard VB60C-1-LH Hydraulic Tube Bender 2012
Specifications:

LH (Counterclockwise) Rotation

Pressure Die Assist

Hydraulic Mandrel Extractor

Max Tube OD Stainless Steel 6″ x .18″

Max Tube OD Mild Steel 6″ x .22″

Max Tube OD Aluminum 6″ x .50″

Max Tube OD Carbon 6″ x .337″

Bend Angle 190 Degrees

Centerline Radius 2″ to 25″

Bend Speed 2 RPM (C-Axis)

DBB Speed 900 IPM (Y-Axis)

Motor 480/60/3, 125 Amps, 60 HP

*CNC CONVERTED TO NC* (NC= NUMERICALLY CONTROLLED)

Current Tech CAB Controller
