USED 2007 STAR SB-16

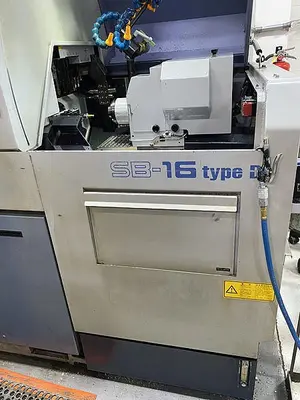

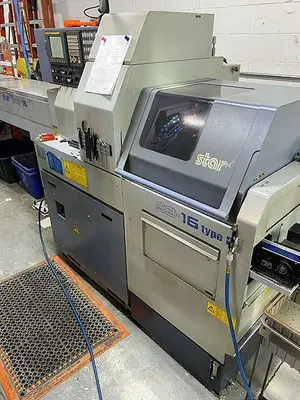

🧭 Used Star SB-16 Type D CNC Swiss Lathe – 2007
Compact Swiss Precision, Shop-Tested and Loader Equipped
If you’re in the market for a reliable, compact Swiss-type lathe, the Star SB-16 Type D is a proven performer. This 2007 model comes fully equipped with a Star ASO 12′ automatic bar loader, making it ideal for high-volume, tight-tolerance parts.
Perfect for medical, aerospace, and precision industrial components, this machine blends rigid construction, 6-axis control, and smooth spindle performance into a compact footprint that works for any job shop or production cell.

⚙️ Key Specs:

🔹 Year: 2007

🔹 Control: Fanuc 18i-TB

🔹 Max Machining Diameter: 5/8″ (0.625″)

🔹 Power: 3.7 kW main spindle (15 min rating)

🔹 Main Spindle Speed: Up to 10,000 RPM

🔹 Sub-Spindle Speed: Up to 8,000 RPM

🔹 Axes: X1, Y1, Z1, C1, X2, Z2 (6-axis)

🔹 Main Spindle Indexing: Full C-axis

🔹 Live Tooling: Yes – up to 7,500 RPM

🔹 Guide Bushing Type: Revolving

🔹 Machine Weight: Approx. 3,750 lbs

🧰 Equipped With:

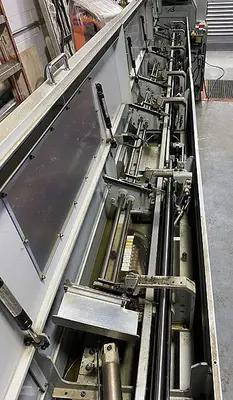

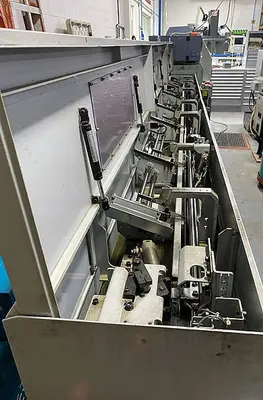

✅ Star ASO 12′ Bar Loader

✅ Full C-axis indexing on main spindle

✅ Revolving guide bushing

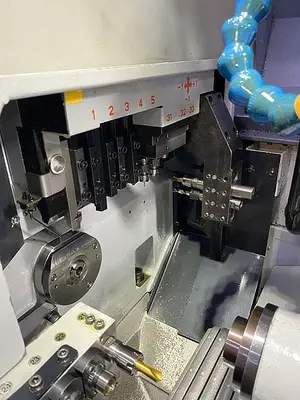

✅ OD, ID, and backworking tool stations

✅ Compact footprint: 73″ x 42″ x 69″

💡 Why It’s a Smart Buy:

“These Star SB-16 lathes are workhorses in the medical and micro-machining world. This one’s in solid condition, already loader-equipped, and priced to move.”

Whether you’re running 24/7 production or adding to a lean manufacturing cell, this Star Swiss lathe is built to deliver consistency and speed on small-diameter parts.

📦 Condition:

🔸 Used, Good Condition

🔸 Operational at time of removal

🔸 Cleaned and shop-ready

🔸 Inspection welcome

🔸 Freight and loading support available

Used Star SB-16 Type D CNC Swiss Lathe 2007
Type: Swiss Type Automatic Screw Machines

Manufacturer: STAR

Model: SB-16 TYPE D

Condition: Good

Year: 2007

Stock #: 3163
Description

STAR SB-16 Type D CNC Swiss Lathe

*Star ASO 12′ Loader *

* New 2007 *

EQUIPPED WITH:

Star ASO 12′ Loader
SPECIFICATIONS:
CAPACITY 0.625″

POWER 3.7 kW

RPM 1,000 RPM

# AXIS 6

SWISS, CHUCKER OR CONVERTIBLE? Swiss

MAIN SPINDLE INDEXING Full C

SUB SPINDLE INDEXING none

LIVE BACK WORKING TOOLS? No

B-AXIS? No

CONTROL CNC (FANUC 18ITB)

General Specifications for a Star SB-16D per brochure:
Control: Fanuc 18iTB

Axes: X1, Y1, Z1, C1, X2, Z2

Max. Machining Diameter: 5/8″

Max. Headstock Stroke:

Std: 8″

Revolving Guide Bushing: 6 3/32″

Tooling: 2 Live/6OD (3 Live/5OD:OP)

4ID / 4 Back working

4 Rear end working tools

Main Spindle:

Max Speed: 10,000 rpm

Motor: 2.2kw (cont.)/ 3.7 kW (15 min)

Indexing: 15 degree (C-axis optional)

Live Tools:

Max. Speed: 7,500 rpm

Motor: 0.4kw

Sub-spindle:

Max. Diameter: 5/8″

Max. Length for Ejection: 3 5/32″

Max. Parts Projection Length: 1 3/16″

Max. Speed: 8,000 rpm

Motor: 1.0kW

Dimensions (l x w x h, approx): 73″ x 42″ x 69″

Weight (approx): 3750 lbs
