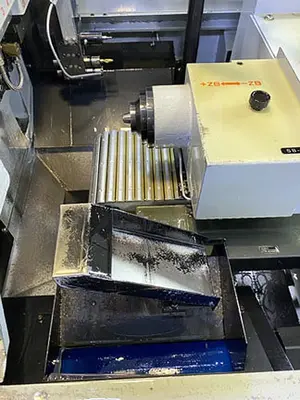

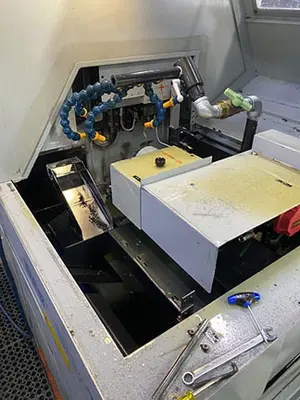

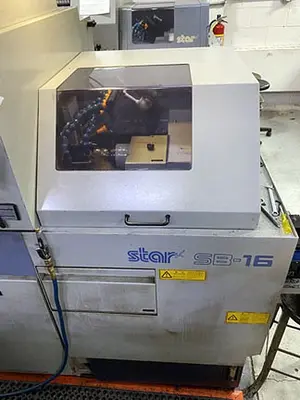

USED 2005 STAR SB-16

🛠️ Used Star SB-16 Type C CNC Swiss Type Lathe
Swiss Precision for High-Volume Small Part Production
Looking to add a compact, ultra-precise Swiss-type lathe to your production floor? The Star SB-16 Type C is a trusted name in small-part turning, especially in industries like medical, electronics, aerospace, and defense.
This machine is known for its reliability, repeatability, and productivity, with the ability to run around the clock on high-volume jobs. If your work requires tight tolerances on diameters up to 5/8″, this SB-16 Type C is a solid, cost-effective solution.

🔍 Key Specs & Features:

🛠️ Type: Swiss-Type Automatic Screw Machine

📏 Max Machining Diameter: 16mm (0.625″)

⚙️ Axes: Up to 6-axis control

🌀 Main Spindle Speed: Up to 10,000 RPM

🔁 Sub Spindle Speed: Typically up to 8,000 RPM

⚡ Live Tooling Capability: Depending on configuration

🧱 Structure: Heavy-duty yet compact, ideal for lights-out production

🧰 Control: Fanuc (varies by machine year)

📦 Automation-Ready: Compatible with bar feeders like LNS or Star loaders

🔧 Ideal Applications:

Medical implants & components

Connectors & pins

Aerospace hardware

Precision valve stems

Small-diameter hydraulic parts

🧰 Condition & Configuration:

✅ Used – Well-maintained and in production prior to removal

✅ Bar Feeder Available – Check if unit includes 12’ bar loader

✅ Optional Tooling – Available upon request

✅ Footprint: Compact machine fits most shop layouts

💬 Why Choose the Star SB-16 Type C?

“The SB-16C offers the best of both worlds—tight tolerances and fast cycle times. It’s built to run day in, day out with very little downtime.”

Whether you’re replacing an older machine or expanding production, this Star Swiss lathe adds immediate value to your workflow.

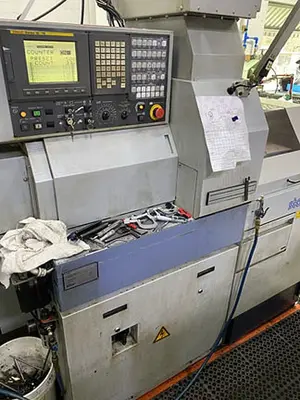

Used Star SB-16 Type C CNC Swiss Type Lathe
Type: Swiss Type Automatic Screw Machines

Manufacturer: STAR

Model: SB16C

Condition: Good

Year: 2005

Stock #: 3162
Description

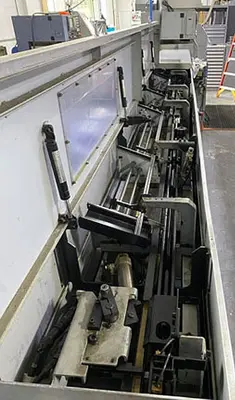

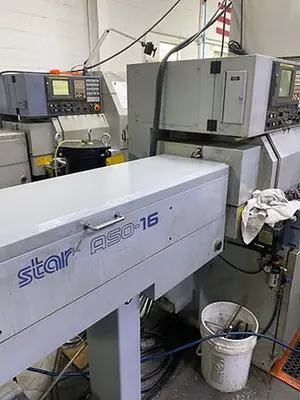

Star ASO 12′ Bar Loader

New Enland Tool 500 PSI 4-line HP Pump.

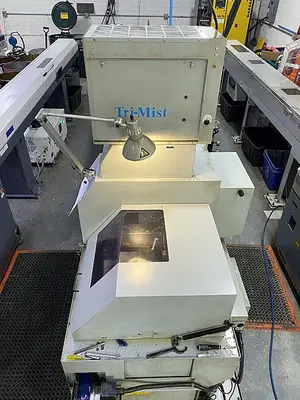

Tri-Mist Mist Collector.

Long Parts Ejector Kit

CAPACITY 0.675″

POWER 3.7 kW

RPM 10,000 RPM

# AXIS 5

SWISS, CHUCKER OR CONVERTIBLE? Swiss

MAIN SPINDLE INDEXING 15 degree

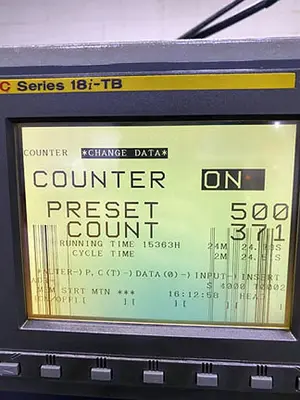

CONTROL CNC (FANUC 18ITB)

GENERAL SPECIFICATIONS FOR A STAR SB-16
CONTROL: FANUC 18ITB

MAX. MACHINING DIAMETER: 5/8″

Spindle indexing: main: 15 deg

MAX. HEADSTOCK STROKE:

STD: 8″

REVOLVING GUIDE BUSHING: 6.7″

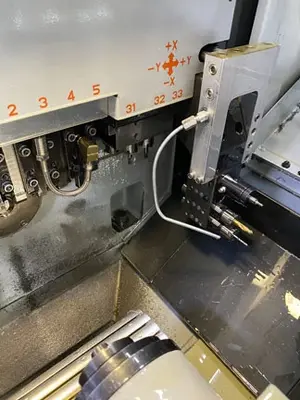

TOOLING: 3 LIVE/5OD OR 2 LIVE/6OD

4ID / 2 BACKWORKING

MAIN SPINDLE:

MAX SPEED: 10,000 RPM

MOTOR: 2.2KW / 3.7 KW

LIVE TOOLS:

MAX. SPEED: 7,500 RPM

MOTOR: 0.4KW

SUB-SPINDLE:

MAX. DIAMETER: 5/8″

MAX. LENGTH FOR EJECTION: 3 5/32″

MAX. PARTS PROJECTION LENGTH: 1 3/16″

MAX. SPEED: 6,000 RPM

MOTOR: 0.5KW

DIMENSIONS (L X W X H, APPROX): 73″ X 42″ X 69″

WEIGHT (APPROX): 3600 LBS
