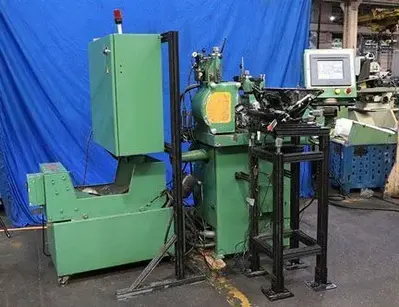

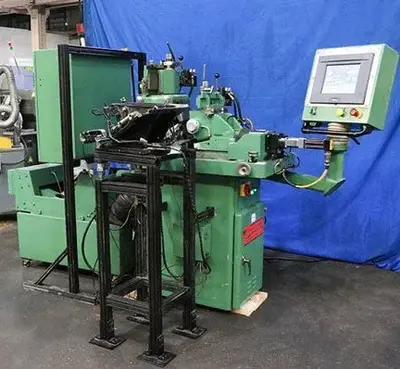

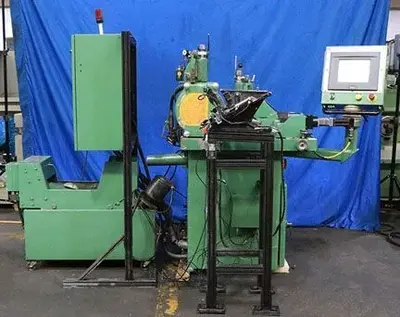

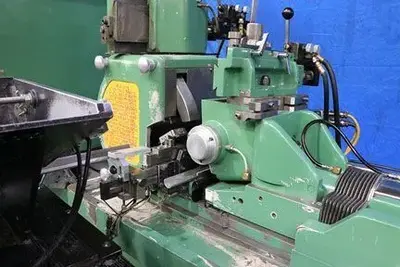

USED 2016 ROYAL MASTER TH12X4-HIACC

Manufacturer: ROYAL MASTER

Model: TG 12×4-HIACC

Year: 2016

Stock #: 3211

Serial #: 2729

Description
Refurbished & Upgraded by RMG

in 2016,
With Parker Touch Screen Control

Interface, Servo Drives, Servo

Regulating Wheel Drive,

Loader, Coolant System

with Paper Filtration,

… Full & Complete Upgrade!
CAPACITY:

INFEED AND THRUFEED 0.004″ TO 1.5″ DIA.

LENGTH 12′ ON 0.5″ DIA.
WHEELS:

MAXIMUM GRINDING WHEEL 12″ DIA. x 4.5″ WIDE

MINIMUM GRINDING WHEEL 10″ DIA. x 1/4″ WIDE

MAXIMUM REGULATING WHEEL 6″ DIA. x 4.5″ WIDE

MINIMUM REGULATING WHEEL 1/4″ WIDE W/SPOOL
SPINDLE SPEEDS:

GRINDING WHEEL CONSTANT SPEED 2,040 RPM

REGULATING WHEEL INF. VARIABLE 25 TO 480 RPM
REGULATING WHEELHEAD:

MAX. ANGLE OF TILT FOR

THRUFEED GRINDING 6 DEGREES

MAX. SWIVEL FOR TAPER

GRINDING 5 DEGREES
APPROXIMATE FLOOR SPACE 24″ x 48″

APPROXIMATE WEIGHT 2,800 LBS
EQUIPPED WITH:

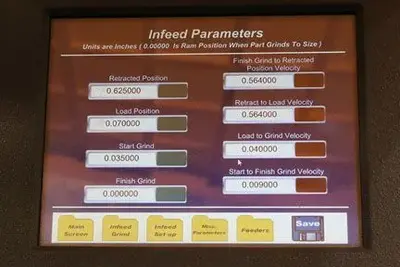

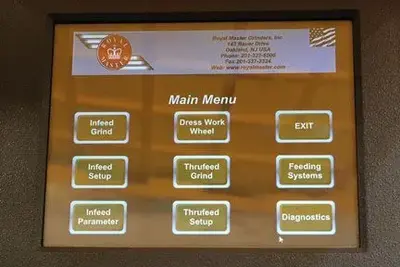

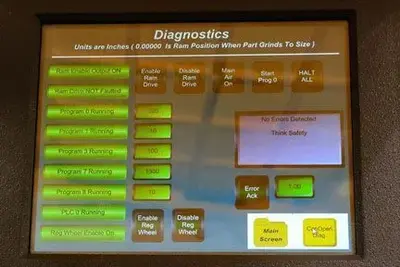

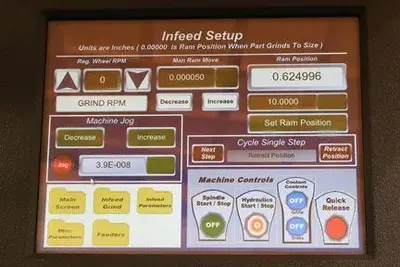

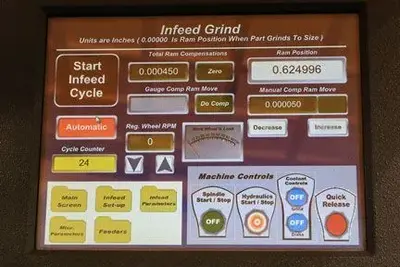

Parker Touch Screen Control Interface

Servo Drives

Servo Regulating Wheel Drive

“Deep Bed” Coolant System, Gusher Pump,

with Auto Powered Paper Filtration

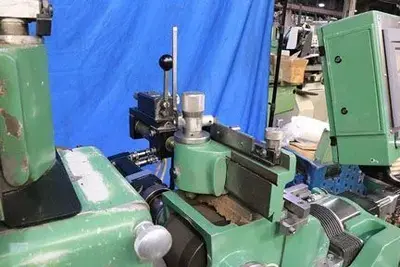

Work Rest

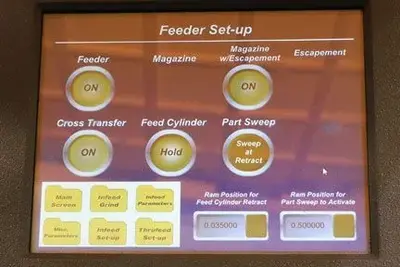

Integrated Feeder/Loader
“PRECISION” REGULATING WHEEL SPINDLE

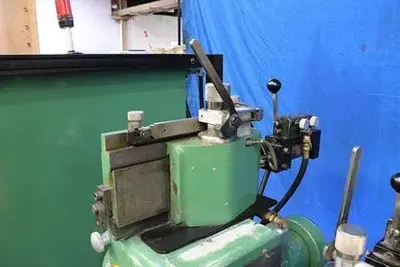

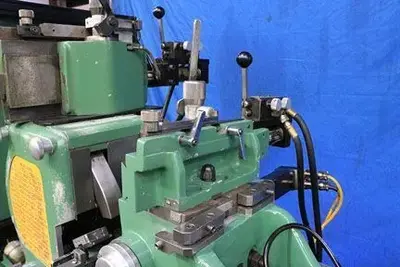

“AIR-SENSING” HYDRAULIC DRESSER,

FOR THE GRINDING WHEEL

“STANDARD” HYDRAULIC DRESSER,

FOR THE REGULATING WHEEL

SELF CONTAINED HYDRAULIC SYSTEM

7.5 H.P. MAIN DRIVE MOTOR

3/60/208-230-460 VOLT ELECTRICS

MACHINE IS PRESENTLY WIRED FOR

3/60/208 VOLTS, 25 FULL LOAD AMPS
