USED 1987 HARIG 6″ X 18″

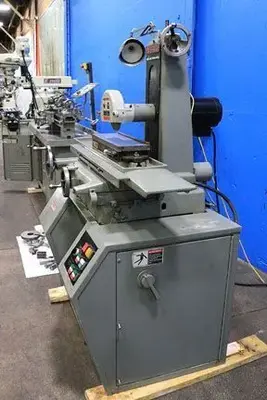

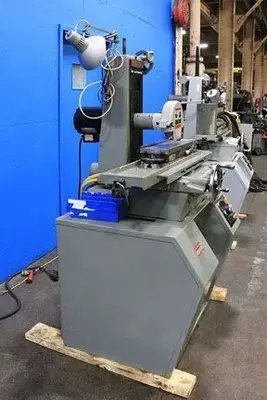

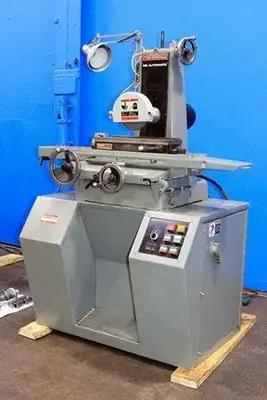

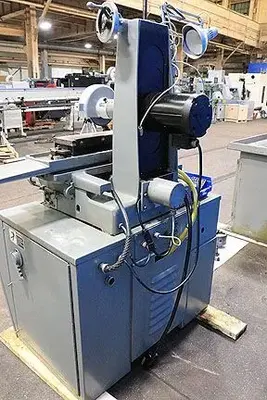

Used Harig 6″ x 18″ 2-Axis Automatic Surface Grinder

Model:

618 AUTOMATIC

Condition: Excellent

Year: 1987

Stock #: 3210

Serial #: 6776-H

Description

SPECIFICATIONS:

WIDTH & LENGTH GROUND 6″ X 18″

LONGITUDINAL TRAVEL 18- 3/4″

CROSS TRAVEL 6- 3/4″

LONGITUDINAL TABLE SPEED 0 TO 70′ FPM

CROSS FEED INCREMENT PER TABLE PASS 0.0005″ TO .9995″

WORKING HEIGHT UNDER THE WHEEL 11- 3/4″

GRINDING WHEEL DIMENSIONS (DxWxB) 7″ x 1/2″ x 1-1/4″

VERTICAL HAND WHEEL, GRADUATION 0.0005″

CROSSFEED HANDWHEEL, GRADUATION 0.001″
FLOOR AREA OPERATING SPACE 71″ X 45″

APPROXIMATE WEIGHT 1,500 LBS
MACHINE FEATURES:

– HYDRAULIC TABLE TRAVERSE

– AUTOMATIC ELECTRO-MECHANICAL POWER CROSS FEED

CONTROLLED BY THUMB SWITCHES

– HARIG “FLO-CLEAN” AUTO LUBRICATION SYSTEM

– 1 HP 3/60/208-230-460 VOLT SUPER-PRECISION DIRECT DRIVE

CARTRIDGE TYPE SPINDLE
EQUIPPED WITH:

– FINE FEED OPTION FOR BOTH VERTICAL & CROSS FEED HANDWHEELS

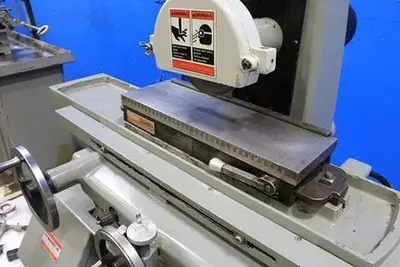

– 6″ X 18″ O.S. WALKER “CERAMAX” FINE-DIVISION PERMANENT MAGNETIC CHUCK

– COOLANT SYSTEM, COMPLETE WITH GUARDING, TANK & PUMP

– WORK LIGHT

– PRESENTLY WIRED FOR 3/60/220 VOLTS
