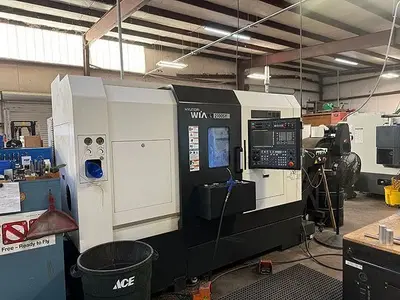

USED 2018 HYUNDAI WIA L2100SY

Manufacturer: HYUNDAI WIA

Model: L2100SY

Condition: Good

Year: 2018

Stock #: 3203
Description

Main spindle: 4,000 rpm built in spindle

20 HP

Main Torque 187.5

2.6” (Ø65mm) bar capacity

Max. turning diameter 13.2”

Max. turning length 17.9”

Sub spindle: 6,000 rpm built in spindle

10 HP on the sub spindle

1.4” bar capacity

Live Tool: 5,000 rpm

7.4HP (5 min) / 26 lbf.ft torque
X/Y-axis Travel 8.3” / 3.9”

Box guideways

Rapid Speed

X/Y Axis Travel 8.3” / 3.9”

X/Y Axis Rapids 18/12m/ min

Z/ZB Axis Travel 22.8/ 19.7”

Z/ZB Axis Rapids 945 (24m/min)

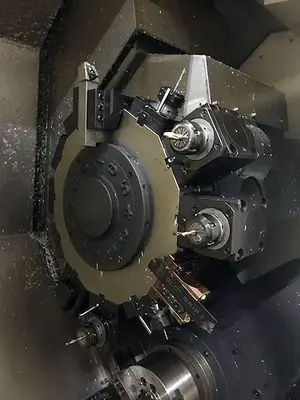

BMT 65 12 station turret

Auto Tool setter

Tool size: □ 1.”/Ø 2” (□25mm/Ø50mm)

87 PSI coolant system (290 PSI-opt)

Double Pre-Tensioned Ball screws

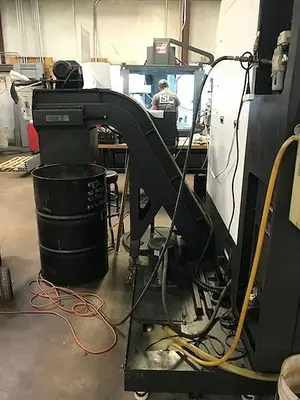

Chip Conveyor (47” discharge height)

1 color tower signal light

X/Y Ball Screws 1.1”

Z/ZB Ball Screws 1.57”

Machine approx. dimensions 10’ x 6’ without chip conveyor

Machine Chip conveyor approx. 4’ 5” long
Equipped with
Chip Conveyor

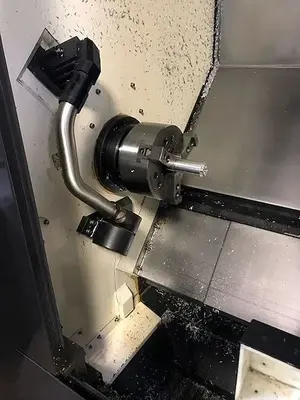

parts catcher

8” 3 Jaw chuck,

6” 3 Jaw chuck-sub spindle

Tool setter,

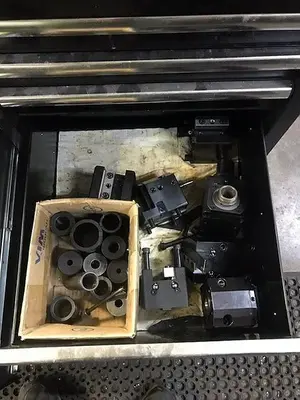

Approx. 6 Live Toolholders

Assorted Toolholders in the turret ( Drills & Inserts not included)

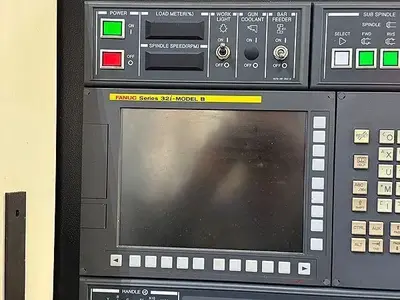

Fanuc 32-I Model B Control

Approx. 3000 Cutting hours ( Only 1 year & Half use in 7 Years)
