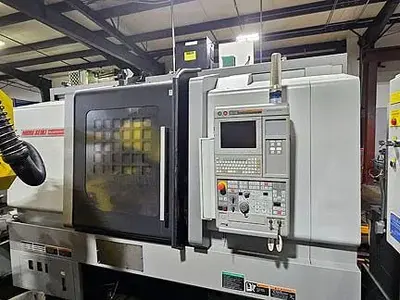

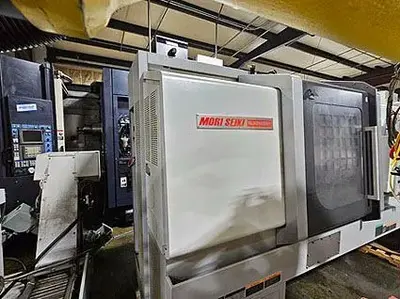

USED MORI SEIKI NLX2500SY/700

Used Mori Seiki NLX2500SY/700
New in 2012

Description
LIVE TOOLING / MILLING

C-Axis: Equipped With

Y-Axis: Equipped With

Live Tooling / Milling: Equipped With
SPECIFICATIONS

X-Travel: 10.24″

Z-Travel: 31.30″

Distance Between Centers: 28″

Max Swing Over Bed: 23.23″

Max Turning / Cutting Length: 31.30″

Max Cutting / Turning Diameter: 18.11″

Rapid Traverse: 1181 IPM
SPINDLE

Bar Capacity: 3.15″

Chuck Size: 10.0″

Chuck Type: Hydraulic

Chuck Description: 3-Jaw

Spindle Bore: 3.60″

Spindle Speed: 4,000 RPM

Spindle Motor: 25 HP

Spindle Nose: A2-8

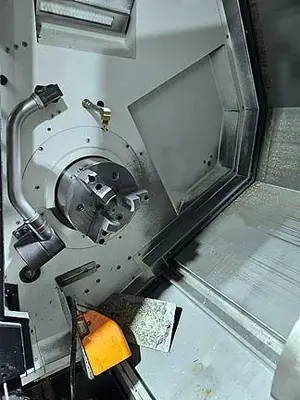

SECOND SPINDLE

Sub-Spindle: Equipped With

Second Bar Capacity: 1.69″

Second Chuck Size: 6.0″

Second Chuck Description: 3-Jaw

Second Spindle Bore: 1.70″

Second Spindle Speed: 6000 RPM

Second Spindle Motor: 15 HP

Second Spindle Nose: A2-5

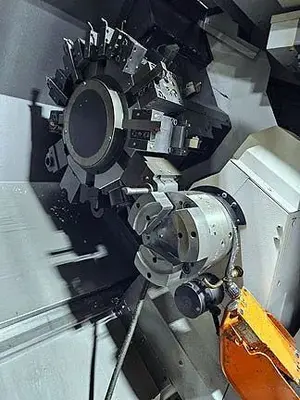

TURRET

Single Turret Live Tooling: Equipped With

Tool Positions: 12

Live Milling Max RPM: 6,000 RPM

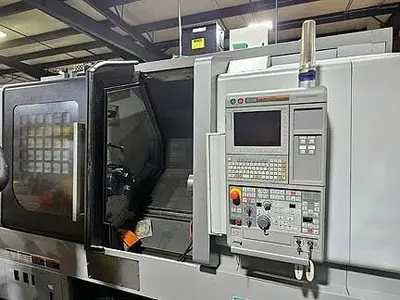

CONTROL

Control Make/Model: Mori Seiki M730 BM CNC Control
OPTIONS

Machine Options: All Available Manuals;Tool Presetter

Additional Machine Specs: Bolt-On Turret

Tool Holders

Spindle Travel: 28.9″

Y-Axis Travel: +/1.97″

Chip Removal: Chip Conveyor

Dimensions: 128″ x 83″ x 97″

Weight: 15,000 LBS approx
The 2012 Mori Seiki NLX-2500SY/700 is a high-end multi-axis CNC turning center, configured for complex part manufacturing with both main and sub spindles, live tooling, and Y-axis capability. Outfitted with the Mori Seiki M730BM CNC control, this lathe enables simultaneous machining operations with precision and speed. This lathe boasts a maximum turning diameter of 18.11 inches and a maximum turning length of 31.3 inches, making it well-suited for medium to long parts. The main spindle, with a robust 25 HP motor, handles bars up to 3.15 inches in diameter and reaches 4,000 RPM, while the sub spindle operates up to 6,000 RPM and accommodates 1.69-inch bar stock. Its 12-station live tool turret supports 6,000 RPM milling, powered by a 7.5 HP live tool drive, granting significant versatility for secondary operations without part repositioning. With Y-axis travel of ±1.97 inches, and C-axis control on both spindles with .001° indexing, this machine is capable of intricate contouring and cross-axis features. Rapid traverse rates of 1,181 IPM (X/Z) and 393.7 IPM (Y) ensure swift positioning, minimising idle time. The machine also includes an L-style chip conveyor, coolant system, bolt-on turret holders, presetter, and both 10″ and 6″ 3-jaw chucks. At approximately 15,000 lbs, and measuring 128″ x 83″ x 97″, the NLX-2500SY/700 is a compact yet formidable multitasking centre built for reliability and precision.
