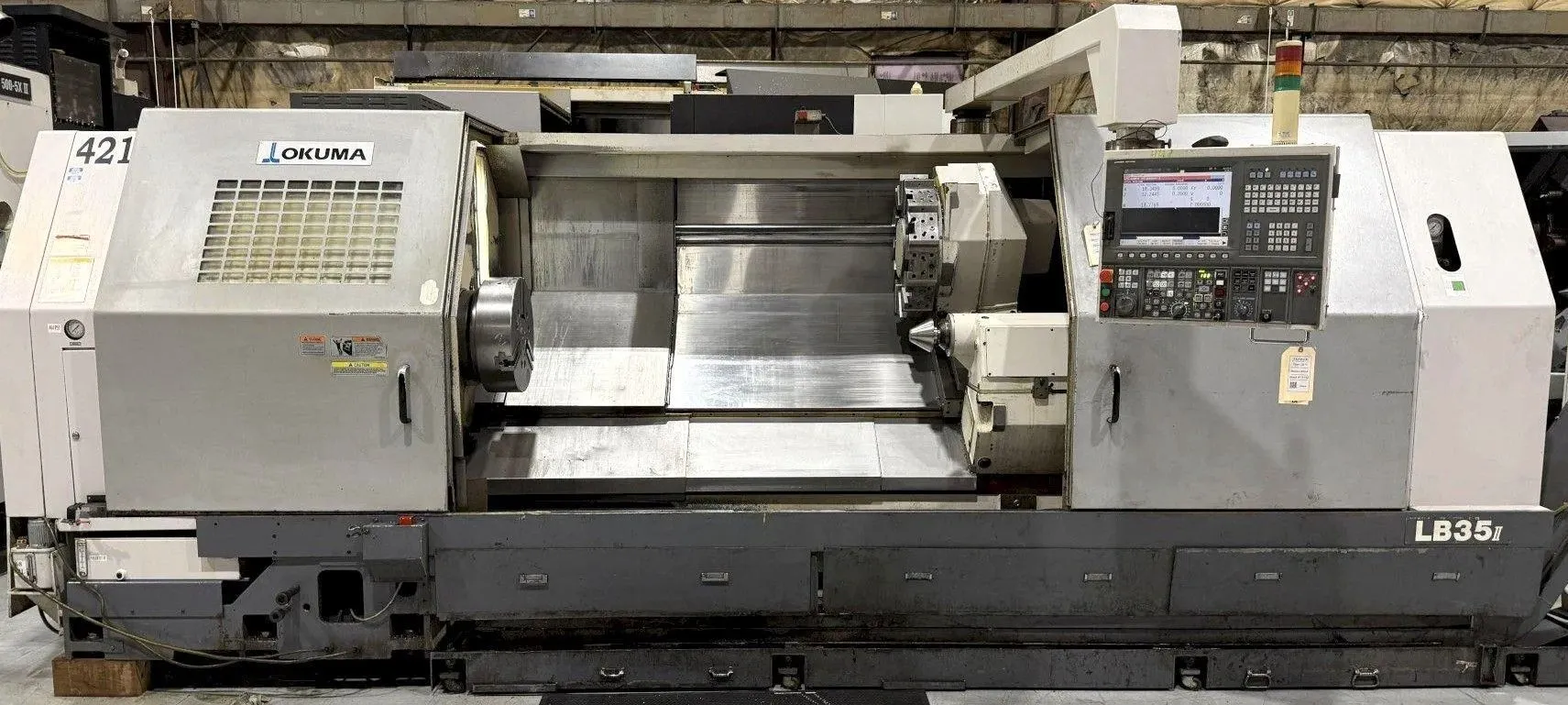

OKUMA LB35II Horizontal Lathe, New in 2011.
OSP-P200L CNC Control
80" Center Distance
18" Hydraulic Chuck
3.5" Bar Capacity
Programmable Tailstock
| Swing | 27.56" | 700.02 mm |
| Machining Length | 80" | 2,032 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 19.29" | 489.97 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 232" x 90" x 90" | 232" x 90" x 90" |
| Weight | 28500 | 28500 |
CNC Control yes
Type of CNC Control OSP-P200L
# Axis 2
Swing 27.56"
Turning Diameter 19.29"
Center Distance 81.5"
Chuck Size 18"
Bar Capacity 3.5"
X-Axis Travel 13"
Z-Axis Travel 81.5"
Spindle Speed 3,200 rpm
Main Motor 40 hp
Turret Capacity 12 yes
Tailstock no
Live Tooling no
Y Axis (Yes / No) no
Sub Spindle no
Machine Dimensions 232" x 90" x 90"
Machine Weight 28500 lb
- OSP-P200L CNC Control
- Chip Conveyor
- Coolant Tank
- Programmable Tailstock
