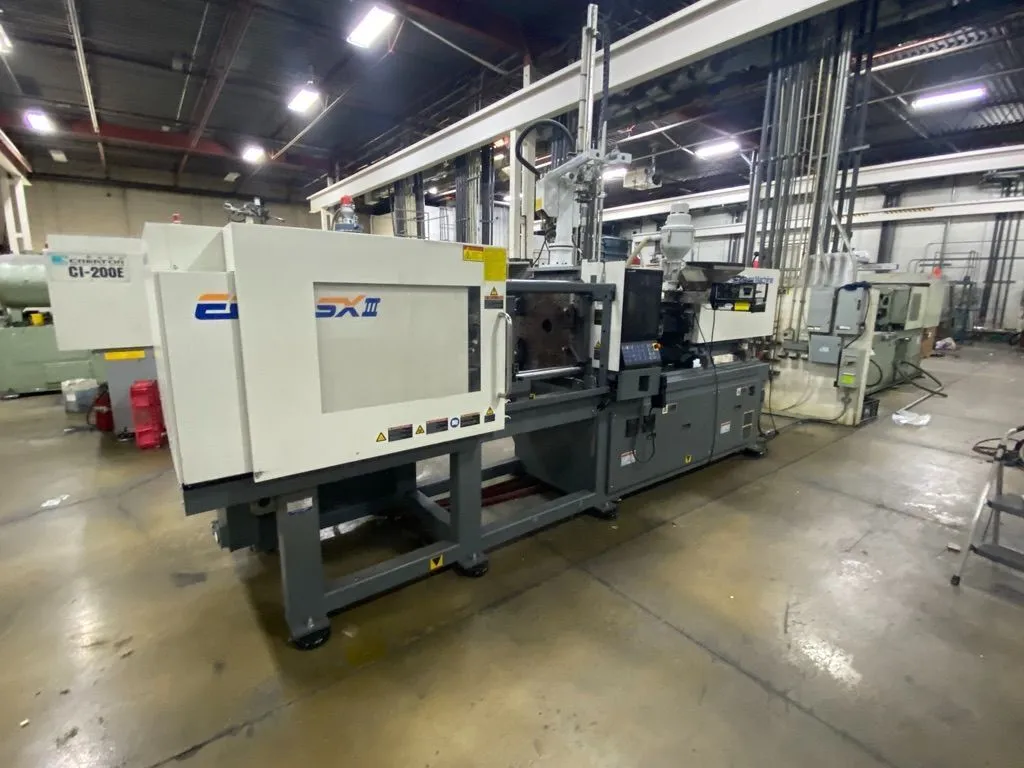

USED 2020 Shibaura Machine EC140SXIIIV70-U34-4A
Overview
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 140 T | 127.006 t |
| Barrel Code | 4A | 4A |
| Shot Volume (PS) | 6.4 oz | 180 g |
| Shot Volume (PE) | 5.1 oz | 144.9 g |
| Screw Diameter | 1.57" | 39.878 mm |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Screw Speed STD | 320 rpm | 320 RPM |
| Injection Rate STD | 15.3 ft³/min. | 0.4 m³/min. |
| Injection Rate High Speed | 30.7 ft³/min. | 0.9 m³/min. |
| Screw Torque STD | lbf | lbf |
| Plasticizing Capacity (PS) STD | OZ/Sec | 31.2 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 20.1" | 510.54 mm |
| Tie Bar Distance V | 18.1" | 459.74 mm |
| Platen Dimension H | 28.3" | 718.82 mm |
| Platen Dimension V | 26.4" | 670.56 mm |
| Clamp Stroke | 15.7" | 398.78 mm |
| Maximum Daylight | 37.4" | 949.96 mm |
| Mold Height Min | 7.1" | 180.34 mm |
| Mold Height Max | 21.7" | 551.18 mm |
| Ejector Force | 3.3 T | 2.994 t |
| Ejector Stroke | 3.54" | 89.916 mm |
| Main Breaker Electric Capacity | 48 kva | |
| Heater Capacity | 11.2 kva | 11.2 kV·A |
| Injection Orientation | Horz | Horz |
| Control | CNC (INJECTVISOR V 70) | CNC (INJECTVISOR V 70) |
| Dimensions | 16.7 x 4.7 x 5.6 | 16.7 x 4.7 x 5.6 |
| Weight | 11,600 | 11,600 |
Dual Air Blow Auto Purge
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port
Equipped With
Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard
