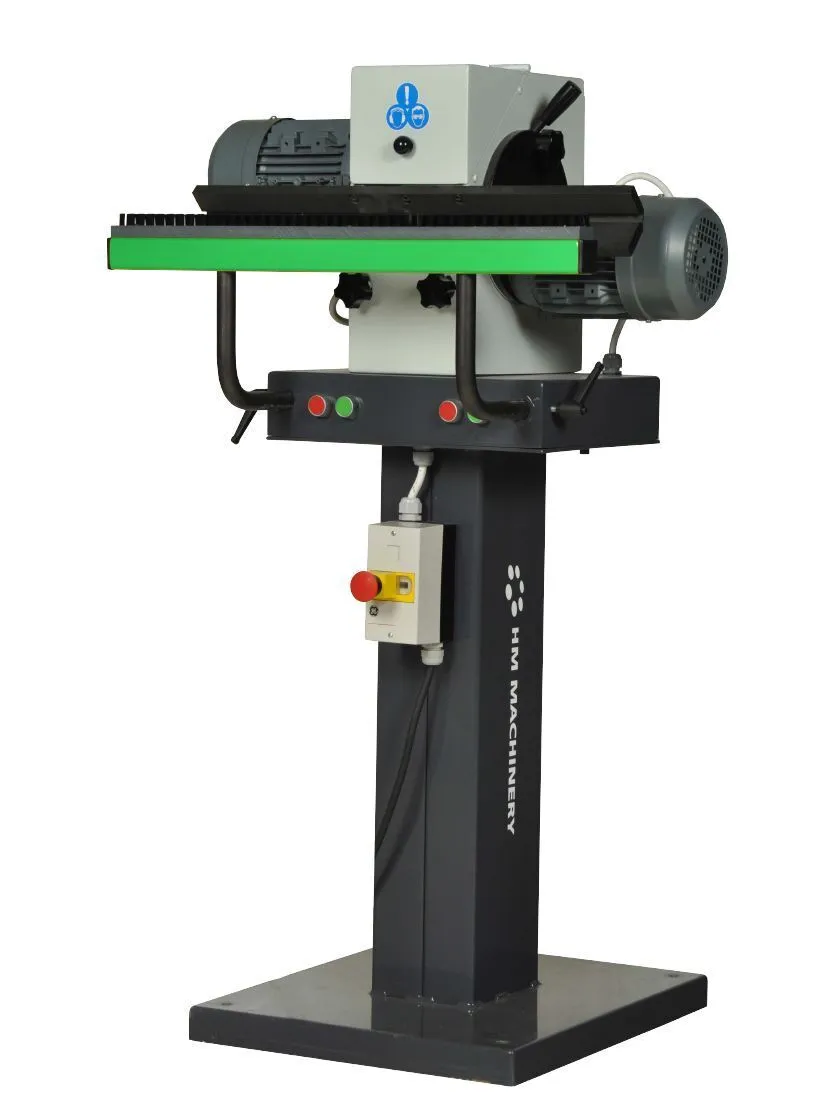

Sheet Metal Deburring Machine HM Model ZA 250 design ensures effective, safe and clean edge deburring of most ferrous and nonferrous materials utilizing two abrasive flap wheels and featuring the following:
● Motors rotate in opposite directions, independent of each other, and can debur one or both edges at the same time.
● Top cover opens to grind or finish flat surfaces.
● Efficient deburring of sheet or plate up to 3/8″ thickness, in most metals, including; mild steel, aluminum, stainless steel, copper, and brass can be accommodated.
● ZA 250 Sheet Deburrer comes complete with two 60 Grit flap wheels and a base.
● Separate powered dust extractor with special mounting plate can be supplied as optional.
● 1400 / 1700 rpm
| # Spindle Speeds | 1 | 1 |
| Voltage | 3ph 240 or 480V | 3ph 240 or 480V |
| Motor | 0.6 kW | 0.7 hp |
| Max sheet thickness (in.) | 0.37 | 0.37 |
| Flap Wheels (Ø in.) | 9.8" x 2" | 9.8" x 2" |
| Flap wheels speed (m/sec) | 18 | 18 |
| Dimensions | 21.4" x 26.5" x 48.8" | 21.4" x 26.5" x 48.8" |
| Weight | 154.3 lbs | 154.3 lbs |
