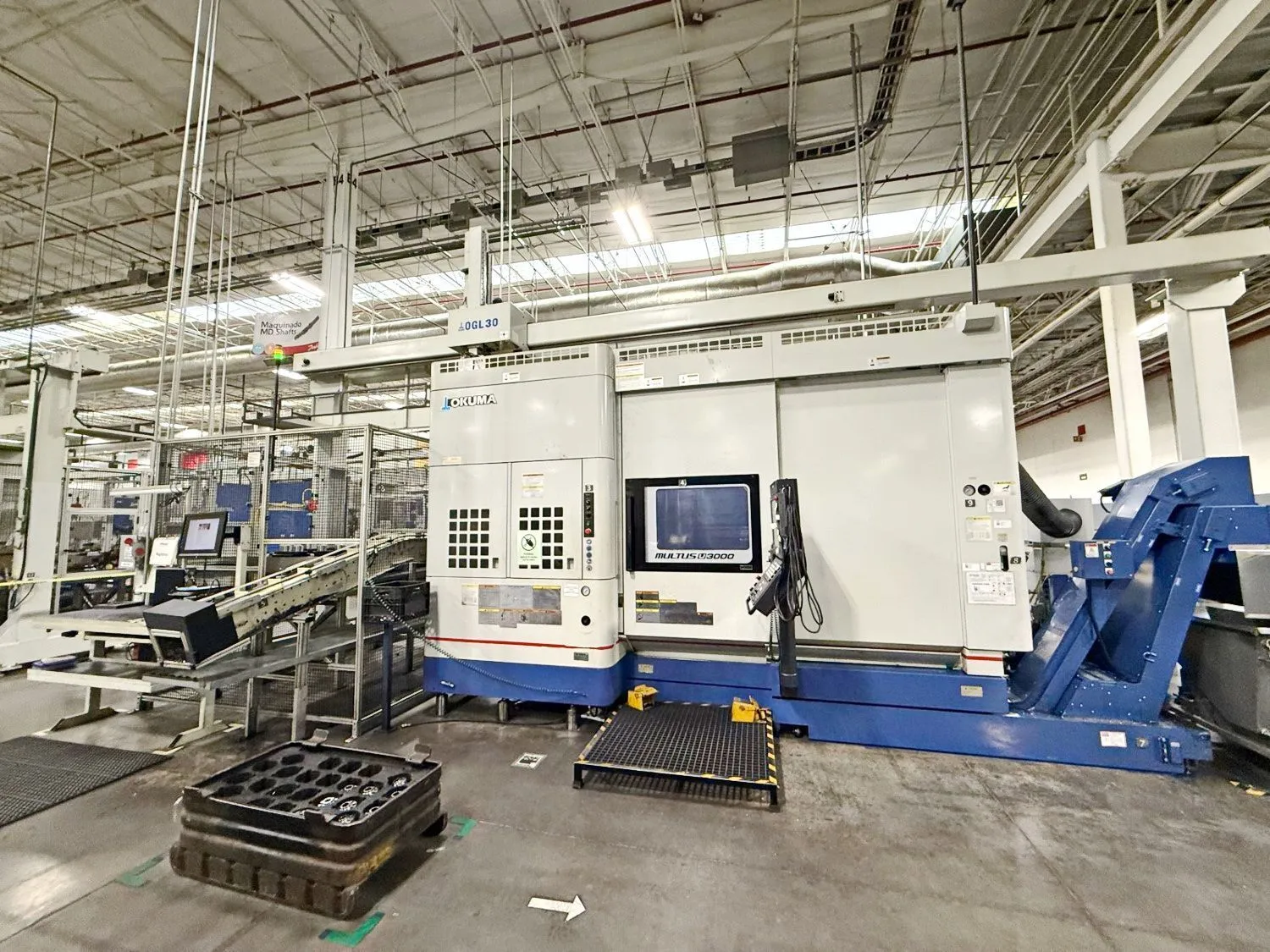

2016 Okuma Multus U3000 Multi-Tasking CNC Machining Center, 5-Axis, Sub-Spindle, B-Axis Indexing, OGL 30 Gantry System, High-Pressure Coolant, Capto C6 Tooling System, Chip Conveyor
| Max Turning Dia (Upper) | 25.59" | 649.99 mm |
| Max Turning Dia (Lower) | 12.6" | 320.04 mm |
| Machining Length | 59.06" | 1,500.1 mm |
| X-Axis | 25.39" | 644.91 mm |
| X2-Axis | 9.25" | 234.95 mm |
| Y-Axis | ±4.92" | ±4.92" |
| Z-Axis | 62.99" | 1,599.9 mm |
| B-Axis | −30° ~ +210° | −30° ~ +210° |
| C-Axis | 360° | 360° |
| W-Axis | 62.36" | 1,583.9 mm |
| Power (Main) | 30 hp | 22.4 kW |
| Power (Sub) | 30 hp | 22.4 kW |
| Power (Milling Spindle) | 33 hp | 24.6 kW |
| RPM (Main) | 5,000 RPM | 5,000 RPM |
| RPM (Sub) | 5,000 RPM | 5,000 RPM |
| RPM (Milling Spindle) | 12,000 RPM | 12,000 RPM |
| # ATC | 80 | 80 |
| # Axis | 5 | 5 |
| Taper Bore (Main) | 3.15" | 80.01 mm |
| Taper Bore (Sub) | 3.15" | 80.01 mm |
| Turret Capacity | 12 | 12 |
| Spindle Nose (Main) | A2-6 | A2-6 |
| Spindle Nose (Sub) | A2-6 | A2-6 |
| Rapid Traverse (X/Y/Z) | 1,968 / 1,574 / 1,968 in/min. | 1,968 / 1,574 / 1,968 in/min. |
| Control | CNC (OSP-P300S) | CNC (OSP-P300S) |
| Dimensions | 213.58" X 121.34" X 119.29" | 213.58" X 121.34" X 119.29" |
| Weight | 38,500 lb | 38,500 lb |
Full 5-axis
Sub-spindle
B-axis indexing
OGL 30 gantry system (66 lb payload)
High-pressure coolant
Capto C6 tooling system
Chip conveyor
