Fanuc

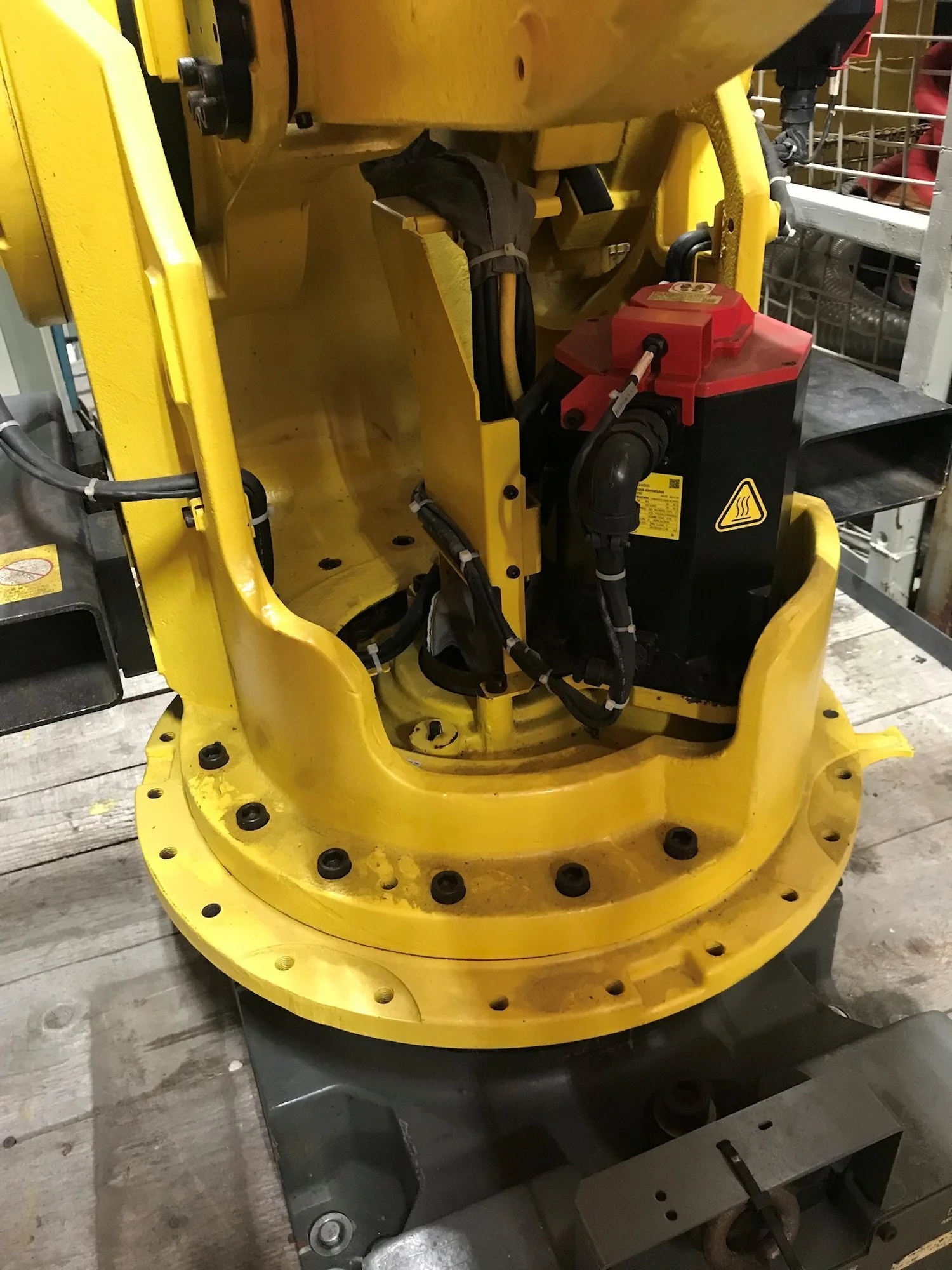

FANUC M-900ia/260l 6-Axis Robot
Specifications:
Axis 6 Payload 260kg H-Reach 122"
Repeatability +/- 0.3mm
Robot Mass 1800 Kg Structure
Articualted Robot Motion
J1 100/s (1.75 rad/s)
J2 105/s (1.83 rad/s)
J3 95/s (1.66 rad/s)
J4 120/s (2.09 rad/s)
J5 120/s (2.09 rad/s)
J6 200/s (3.49 rad/s)
J1 Robot Motion Range +/- 180 degrees
J2 Robot Motion Range +/- 75 degrees
J3 = 90, -121
J4 +/- 360
J5 +/- 125
J6 +/- 360
Equipped With:
R31ia Controller Cables
Teach Pendant
Electric Servo Drives
Machine is is under power in plant
