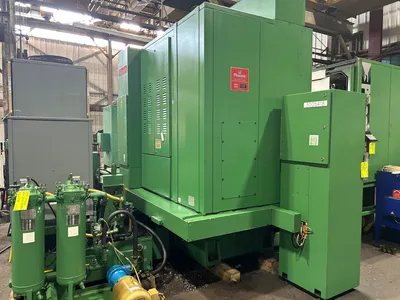

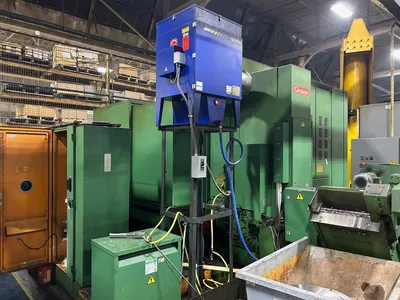

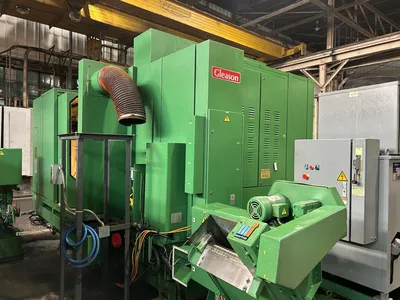

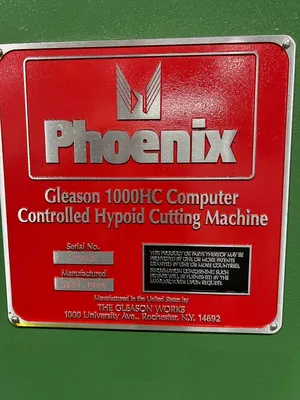

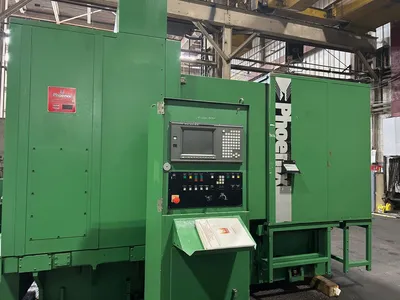

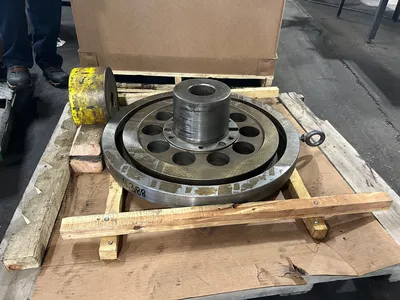

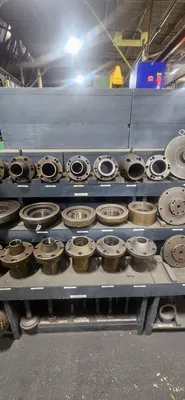

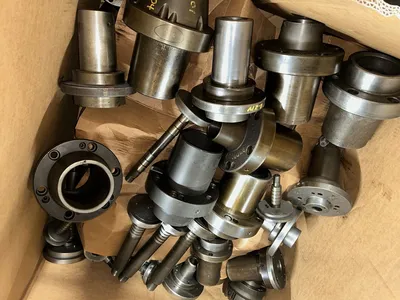

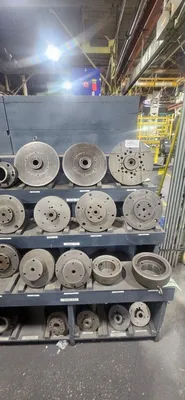

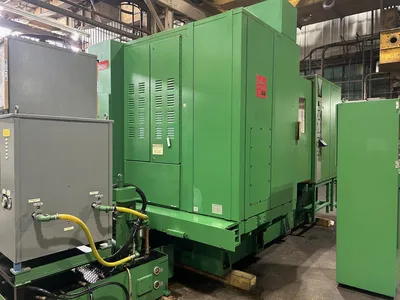

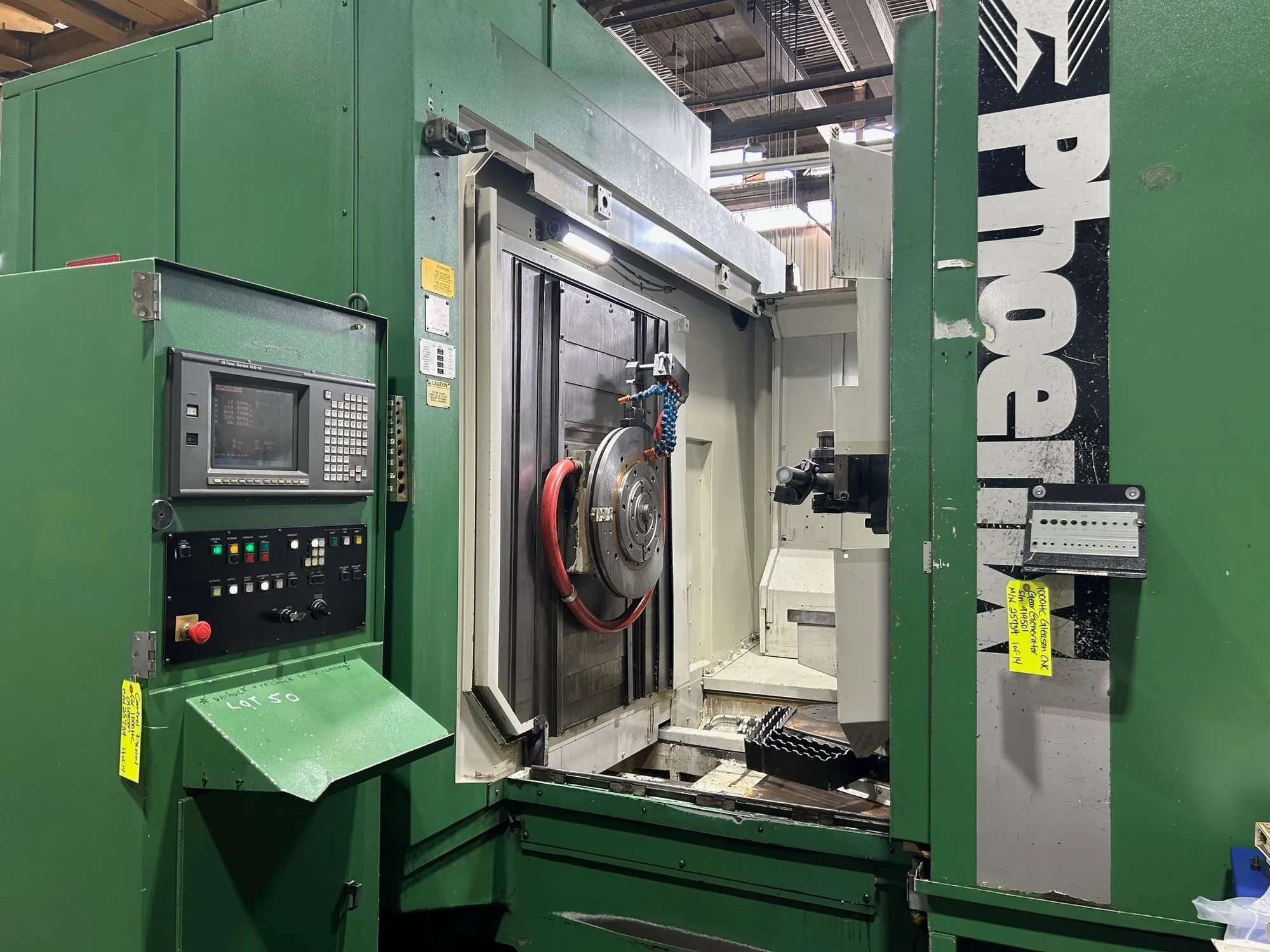

USED 1996 GLEASON PHOENIX 1000HC
Overview

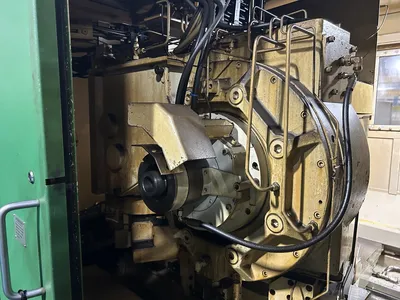

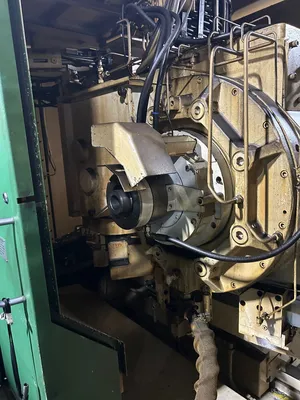

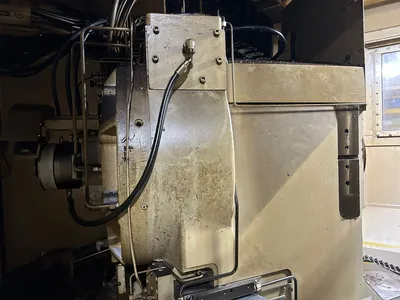

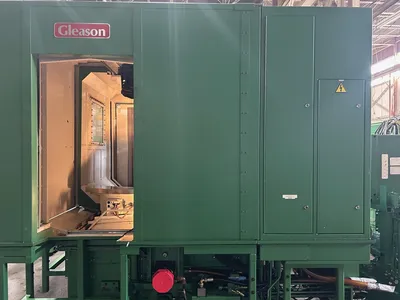

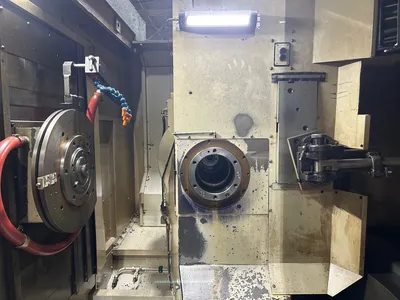

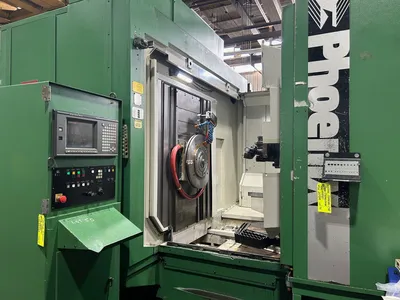

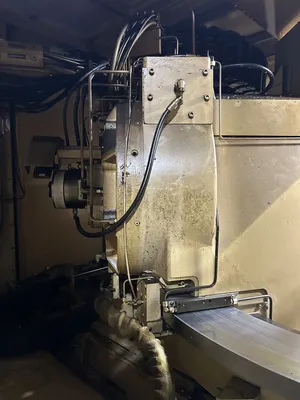

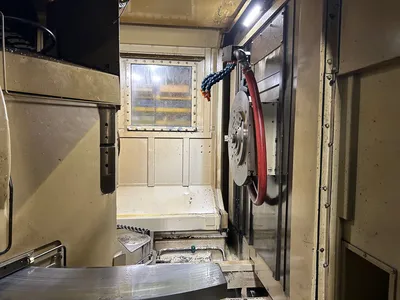

The Gleason Phoenix 1000HC is a CNC (Computer Numerical Control) hypoid cutting machine designed for the fast, flexible production of large-diameter bevel gears using methods such as face hobbing, face milling, and power skiving. It features a robust, reliable design with excellent chip containment, a user-friendly Fanuc control system for easy programming and operation, and capabilities for cutting various gear types, including straight and spiral bevel gears, face gears, and face clutches.
Specs
Specifications:
Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1
Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm)
Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm)
Range of Tooth Numbers: 1-300 Inclusive
Gear Pitch Diameter, Maximum: 1000 mm (39.37")
Cutter Size, Maximum: 18" (diameter) Face Milling
Cutter Size, Maximum: 350 mm (radius) Face Hobbing
Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg.
Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed)
A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM
B-Swinging Base: 0 to 30 deg./sec, N/A
C-Cutter: 0 to 500 deg., Same
X-Horizontal: +/-305mm (+/-12")
Y-Vertical: +/-305 mm (+/-12")
Z-Sliding Base: -25/+700mm (-1/+28")
B-Root Angle: -5 Degree/+90 Degree
Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper)
Taper Per Foot:3/4", Same
Depth of Taper Front:6", 152.40 mm
Depth of Bore: 678 mm (26.7")
Diameter of Taper Bore: 140 mm (5.5")
Diameter Through Spindle of Hole:7.125", 180.98 mm
MACHINE DIMENSIONS:
Length x Width:233"x 209", 5920 mm x 5310 mm
Height: 129", 3280 mm
Weight: 65,000 lbs., 29,484 kg

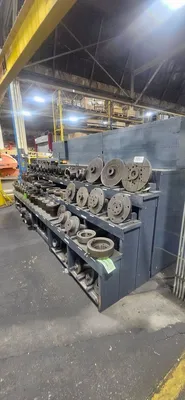

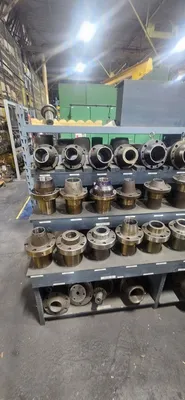

Equipped With

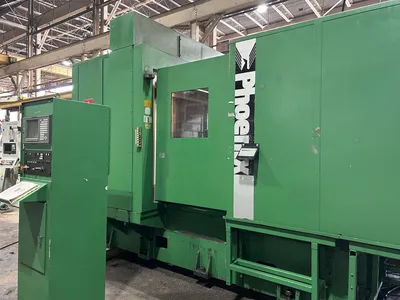

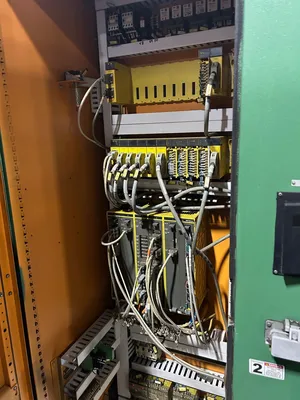

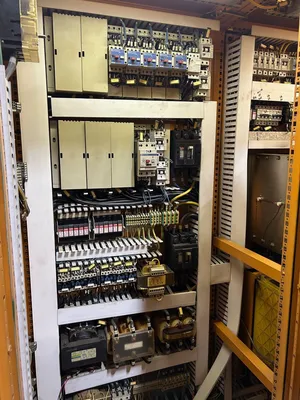

Fanuc 150MB Control

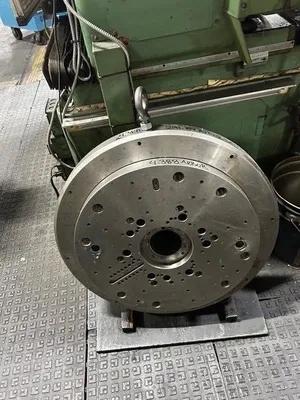

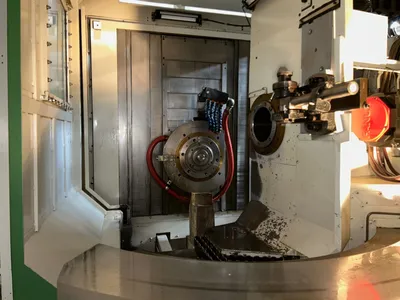

Hydraulic Chucking Work Spindle

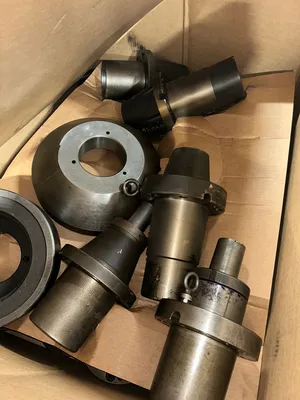

Large Bore Work Spindle #80 Taper
Stock Divider
Helical Motion
Modified Roll

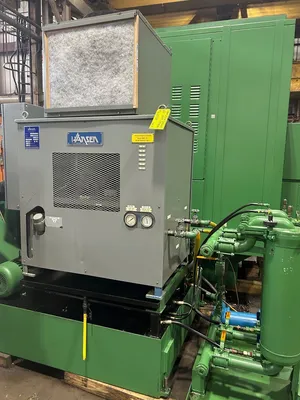

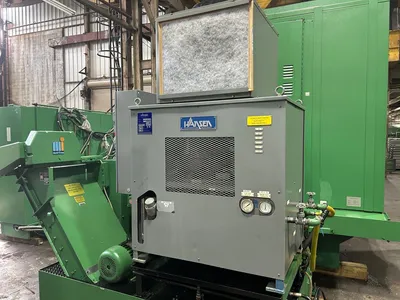

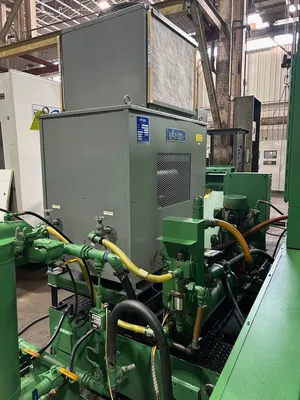

Hansen Coolant Chiller & Filtration
Coolant Tank & Pumps

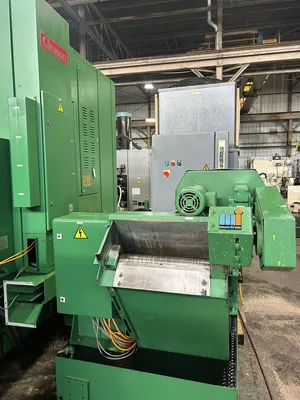

Chip Conveyor
Chip Hopper
Reven Mist Collector

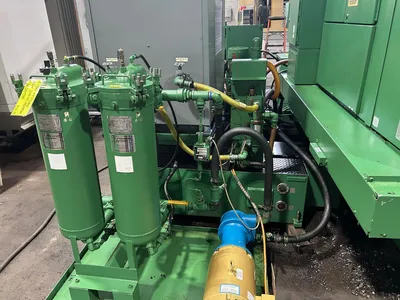

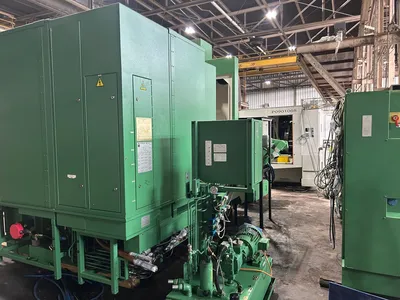

Hydraulic System
Transformer

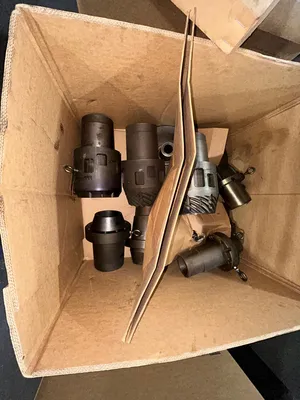

Cutter Bolt
Work Light
Operator Platform
Hand Tools
Documentation
