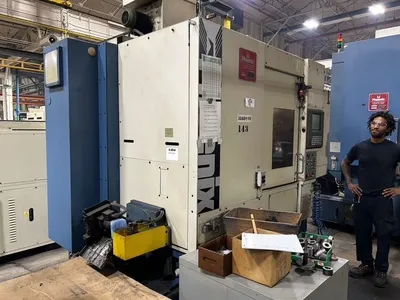

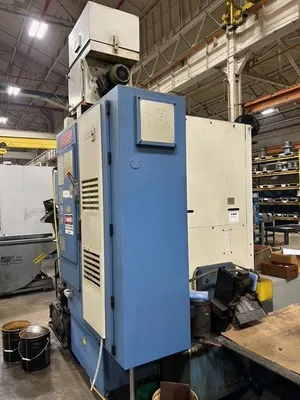

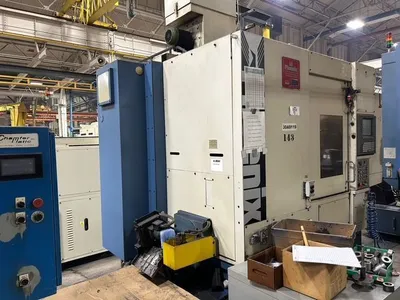

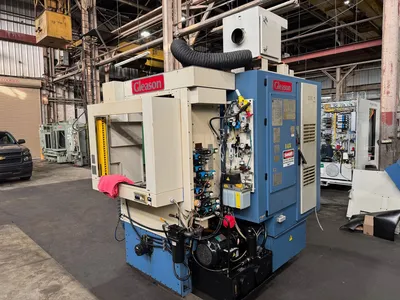

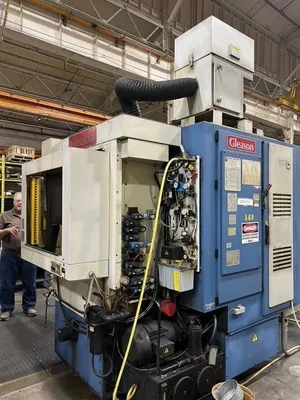

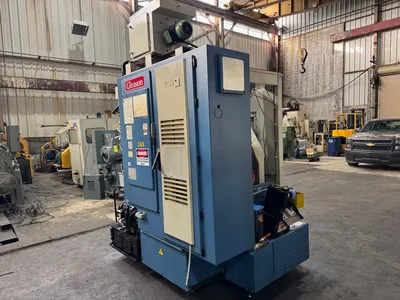

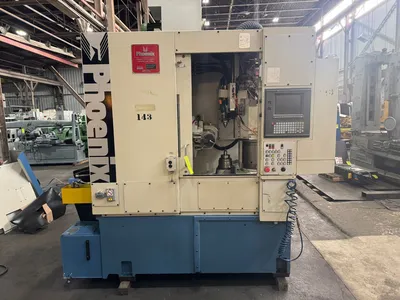

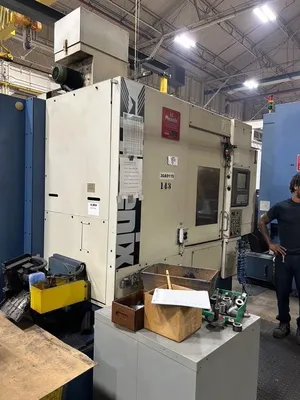

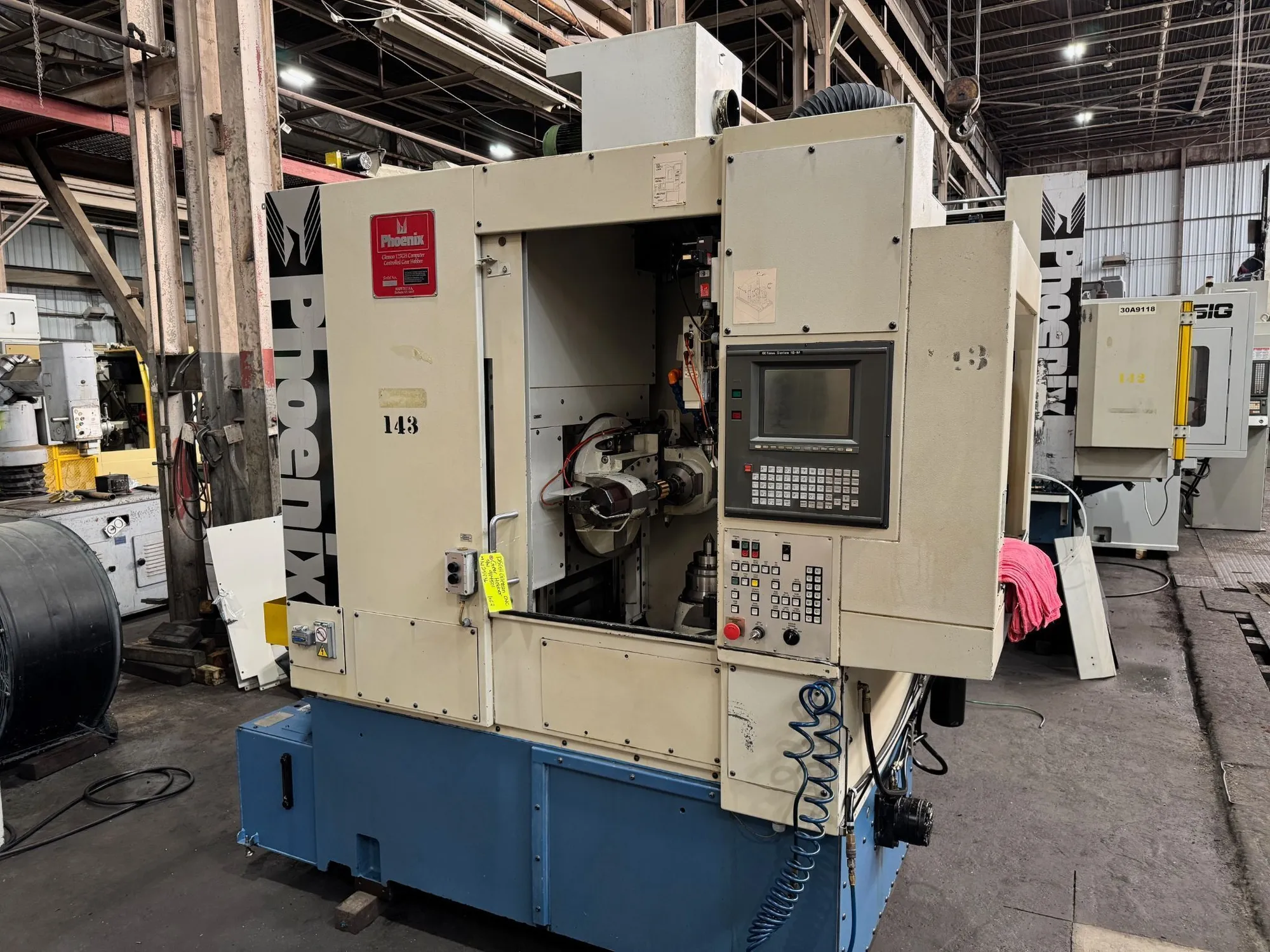

The Gleason 125GH is a CNC vertical gear hobbing machine manufactured by Gleason Corporation, designed for high-speed, automatic gear cutting with a compact footprint. It features a Fanuc control system, can cut gears up to 125 mm (5 inches) in diameter, and can be optionally equipped with software to cut gears up to 200 mm (8 inches) in diameter. The machine includes features like a chip conveyor, mist collection, and an 180-position loader for parts.
| Horz/Vert | Vert | Vert |
| Maximum Workpiece Diameter | 125" | 3,175 mm |
| Maximum Diametral Pitch | 200 dp | 200 dp |
| Module | 3.0 | 3.0 |
| Axial Travel | 300 mm | 11.811" |
| Maximum Hob Diameter | 115 mm | 4.5276" |
| Hob Arbor Size | 1.25" | 31.75 mm |
| Hob Speed | 1,500 RPM | 1,500 RPM |
| Control Manufacturer | Fanuc | Fanuc |
| Control | CNC (150MB) | CNC (150MB) |
| Dimensions | 102" x 65" x 123" | 102" x 65" x 123" |
| Weight | 15,000# | 15,000# |

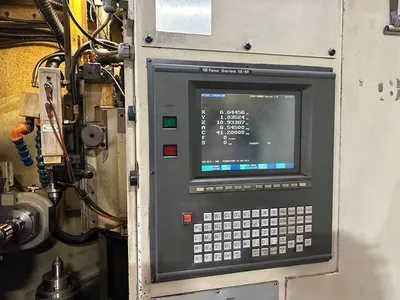

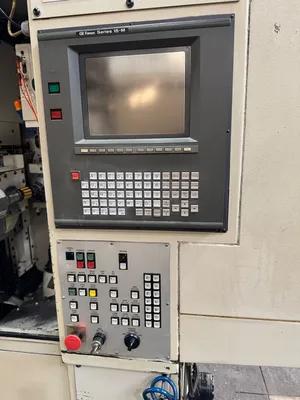

Fanuc 150MB Control

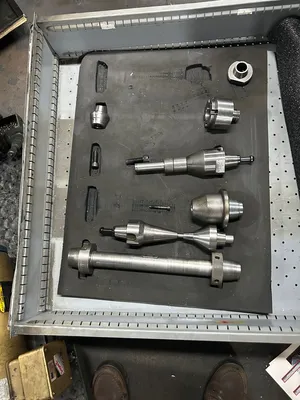

1.25" Hob Arbor

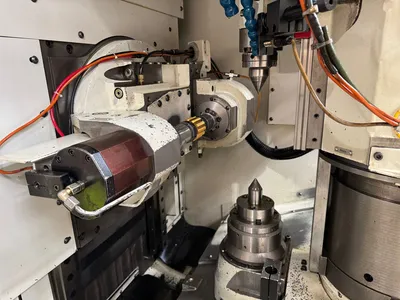

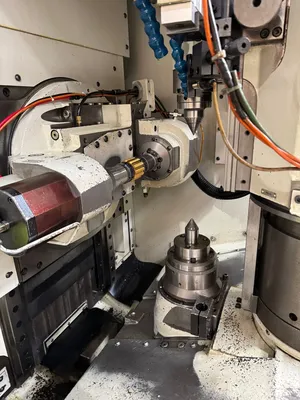

Tailstock W/Center
180 Degree Loader
Coolant System
Chip Conveyor
Hydraulic System
Mist Collector
Work Light
Light Curtain
Manuals
