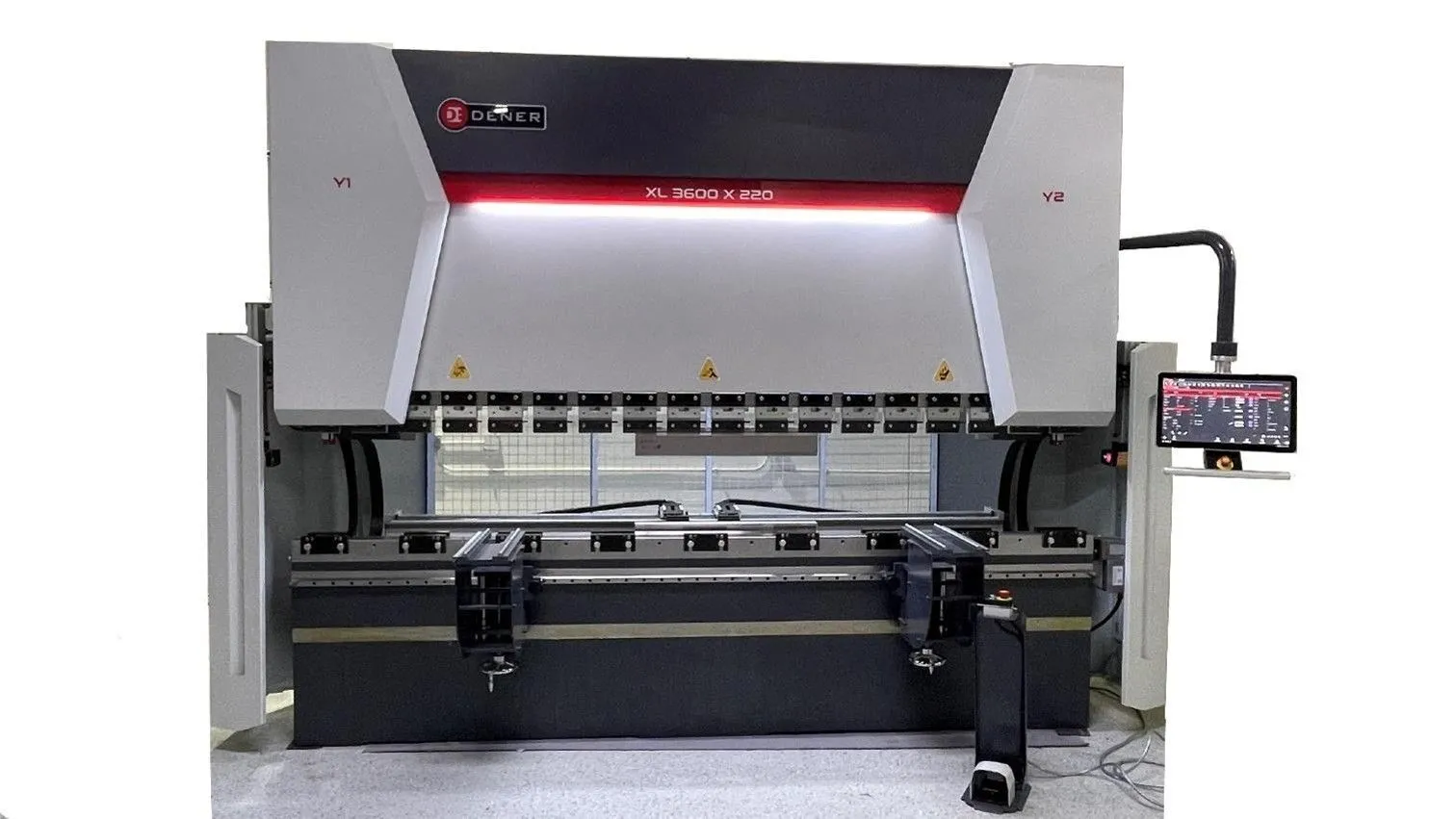

NEW DENER XL 220-40
Overview
Specs
Specifications (subject to buyer verification):
Capacity: 242 US Tons (220 metric tons)
Ram Repeatability: ± 0.0004"
Approach Speed Max.: 5.5 IPS
Bend Speed Max.: 0.4 IPS
Return Speed Max.: 5.1 IPS
Punch Holder Height: 4.72"
Back Gauge Speed: 295 IPM
Back Gauge Repeat Accuracy: 0.002”
Back Gauge X Travel: 29.6"
Back Gauge Max Gauge Point: 40"
R Axis Travel (Motorized optional): 9.8"
Bending Length: 159.4"
Distance Between Frames: 139.8"
Ram Stroke: 13.8"
Daylight w/o Punch Holders: 25.59"
Throat Depth: 17.7"
Table Height: 36.22"
Table Width: 3.74"
Weight: 31,350 lbs
Oil Capacity: 75 Gallon
Equipped With
Equipped With (subject to buyer verification):
DELEM 66T (17”)
1281 code EUROSTAMP punch – 835 mm sections
2067 code EUROSTAMP 4V die (50-32-22-16 mm V’s) – 835 mm sections
CNC crowning
DSP laser (laser finger safety)
Hydraulic Oil Cooler
Y1, Y2, X - R CNC axes
Side safety covers, and back protection covers without safety switch
LED lights over back gauge and front work area
Safety interlocked side and rear gates
CSA certified electric components
480V -3ph – 60hz electric
12-month warranty for machine
