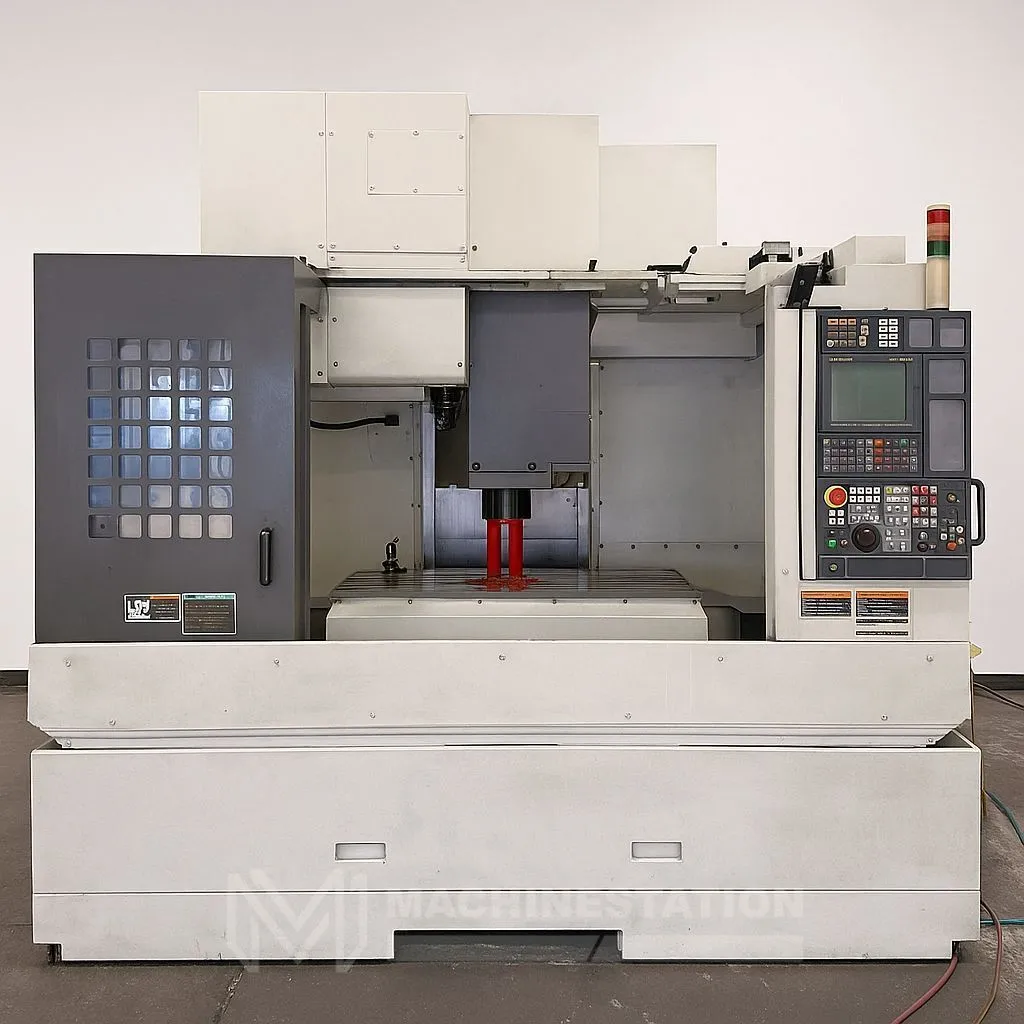

USED 2007 MORI SEIKI NVD5000 α1B/40
Overview
Specifications
| X Axis | 40.2" | 1,021.1 mm |
|---|---|---|
| Y Axis | 20.1" | 510.54 mm |
| Z Axis | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT-40 | BT-40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (MSX-501III ( FANUC ) CNC Control) | CNC (MSX-501III ( FANUC ) CNC Control) |
| Dimensions | 110″ L X 108″ W X 102″ High | 110″ L X 108″ W X 102″ High |
| Weight | 18190 lbs | 18190 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

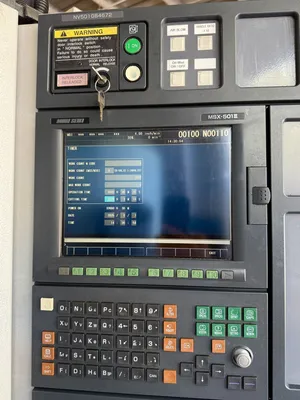

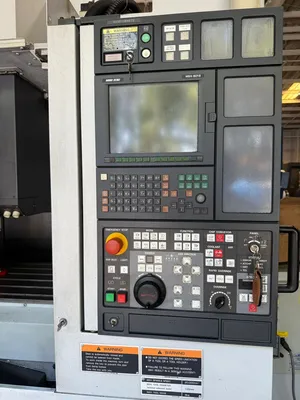

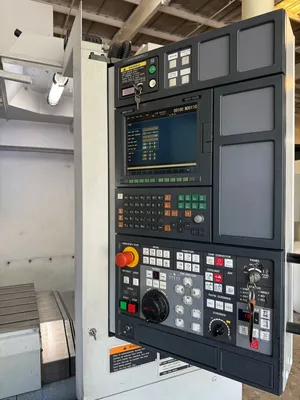

MSX-501III ( FANUC ) CNC Control
3,225 Hours Cutting Time
30 Station Automatic Tool Changer
25 HP high torque Spindle Motor
Rigid Tapping

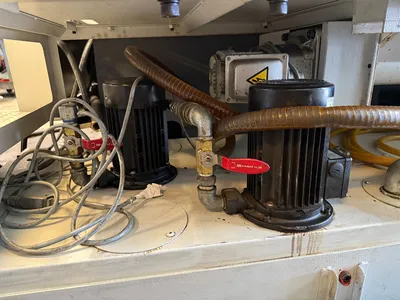

Coolant System
Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

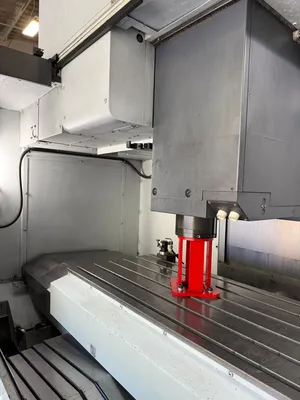

Table:
Length: 52.0″
Width: 23.6″
Max Weight on Table: 2640 lbs
Number of T-slots & Size: 6 × 0.7″ × 3.9″

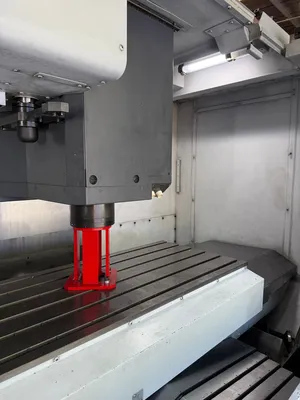

Spindle:
Taper Size: BT-40
Speed Range: 20,000 RPM
Spindle Power: 25 HP
Feed Rate:
Rapid X, Y & Z: 787 inch/PM
Cutting Feed rate: 787 inch/PM

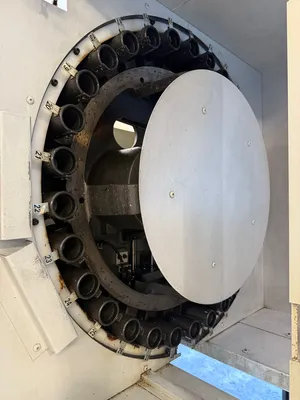

Automatic Tool Changer:
BT-40 Taper
Capacity: 30
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.92″
General:
Air Required: 80 psi, 4 scfm

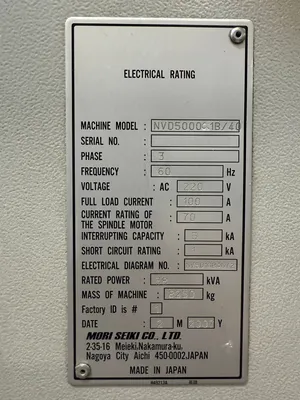

Power: 220v / 66FLA / 3-Phase / 38 kva
Overall Dimensions: 110″ L X 108″ W X 102″ High
Weight: 18,190 lbs Approx.
Equipped With
20,000 RPM High Speed Spindle – (Upgraded $30,000 value Included)
Through Spindle Coolant
Tool Presetter

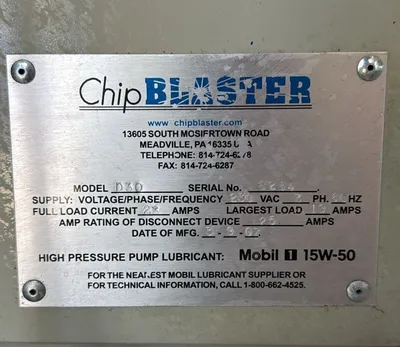

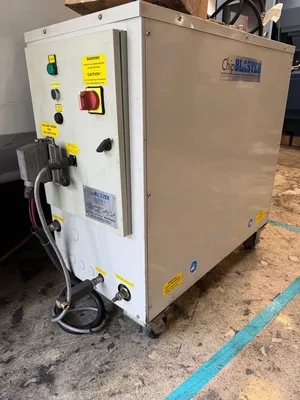

D-30 Chip Blaster High Pressure Unit – (Upgraded $10,950 value Included)

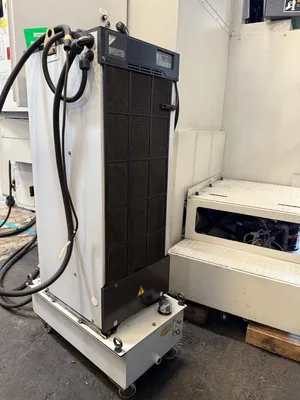

Spindle Chiller Unit
Levelling Pads
