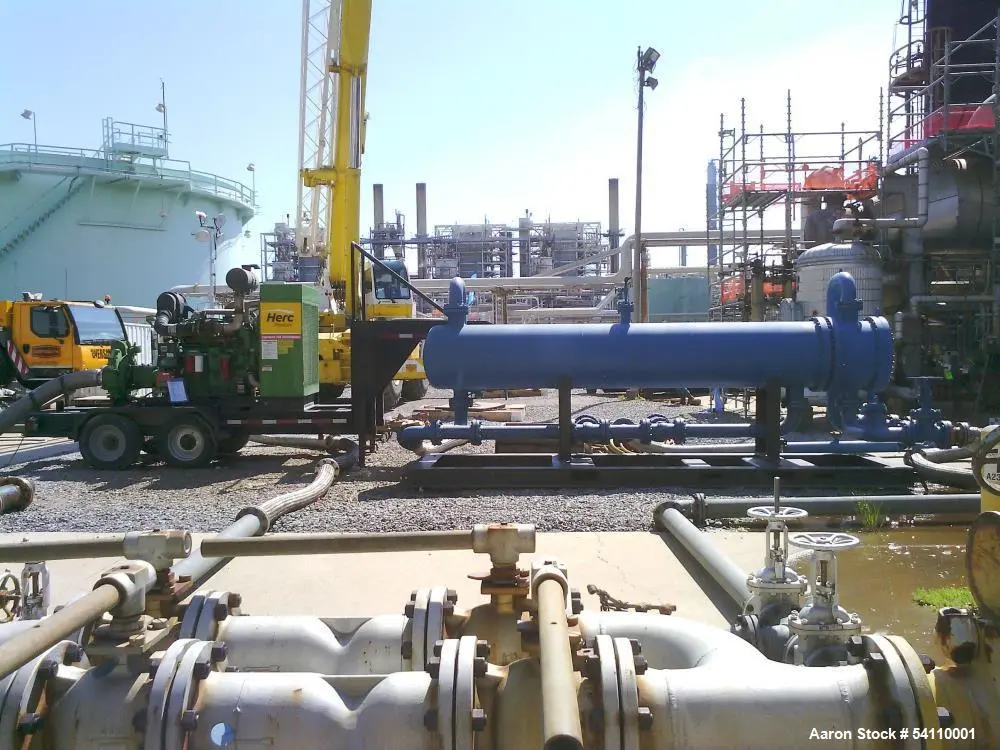

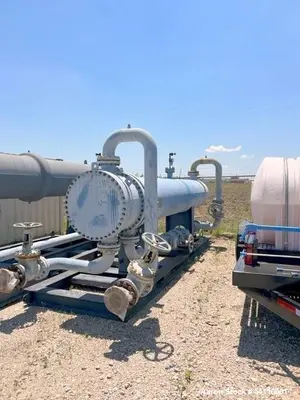

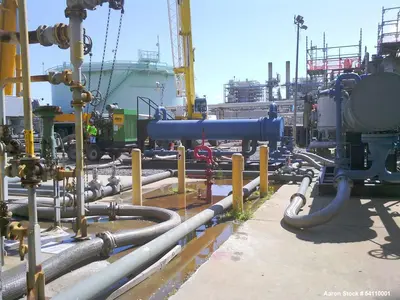

Used Gulf Coast Exchanger Shell & Tube Heat Exchanger | 1733 Sq. Ft. | 300 PSI | U-Tube | 2017
Overview
Description
Used Gulf Coast Exchanger Shell & Tube Heat Exchanger | 1733 Sq. Ft. | 300 PSI | U-Tube | 2017; SA-789 U-tube construction; SA-516-70 shell construction. 300 psig shell side design pressure; Full vacuum pressure; 390 psig shell side test pressure; 500 degrees F shell side design temp.; -20 degrees F shell MDMT; 1 pass shell side. 300 psig tube side design pressure; Full vacuum pressure; 390 psig tube side test pressure; 500 degrees F tube side design temp.; -20 degrees F MDMT; 2 pass tube side. (306) U-tubes .75" OD x approx. 13'3" straight length. OAD: 35.25" D x approx. 215.5" L. SN 824114, NB #103. Built 2017.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Brand: Gulf Coast Exchanger
Type: Shell and Tube Heat Exchanger
Serial #: 824114
National Board #: 103
Year Built: 2017
Construction Materials:
Tubes: SA-789 U-tube
Shell: SA-516-70
Description
This Used Gulf Coast Exchanger Shell and Tube Heat Exchanger offers 1733 square feet of heat transfer surface area and is designed for high-pressure, high-temperature industrial applications. Built in 2017, it features SA-789 U-tube construction with SA-516-70 shell for durability and corrosion resistance.
The unit is rated for 300 psig design pressure on both shell and tube sides, with full vacuum capability and a 500°F design temperature. Testing was conducted to 390 psig for both sides. The shell side is configured for 1 pass, and the tube side for 2 passes, with 306 U-tubes measuring 0.75" OD × 13'3" straight length.
Specifications
Surface Area: 1733 sq. ft.
Tube Construction: SA-789 U-tube, 0.75" OD × 13'3" length, qty 306
Shell Construction: SA-516-70
Shell Side:
Design Pressure: 300 psig
Test Pressure: 390 psig
Design Temp: 500°F
MDMT: -20°F
Passes: 1
Full vacuum rated
Tube Side:
Design Pressure: 300 psig
Test Pressure: 390 psig
Design Temp: 500°F
MDMT: -20°F
Passes: 2
Full vacuum rated
Overall Dimensions: 35.25" diameter × 215.5" length (approx.)
Year: 2017
Serial #: 824114
NB #: 103
What Might This Be Used For?
Oil refinery heat recovery systems
Petrochemical process heating or cooling
Power plant condenser or feedwater preheater
Chemical process temperature control
Natural gas processing and liquefaction
Fertilizer plant heat transfer systems
Offshore oil platform process equipment
Steam-to-liquid heat exchange applications
Food processing plant heating/cooling systems
District energy heating or cooling systems
