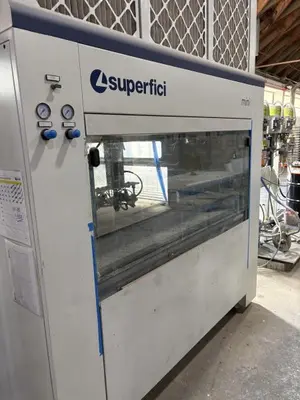

USED SUPERFICI MINI

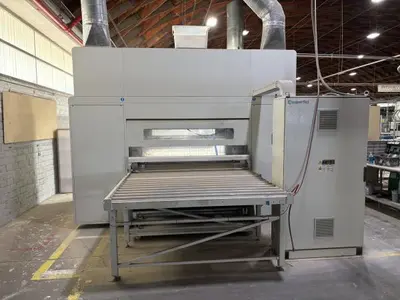

Superfici Model Mini Plus "P" Reciprocating Spray Machine
Workpiece Dimensions
Min/Max Length: 300mm/4880mm (12" /16')
Min/Max Width: 25mm/1300mm (1"/51")
Min/Max Thickness: 3mm/90mm ( 1/8" / 3-1/2")
Max Weight: 3lbs per SqFt
Conveyor System & Paper Protection System

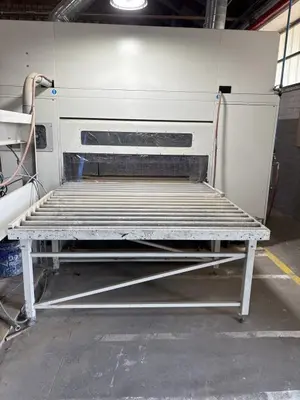

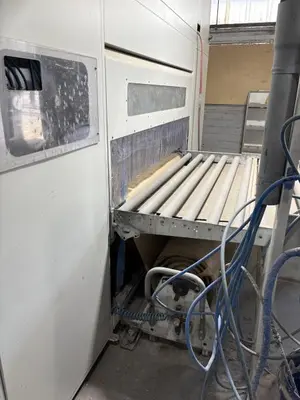

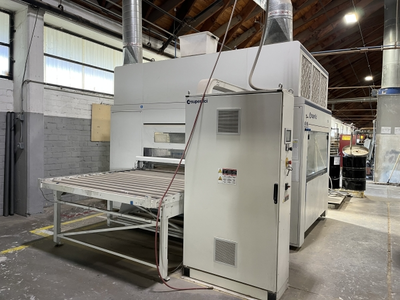

Infeed & Outfeed Driven Roller Conveyor
Central Belt Conveyor with Paper Protection System
Unwinding Station @ Infeed / Rewinding Station @ Outfeed
Paper Roll Size - 1600mm Wide x 300mm Max Diameter
Spraying Arm & Lacquer Circuits

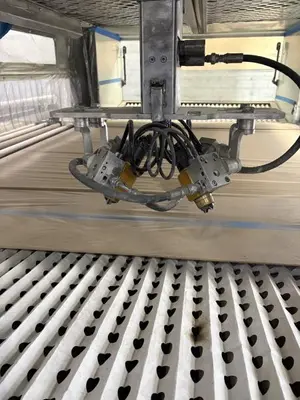

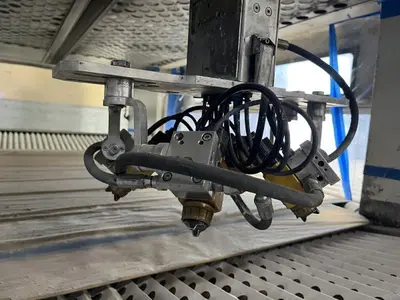

Reciprocating Spray Assembly

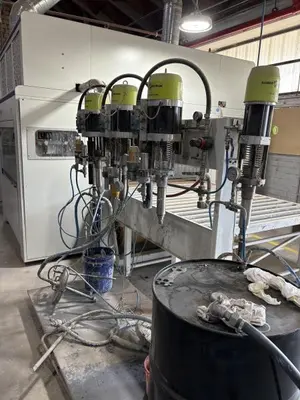

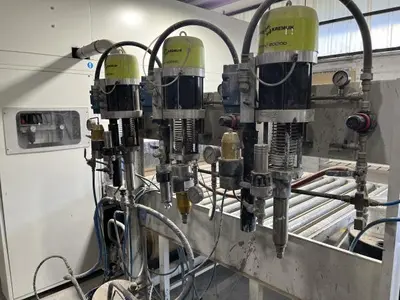

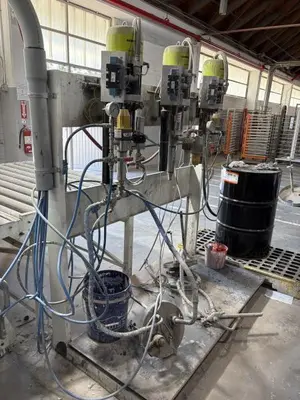

Up to 4 Guns & 2 Lacquer Circuits
Quick Change system for Gun Holders
Enclosed Cabin
Controlled Environment with Double Sided Suction System

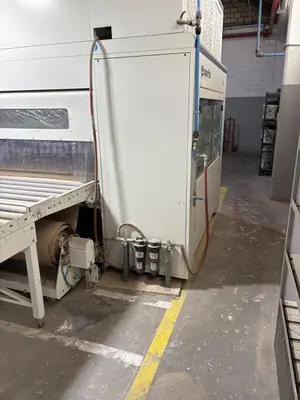

Double Stage Dry Filters to Left and Right of Conveyor
Inspection Windows
PLC Controlled - 5.7 Color touch screen w/ OPTISPRAY Software
Wired for 480v 3Ph
