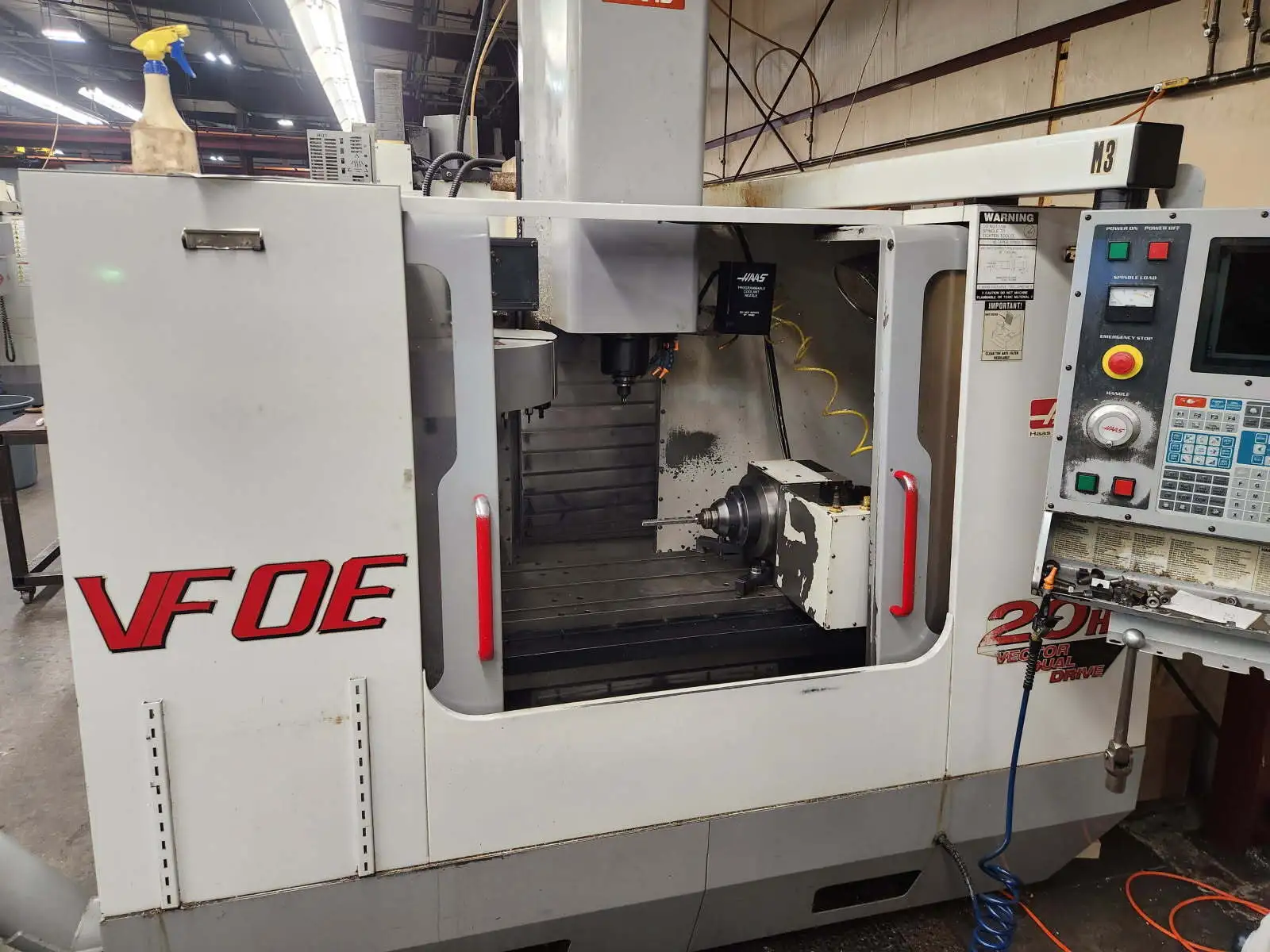

Used Vertical Machining Center: 3-axis, 20 hp, 75,000 RPM, CAT 40 taper, with 30" x 16" x 20" travel and 3,000 lbs table capacity. Features 4th axis readiness.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Table Capacity: 3,000 Lbs.
Spindle Taper: Cat 40
Spindle Speeds: 0 - 7,500 RPM
Rapid Traverse Rate (X/Y/Z): 710IPM
Spindle To Table Distance: 4" - 24"
Maximum Cutting Feed Rate: 300 IPM
4th Axis Ready (4th axis table is not included)
