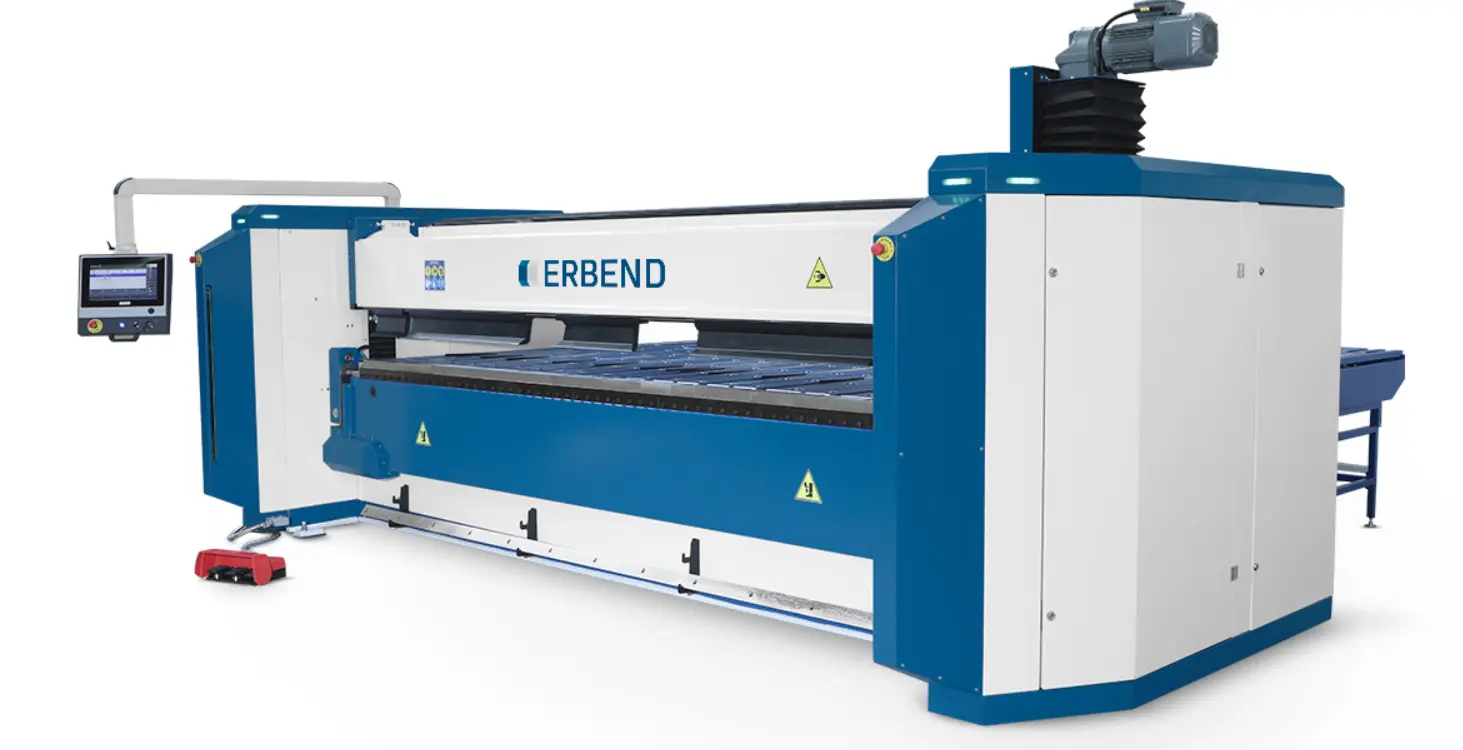

NEW ERBEND MFA 3230 COMBI

Dual drive clamping beam with ball screw spindle system for more clamping power.
250 mm opening height on 180° rotating combi clamping beam with 2 tooling stations as 125 mm high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.
Solid lower beam with channels and 2 sets of single piece folding tools as 15 and 40 mm wide.

Equipped with:
-Manual folding beam adjustment
-Front light barriers.
-4200 mm servo backgauge system upgrade with U shape sheet support table
-ERFOLD ADVANCED 2D/3D cnc graphic control software.
-Servo folding beam adjustment.
-Manual crowning system.
-Pneumatic quick goatfoot tool clamping.
