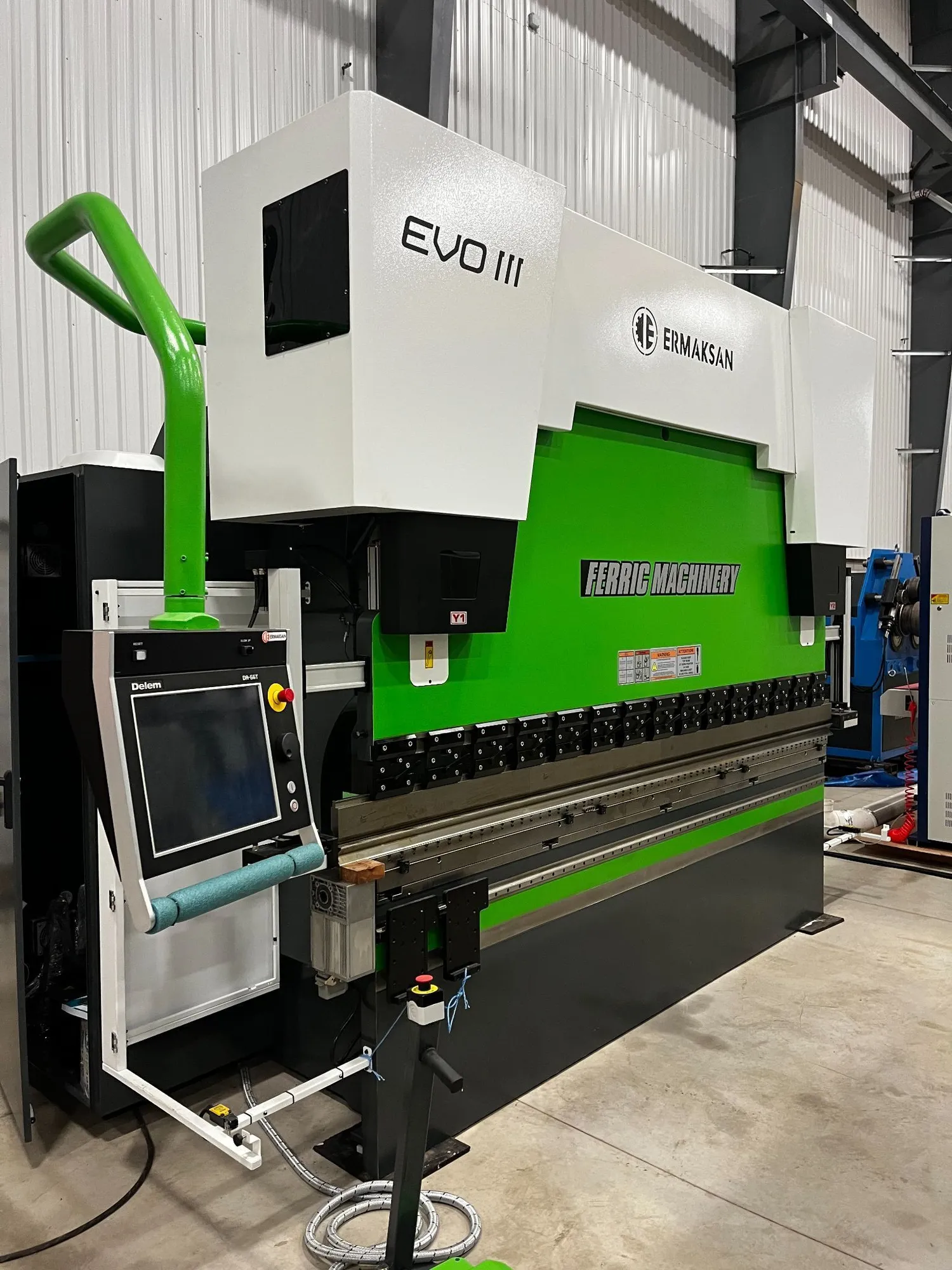

NEW ERMAKSAN EVO III 3100-175

The EVO III offers unmatched efficiency with up to 73% less energy consumption compared to traditional hydraulic systems. The machine has two seperate closed loop oil tanks driven by servos. This press brake configuration is considered hybrid because unlike a fully hydraulic machine there is much less oil and the system is only activated when called upon (up and down pedal). Hybrid brakes achieve similar efficiency, noise levels, speed, and accuracy as a fully electric brake all at a lower cost. The EVO III comes equipped with:

LAZERSAFE IRIS AUTOADJUSTING LIGHT CURTAIN
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM 1
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
M460-R 4 V BOTTOM TOOL 1
275 (10,8”) MM HIGH STROKE 1
410 (16”) MM THROAT DEPTH 1
460 VOLTAGE, 3PH, 60HZ 1
LASER SAFE LIGHT GUARD 1
BACK SIDE SAFETY – DOOR WITH SWITCH 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD NARROW TABLE 1
QUICK RELEASE CLAMPING
