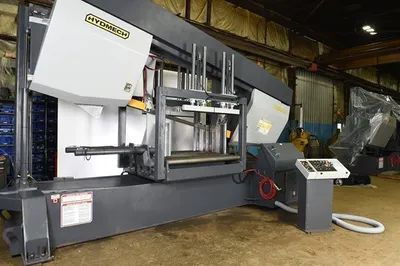

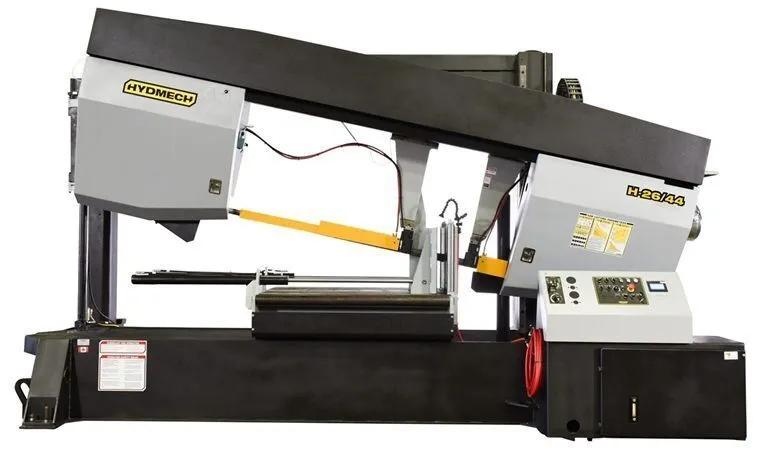

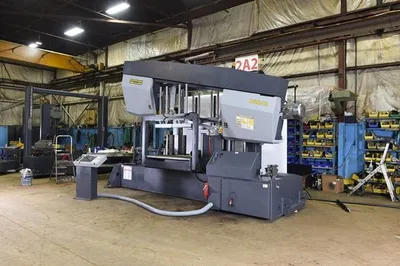

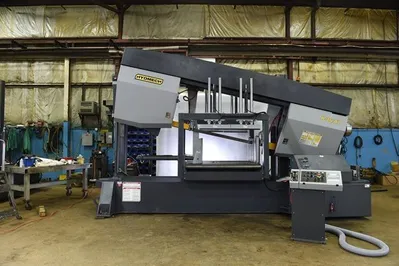

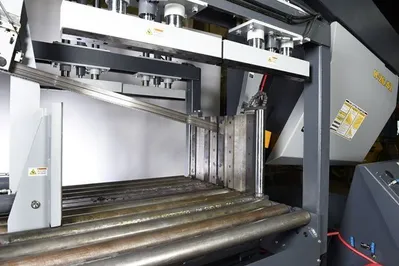

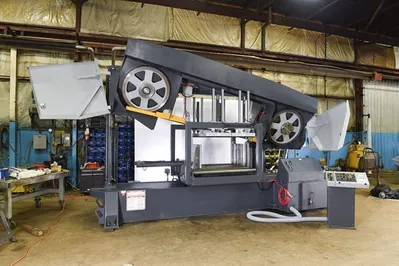

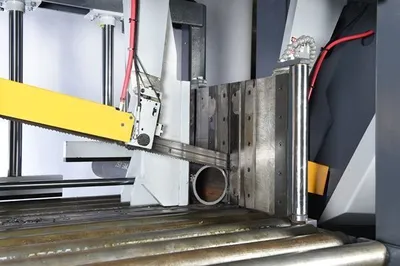

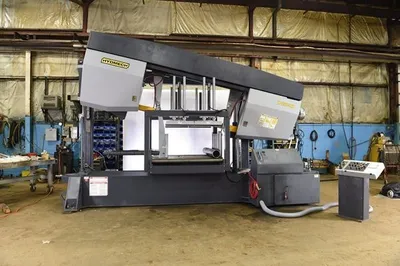

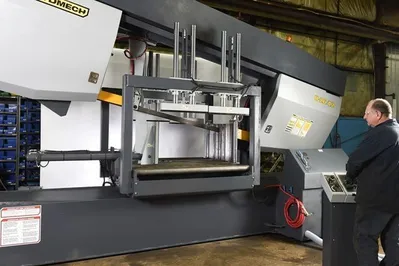

NEW HYD-MECH H-26/44

The H-26/44 is a semi-automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. Its 12° degree canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, and guide arm.
HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 26″H x 44″W capacity, 20 HP motor, and 2 5/8″ blade, the H-26/44 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Specifications (subject to buyer verification):
Capacity: 90°
Rectangular (h x w): 26” x 44”
Round: 29"
Square: 26"
Blade Size: 2 5/8” x 33’
Blade Drive: 20 HP
Machine Voltage: 208*, 240*, 480, 575* v *External transformer supplied at no charge
Blade Speed: 75-300 SFM
Hydraulic Drive: 5 HP
Hydraulic Tank Capacity: 9.5 Gallons
Coolant Tank Capacity: 50 Gallons
Table Height: 38"
Dimensions (W x L x H): 217” x 82” x 137”
Machine Weight: 21,000 lbs

Equipped With (subject to buyer verification):
Standard Machine Features:
• 12° canted head
• One piece design – no alignment necessary
• Steel guide arms.
• Hydraulic positive down feed
• 20 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Cast iron band wheels
• Semi-automatic PLC control
• High resolution feed rate valve allows for constant feed rate when cutting special alloys
• Replaceable blade brush
• Robust steel base
• Automatic chip removal auger
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hydraulic band tensioning with digital readout

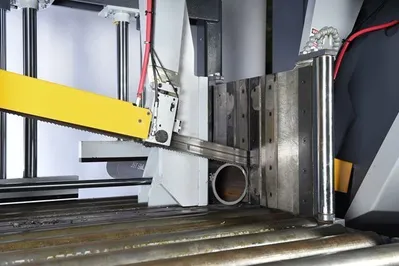

• Hydraulic carbide guide tensioning
• Hardened, replaceable wear plates
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light

Optional Machine Features:

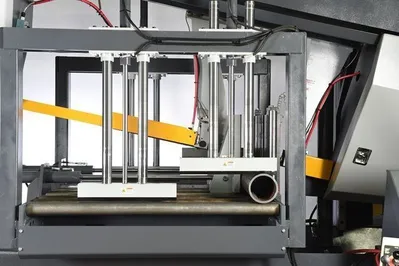

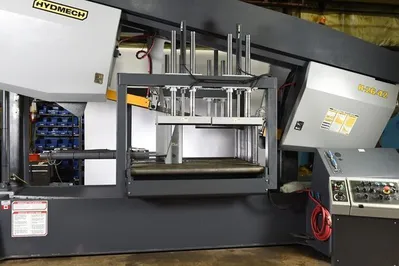

• Full capacity hydraulic overhead bundling - $8,800
• Remote console – 15’ cord - $5,600
• Mist lubrication - $2,200
• Outboard vise - $11,900
• Outboard vise bundling attachment - $7,700
