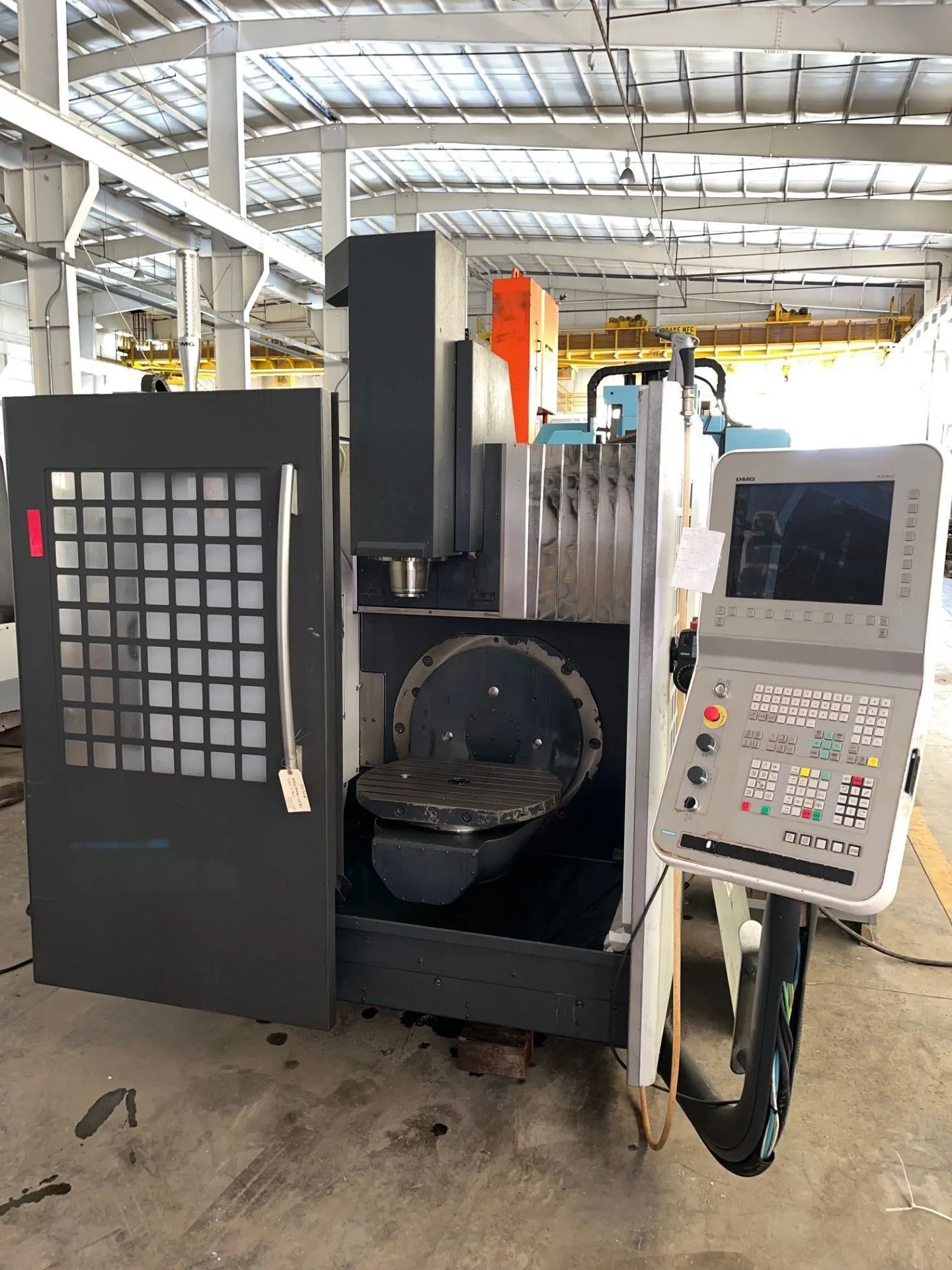

USED 2011 DMG GILDEMEISTER MORI-SEIKI DMU-50 ECO
Overview
Description
DMU-50 ECO DMG MORI-SEIKi GILDEMEISTER "ECOLINE" 5-AXIS CNC VERTICAL MACHINING CENTER - 2011 - 25" X 12" tilting rotary table - 16-posititon automatic tool changer - 8000 RPM spindle
Specifications
| X | 19.7" | 500.38 mm |
|---|---|---|
| Y | 17.7" | 449.58 mm |
| Z | 15.7" | 398.78 mm |
| Power | 17.5 hp | 13 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 24.8" | 629.92 mm |
| # Axis | 5 | 5 |
| Control | CNC (Siemens Sinumerik "810D" 5-Axis) | CNC (Siemens Sinumerik "810D" 5-Axis) |
| Weight | 8800 | 8800 |
DMU-50 ECO DMG MORI-SEIKi GILDEMEISTER "ECOLINE" 5-AXIS CNC
VERTICAL MACHINING CENTER
New 2011, Serial No 1536580119-A, Model DMU-50 ECO, Series Ecoline
EQUIPPED WITH:
Siemens Sinumerik "810D" 5-Axis CNC Control
24.7" x 19.7" Swiveling Rotary Table w/Digital Drives
16-Position Side-Mounted Tool Changer
8000 RPM Spindle Speed
Federal Pacific Transformer
Chip Conveyor
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 24.8" x 19.7"
Table Load Capacity 440 LBS
Longitudinal Travel (X-Axis) 19.7"
Cross Travel (Y-Axis) 17.7"
Vertical Travel (Z-Axis) 15.7"
Table Tilt Range (B-Axis) -5 to 110-DEGREES
Table Rotation (C-Axis) 360-DEGREES
Spindle Nose to Table 31"
Spindle Taper CAT 40
Spindle Speeds, Range 0 to 8000 RPM
Power Rapid Traverse, X, Y, Z-Axis' 472 IPM
Spindle Motor, Horsepower Rating 17.5 HP
Weight Approximately 8800 LBS
F.O.B. OUR WAREHOUSE
