USED KENNAMETAL SS100TCK719

Enhance your tooling setup with a used set of 4 KENNAMETAL SS100TCK719 extension shafts. Each shaft provides robust specs, including a 27 mm lock nut diameter and 182.575 mm overall length, ensuring precision for your projects.

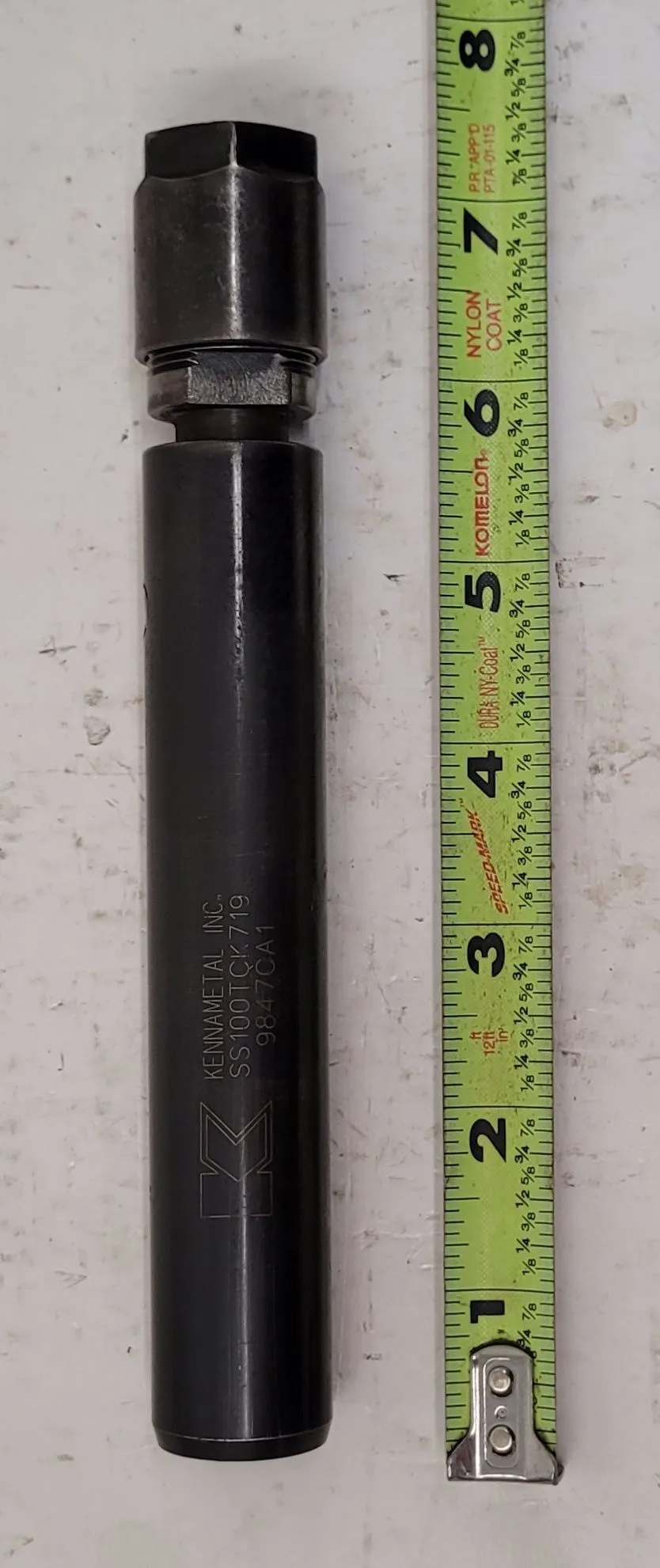

KENNAMETAL SS100TCK719 EXTENSION SHAFT - Set of 4

USED – SET OF 4
Diagram in photos for below specs:
Brand: Kennametal
Part Number: SS100TCK719
[D11] Lock Nut Diameter 27 mm
[L] Overall Length 182.575 mm
[LS] Shank Length 138.125 mm
[LTN] Slide Tension 14.22 mm
[LCM] Slide Compression 4.83 mm
[WF] Distance Across Flats 19.05 mm
Torque Catalog Foot Pounds 45
Weight Pounds 1.23
[D] Adapter / Shank / Bore Diameter 25.4 mm
