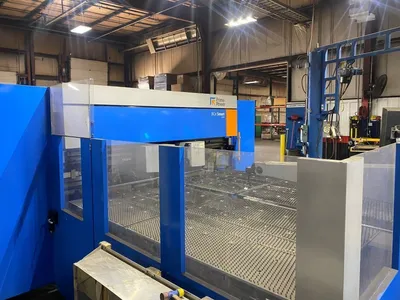

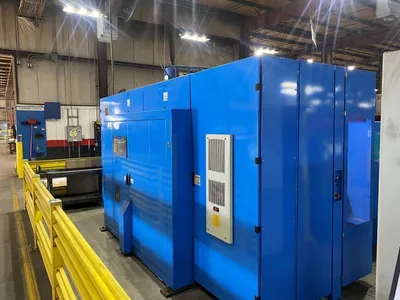

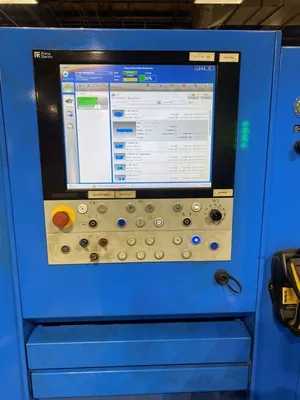

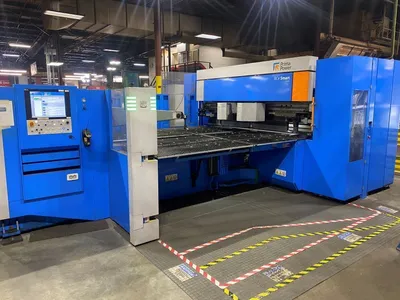

NEW 2018 PRIMA POWER BCE SMART 2220

2018 PRIMA POWER Panel Bender Model BCe Smart 2220 Servo-Electric Bending Cell
The BCe Smart bending cell is an innovative bending solution thanks to the “safety integrated” concept that allows the operator to focus only on value-added operations, aided by visual devices and sound signals. Its compact layout and combined loading and unloading sequence guarantee high productivity,
constituting a very important investment for anyone looking for a flexible and semi-automatic panel bender.

Condition
used
Maximum bending length 2250 mm
Minimum bending length (with re-entering bends) 350 mm
Minimum bending length (without re-entering bends) 215 mm
Minimum width between the bends 160 mm
Sheet length (minimum/maximum) 215 mm/2850 mm
Sheet width (minimum/maximum) 180 mm/1500 mm
Maximum panel diagonal 3000 mm
Maximum bending height 204 mm
Vertical distance between the blades 210 mm
Maximum re-entering bend 55 mm
Maximum acceptable planarity of the blank 10 mm
Bending force 32 Ton
Sheet clamping force 52 Ton
Maximum Material Thickness
Steel uts 410 n/mm² 2.5 mm Max Length / 3.00 mm Max
Stainless steel uts 680 n/mm² 1.8 mm Max Length / 2.00 mm Max
Aluminum uts 265 n/mm² 3.5 mm Max Length / 4.00 mm Max
Minimum Material Thickness
Minimum thickness 0.5 mm
Minimum external radius 1.5 / 2 times the thickness of the sheet
Bend 5 Times the thickness of the sheet Un
Electrics
Un 3 x 400V
In 3 x 43A
Frequency 60 Hz
Icu 10 kA
Full load current 85 A
