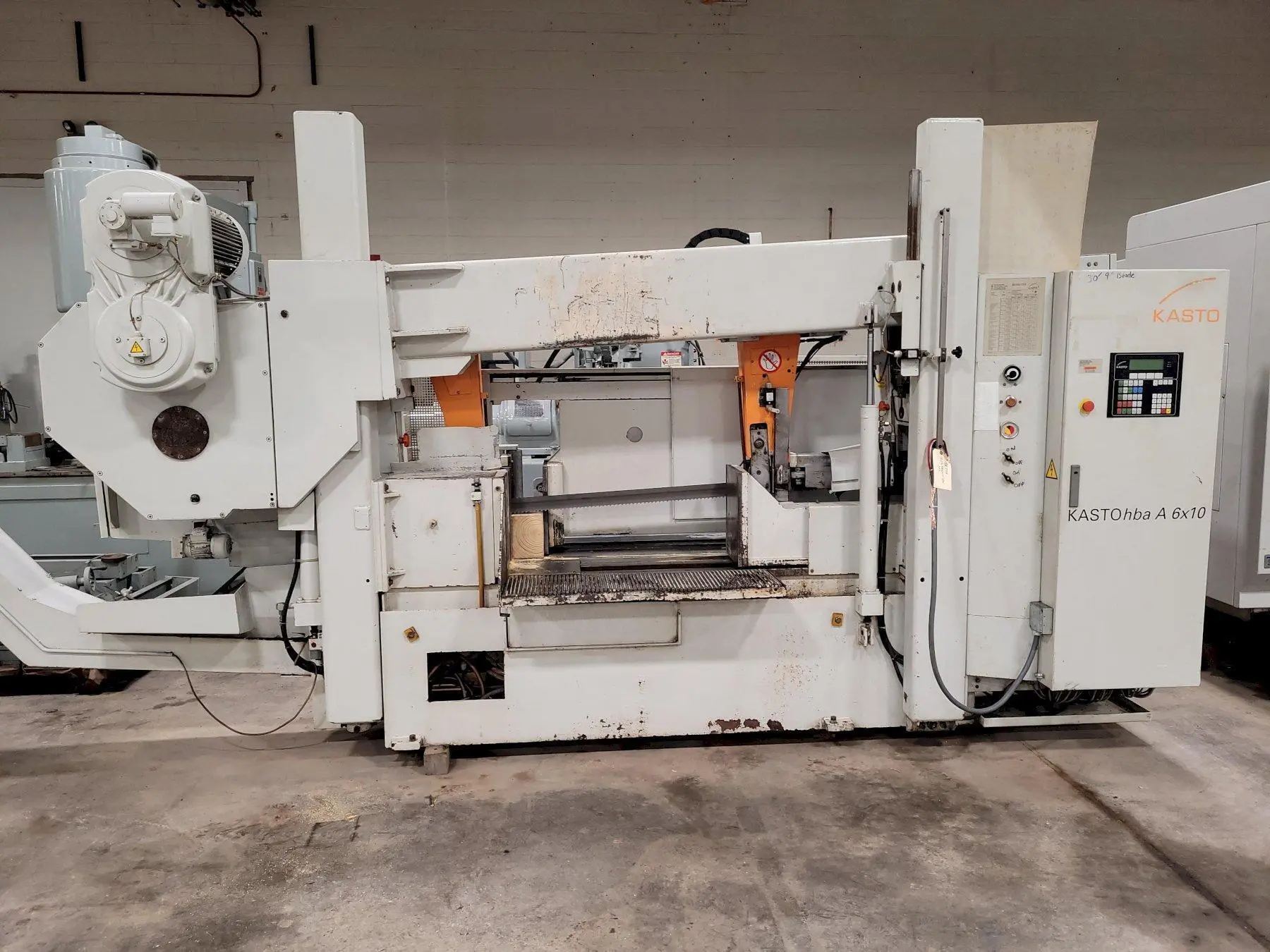

KASTO HBA-A6X10 horizontal band saw, model year 2000, in used condition. Ideal for precise, efficient cutting. Quality engineering from a renowned manufacturer.
| Rect-Cap (H) | 26" | 660.4 mm |
| Rect-Cap (W) | 41" | 1,041.4 mm |
| Rounds-Cap | 26" | 660.4 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 2.5" | 63.5 mm |
| Blade Thickness | 0.006" | 0.1524 mm |
| Blade Length | 369" | 9,372.6 mm |
| Weight | 15000 LBS | 15000 LBS |
26" X 41" KASTO HBA-A6X10 FULLY AUTOMATIC HORIZONTAL BAND SAW TYPE HBA660/1060AU
SPECIFICATIONS:
Capacity (Round): 26" Diameter
Capacity (Rectangular): 26" X 41"
Blade Size: 369" X 2.5" X .006"
Blade Speed (Variable): 55 TO 295 FPM
Feed Length Per Single Stroke: 19.6"
Multiple Index: 9
Maximum Feed Length: 177"
Material Support Height: 27.5"
Blade Drive Motor: 10 HP (7.5 KW) 440/3/60
Total Power: 17 KW (35 AMPS)
Approximate Weight: 15,000 LBS
EQUIPPED WITH:
Programmable Control
Twin Post Design
Variable Speed
Heavy Frame Hydraulic Vise
Blade Brush
Chip Conveyor
Infeed Roller Track
Adjustable Guide
12' Roller Conveyer
Coolant Unit
