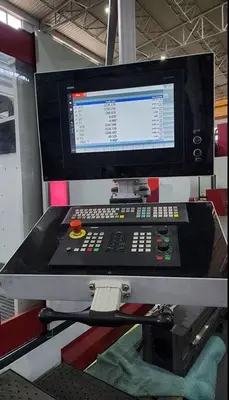

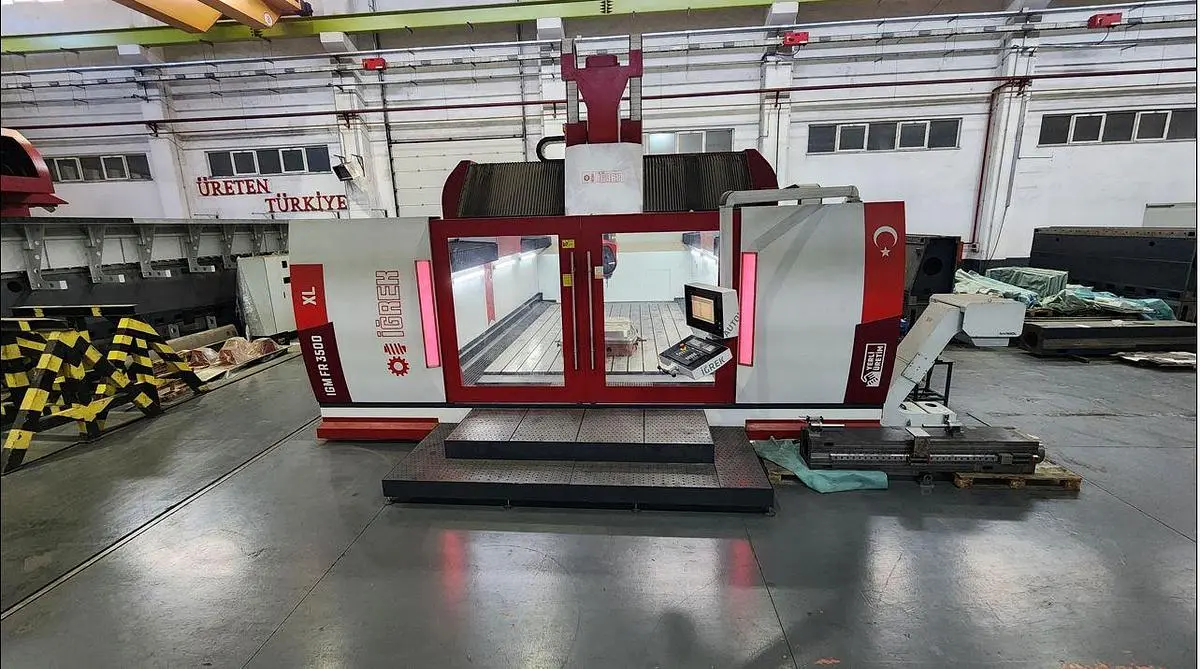

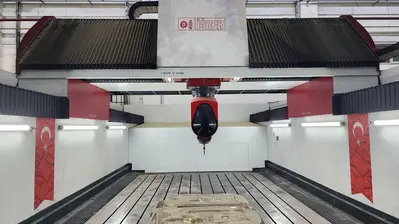

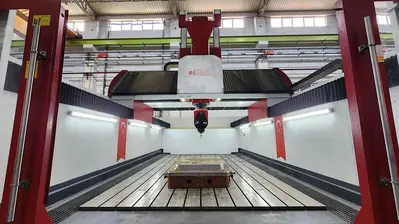

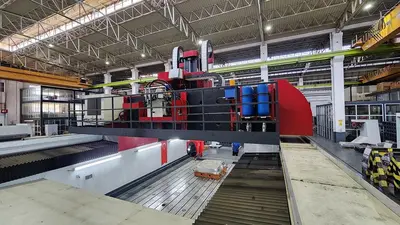

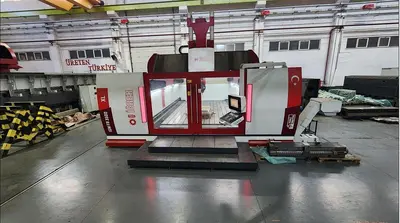

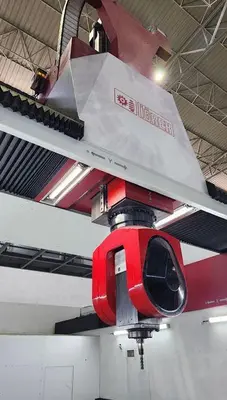

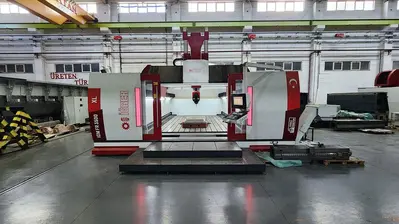

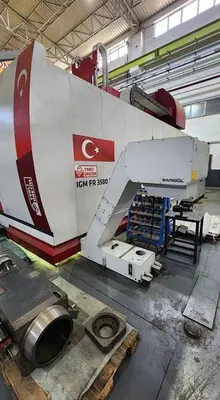

NEW MACHINEThe IGREK 3500 XL is a CNC 5-axis portal milling machine of the latest generation, developed for the high-precision machining of large components. Built in 2025, it is ready for immediate use and equipped with the latest technology to meet the most demanding requirements in heavy industry and mechanical engineering.Main Features:Siemens SINUMERIK 840D CNC ControlLarge machining areas: With travel distances of 6,500 mm (X), 3,500 mm (Y), and 1,400 mm (Z), the machine offers exceptional flexibility for machining large parts.5-axis Simultaneous machining: The A-axis with +/- 115° and the C-axis with 360° guarantee maximum precision and versatility when machining complex workpieces.Powerful spindle: Equipped with a speed of up to 12,500 rpm, a maximum torque of 235 Nm and a drive power of 54 kW – ideal for high-performance machining.Robust and durable: With a weight of 195 tons and a table load capacity of up to 4,000 kg, the machine is designed for heavy-duty machining.Innovative tool holder: The HSK-A100 tool holder enables quick tool changes and increases efficiency.Speed and efficiency: Rapid traverse speeds of 30 m/min in all axes ensure maximum productivity. IGEK machine tool boasts high stability, rigidity, and precision thanks to its monoBLOCK design. Our design utilizes the finite element method for dynamic, static, stress, vibration, and fatigue analyses, and production is planned accordingly.Made entirely of GG30 cast materialStable structure with Monoblock Cast Body that eliminates the need for a large foundation5 Axis Machining Head, 12,500 RPM, 235 Nm torquePrecision and usage norms comply with CE, VDI-DGQ 3441 and ISO standardsTechnical data at a glance:Travel distances: X 6,500 mm / Y 3,500 mm / Z 1,400 mm Spindle power: 54 kWSpindle speed: 12,500 rpm Machine dimensions (L x W x H): 11,500 x 7,400 x 6,600 mmWeight: 120 tons

Specifications

Manufacturer: Igrek
Model: 3500 XL
Year: 2025
Condition: Used
Stock Number: 5654241
Spindle speeds: 12,500 rpm
X axis travel: 6,500 mm
Y axis travel: 3,500 mm
Z axis travel: 1,400 mm
Rapid Feed X/Y/Z: 30 m/min
Positioning accuracy: 0.012 mm
Repeatability accuracy: 0.010 mm
Spindle taper: HSK-A 100
A axis: ±115°
C- axis: 360°
Max torque: 235 Nm
Spindle power: 54 kW
Machine dimensions: 11.5 x 7.4 x 6.6 m
Machine weight: 120 Ton
