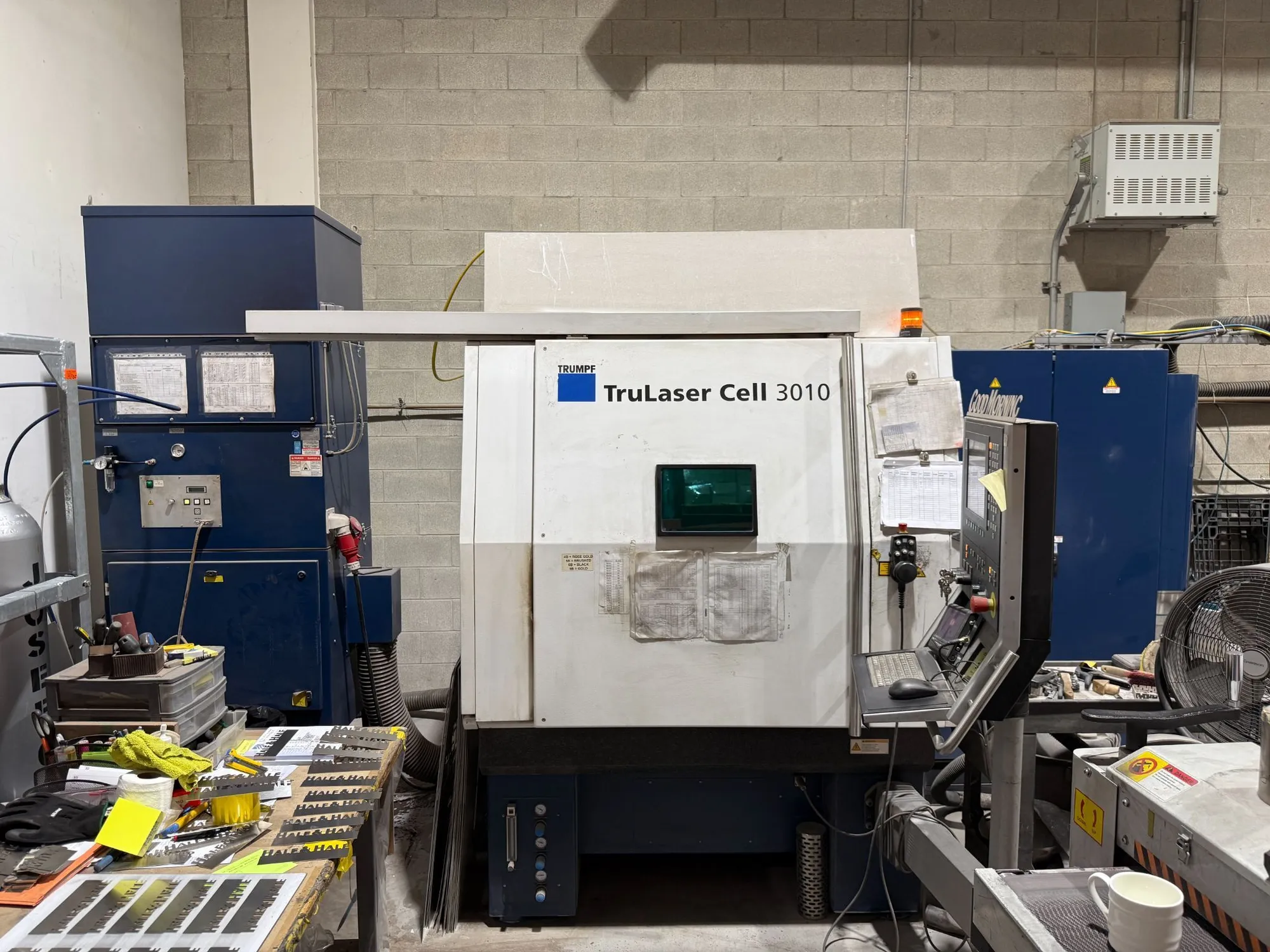

USED 2012 TRUMPF TRULASER CELL 3010

2012 TRUMPF TRULASER CELL 3010 L33 WITH TRUDISK 1000

Manufacturer: Trumpf
Model: TRULASER CELL 3010 (L33)
Mfg Date: 2012

POWER: 380-460v 50/60hz

Wavelength: 1070 ± 10 nm
Axes: 5‑axis (X/Y/Z + B ±120° + C continuous)
Linear Accuracy: ± 0.015 mm
Rotary (B axis) Accuracy: ± 0.02°
Speed (X/Y/Z): 50/50/30 m/min
Rotary Speeds (B / C axis): ~120 min⁻¹ / ~750 min⁻¹
Working Dimensions (XYZ): 1000 × 500 × 400 mm
Electrical Load: 2 kW
Fuse Rating: 3 × 16 A

*OEM monitor replaced with 3 party monitor -works perfectly*

**INCLUDED**
RIEDEL CHILLER
TRUMPF TRUDISK 1000
TRUMPF ELECTRICAL CABINET
AIR EXTRACTOR

Weight: 2400 Kg
Machine Dimensions: 95'' X 105'' X 100''
